Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The security controller currently on the vehicle will be transferred to the replacement center console. This will allow the vehicle/keys to function without the need for reconfiguration.
  1. Remove the center console assembly. See CENTER CONSOLE (REMOVE AND INSTALL) .

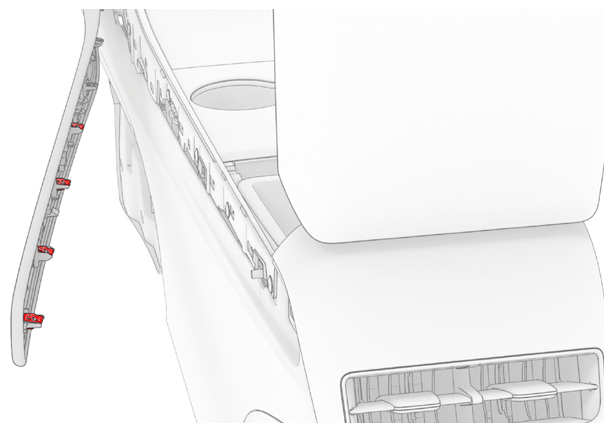

  2. Release the clips (x4) that attach the rear of the LH decor trim to the center console assembly
    G14824419Courtesy of TESLA, INC.

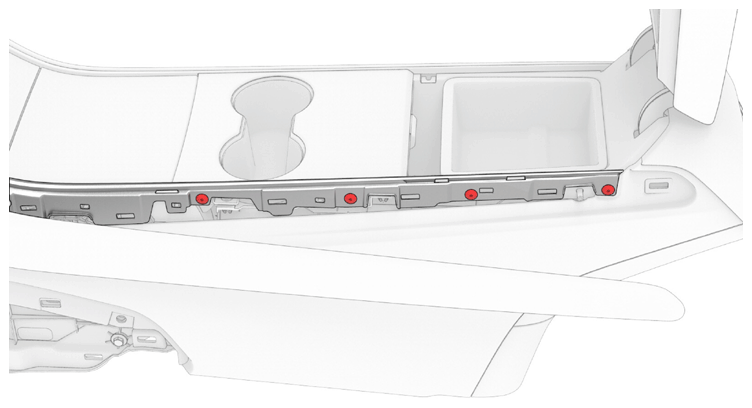

  3. Remove the screws (x4) that attach the rear of LH center console bright strip to the center console assembly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G14824420Courtesy of TESLA, INC.

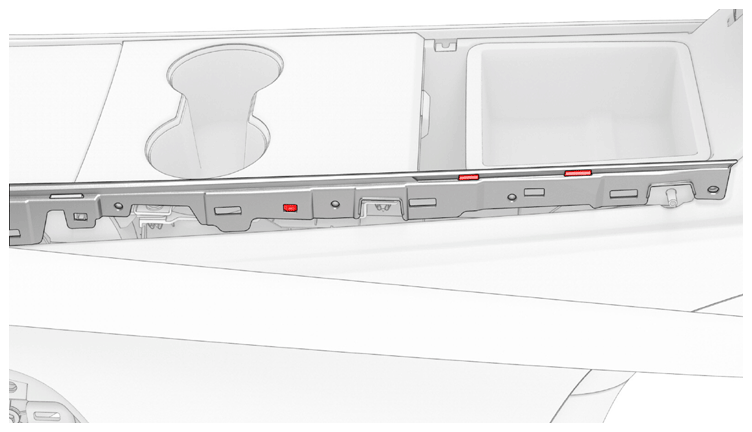

  4. Release the tabs (x3) that attach the rear of the LH center console bright strip to the center console assembly, and then partially release the bright strip from the assembly.
    G14824421Courtesy of TESLA, INC.
  5. Repeat the step  2 through step  4 for the RH side of the center console.
  6. Release the clips (x6) that attach the cup holder decor panel to the cup holder assembly, and then separate the cup holder decor panel from the center console assembly.
    G14824422Courtesy of TESLA, INC.

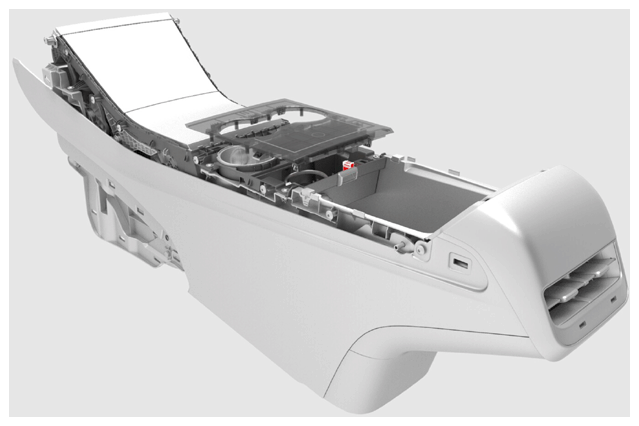

  7. Disconnect the electrical connector from the security body controller module, and then remove the cup holder decor panel from the vehicle.
    G14824423Courtesy of TESLA, INC.

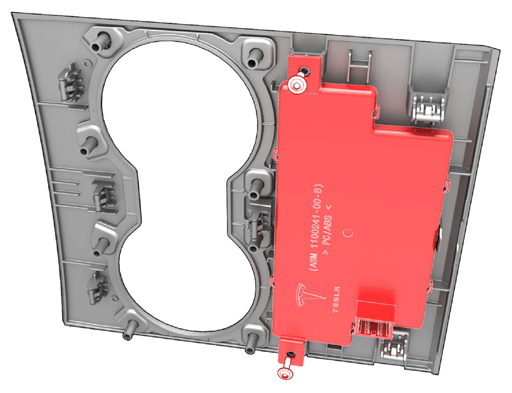

  8. Remove the screws (x2) that attach the security body controller module to the cup holder decor panel, and then remove the security body controller module from the panel.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G14824424Courtesy of TESLA, INC.
  9. Repeat step  2 through step  7 for the new center console assembly.
