ABS Modulator Assembly - Remove And Replace: Removal

  1. Position the vehicle on a lift but do not lift it at this time.
  2. Recover refrigerant from the vehicle A/C Refrigerant Recovery And Recharge (Remove And Replace) .
  3. Remove the HEPA filter duct Duct - HEPA Filter (Remove And Replace) .
  4. Disconnect 12V power Disconnect 12V Power .
  5. Move the coolant reservoir out of the working area:
    1. Make sure that the reservoir cap is fully attached.

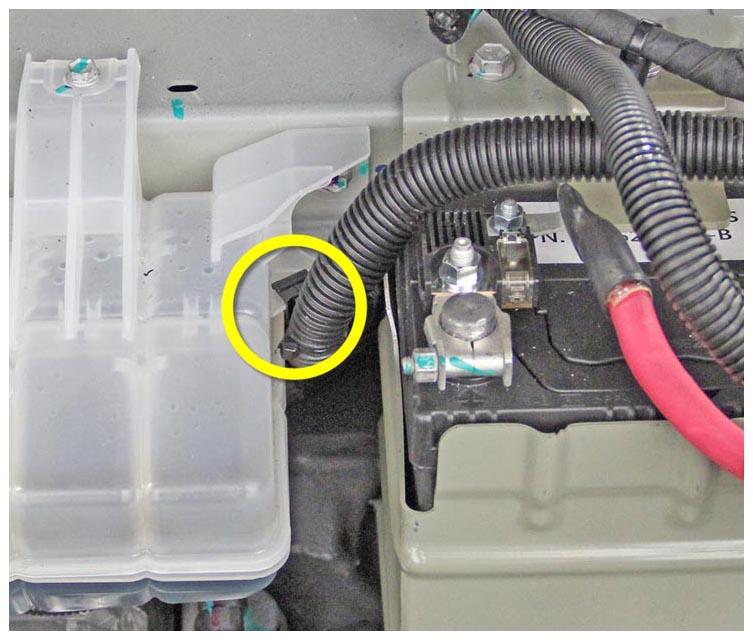

    2. Release the 12V harness clip from the coolant reservoir.
      G15207262Courtesy of TESLA, INC.

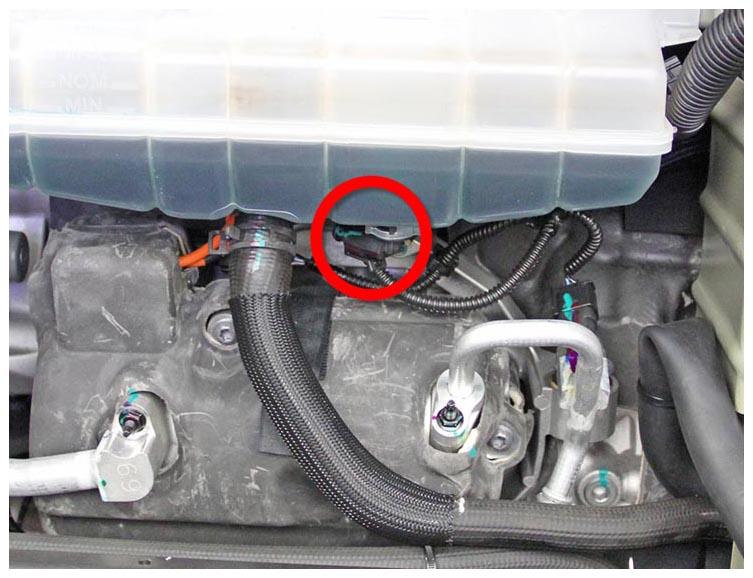

    3. Disconnect the coolant fluid level sensor electrical connector.
      G15207263Courtesy of TESLA, INC.

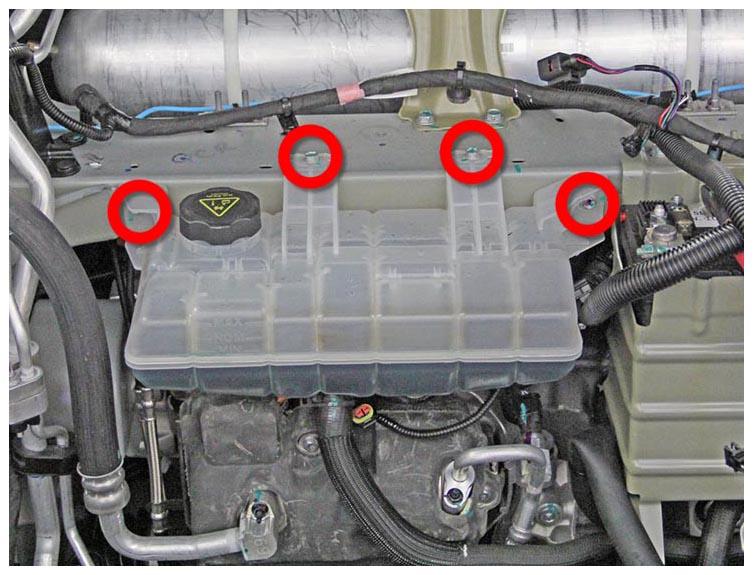

    4. Remove the bolts (x4) that attach the coolant reservoir to the front crossmember (torque 6 N.m).
      G15207264Courtesy of TESLA, INC.

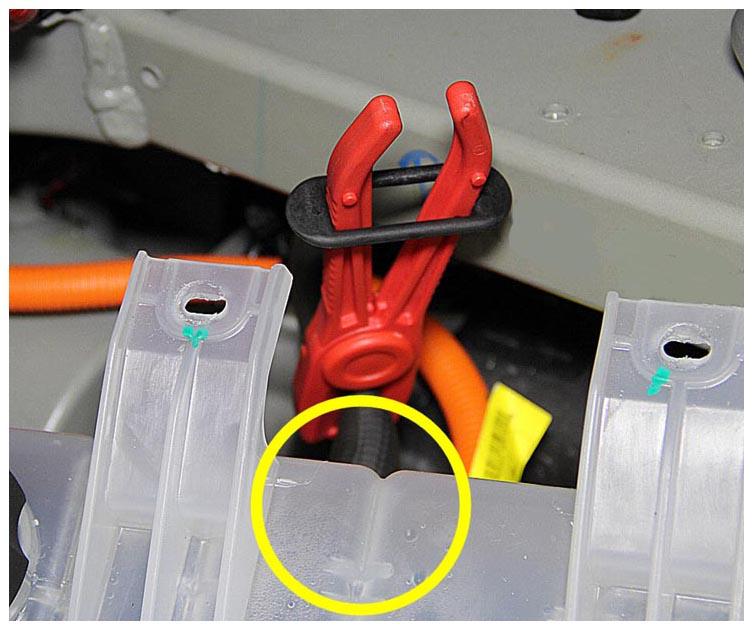

    5. Clamp the coolant hose at the rear of the coolant reservoir.
      G15207265Courtesy of TESLA, INC.

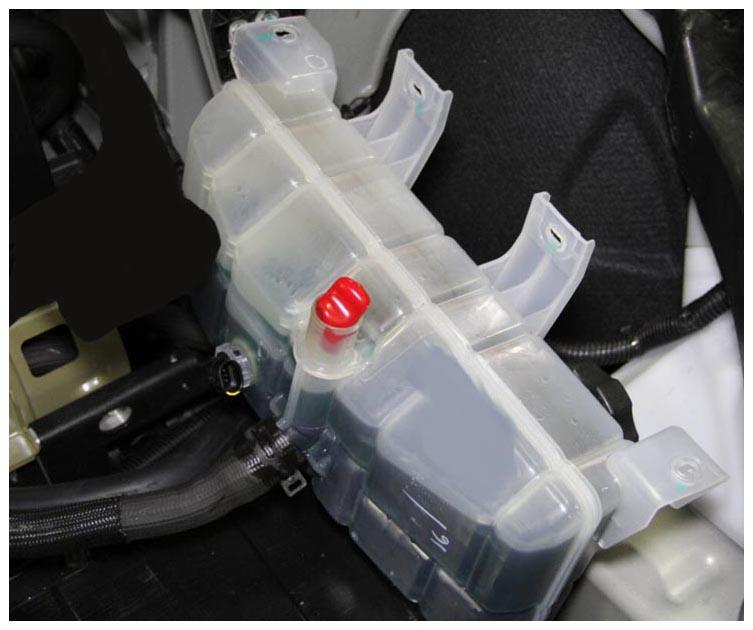

    6. Release the locking ring that attaches the hose to the coolant reservoir. Release the coolant hose from the nipple on the reservoir.
    7. Plug the coolant hole then carefully move the reservoir to the LH side of the front trunk.
      G15207266Courtesy of TESLA, INC.

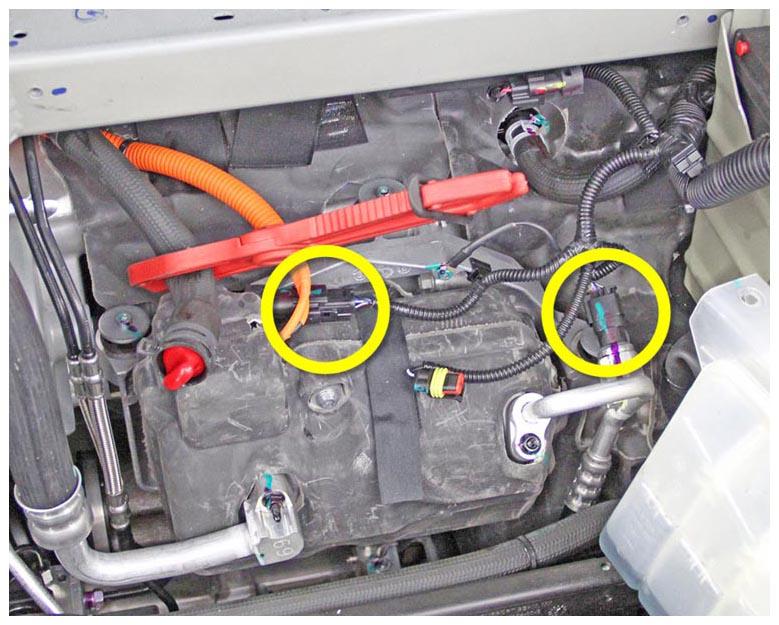

  6. Disconnect the electrical connector from the A/C compressor and the electrical connector from the high pressure pipe.
    G15207267Courtesy of TESLA, INC.

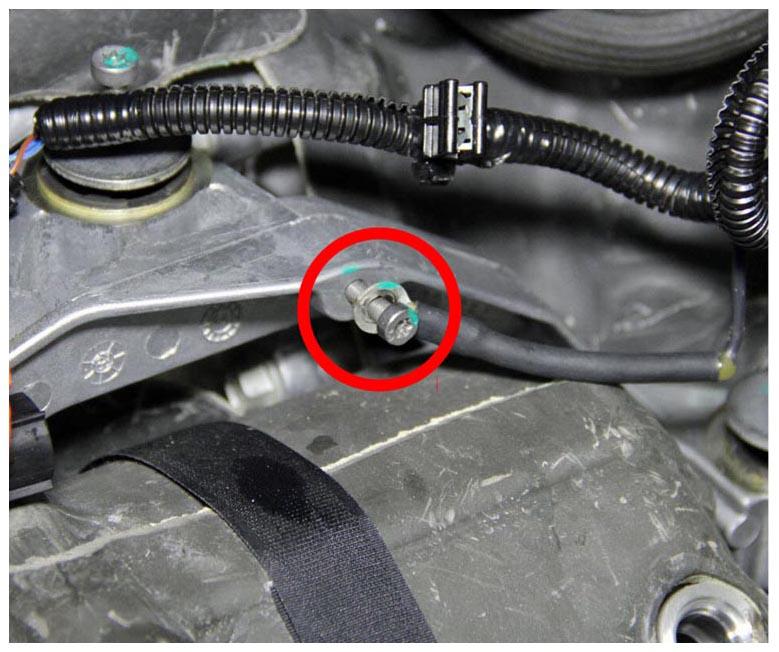

  7. Release the edge clip that attaches the 12V harness to the compressor bracket.
  8. Remove the screw that attaches the ground strap to the compressor bracket (torque 8 N.m).
    G15207268Courtesy of TESLA, INC.

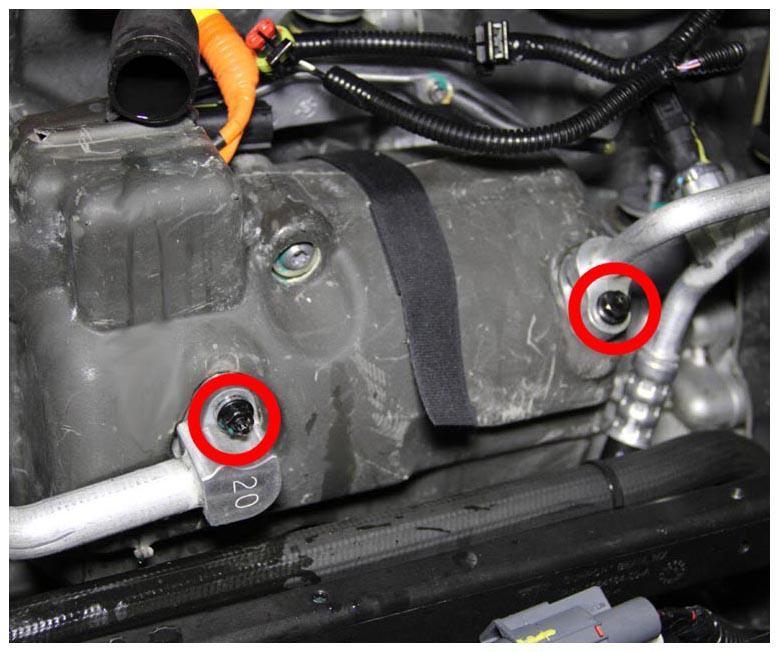

  9. Release the nuts (x2) that attach the A/C lines to the compressor (torque 10 N.m).
    G15207269Courtesy of TESLA, INC.

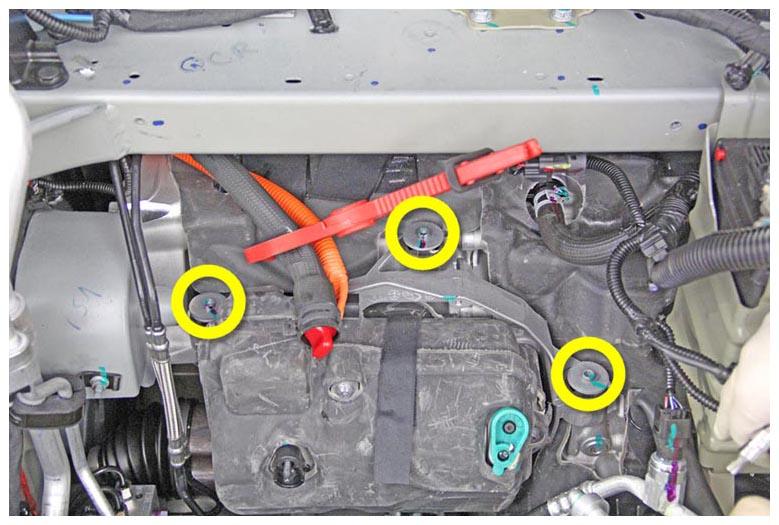

  10. Have an assistant support the compressor. Release the bolts (x3) that attach the A/C compressor bracket to the front drive unit (torque 10 N.m).
    G15207270Courtesy of TESLA, INC.

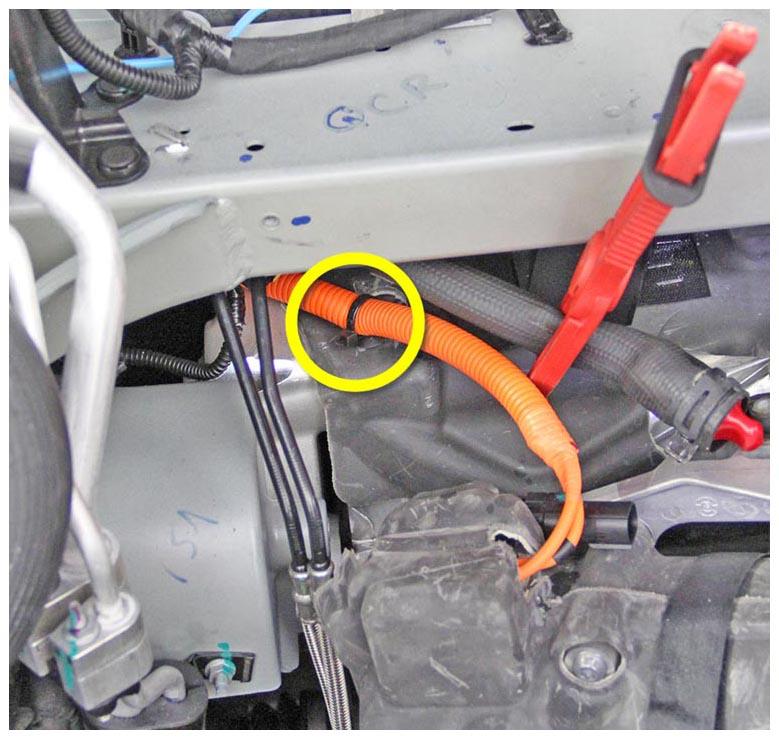

  11. Release the push clip that attaches the A/C compressor HV cable to the body of the vehicle.
    G15207271Courtesy of TESLA, INC.
  12. Carefully move the A/C compressor to the RH side of the front trunk.

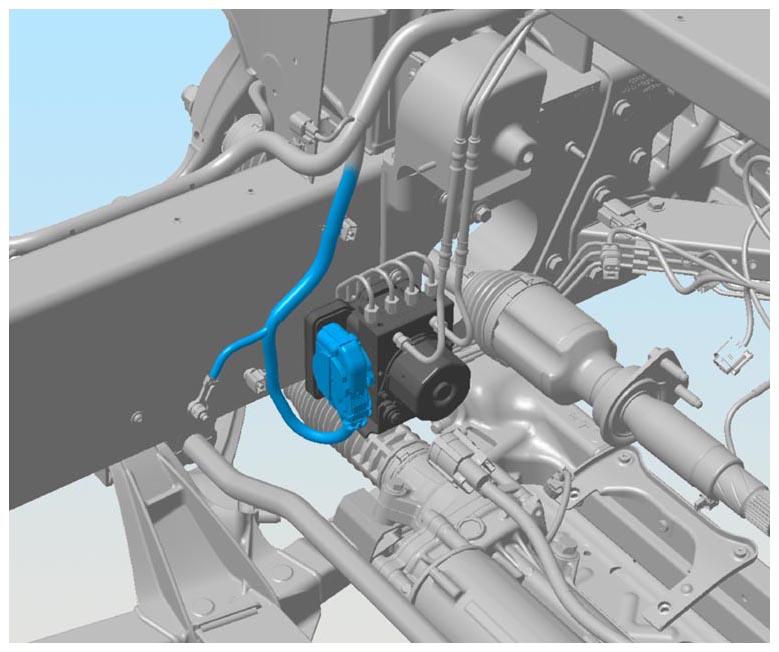

  13. Disconnect the ABS modulator electrical connector.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15207272Courtesy of TESLA, INC.

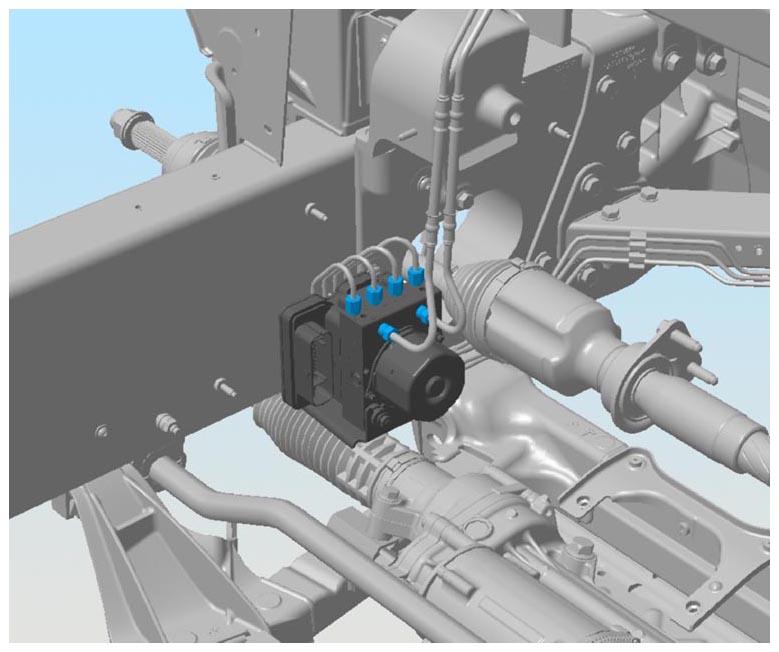

  14. Use a flare wrench to release the brake pipes (x6) from the ABS modulator (torque 23 N.m).
    CAUTION: Plug pipe connections to prevent ingress of moisture or dirt.
    NOTE: Place suitable absorbent material around the affected area to absorb any possible fluid spillage.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15207273Courtesy of TESLA, INC.
  15. Raise and support the vehicle Raise Vehicle - 2 Post Lift .

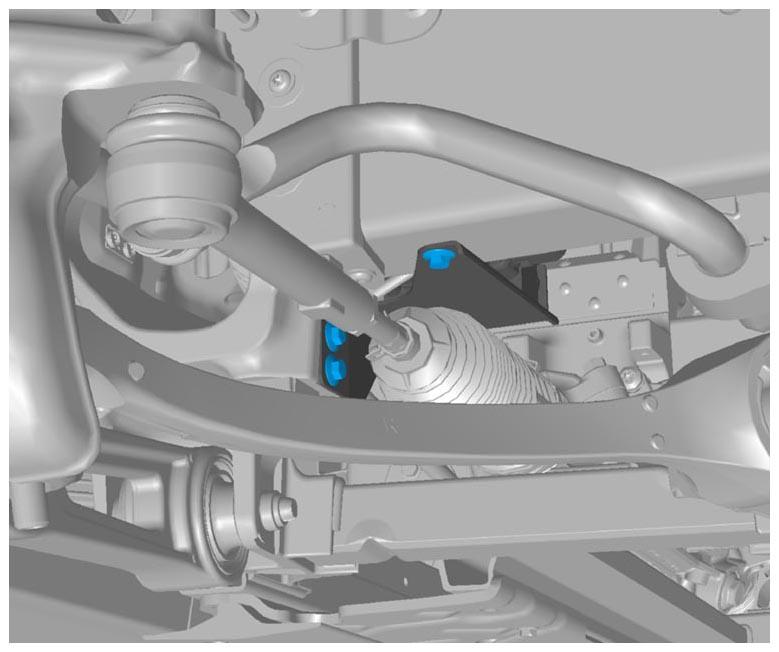

  16. Remove the bolts (x3) that attach the ABS modulator bracket to the body of the vehicle (torque 5 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15207274Courtesy of TESLA, INC.
  17. Lower the vehicle.
  18. Remove the ABS modulator and mounting bracket from the vehicle.

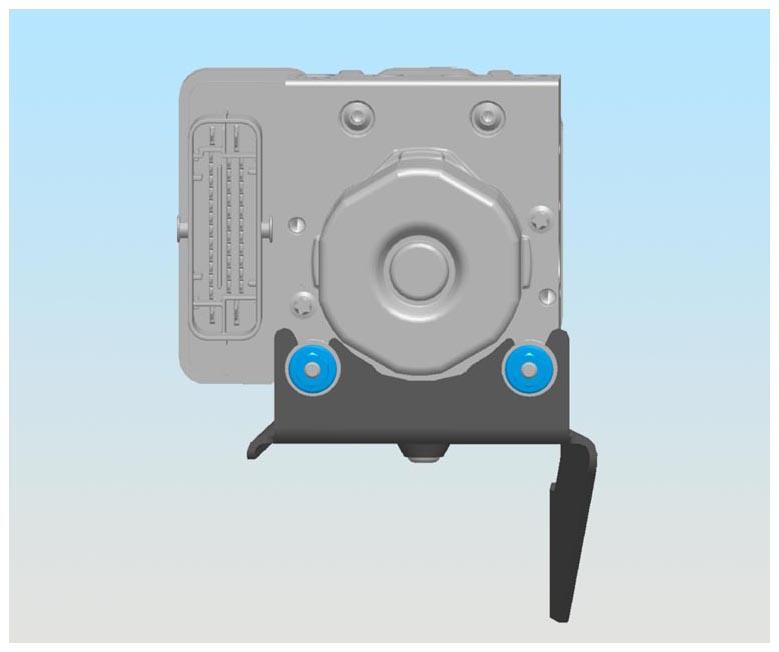

  19. Remove the nuts that attach the ABS modulator to the bracket (torque 8 N.m). Release the ABS modulator from the bracket.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15207275Courtesy of TESLA, INC.
