Radar - Interior - Remove And Replace: Install

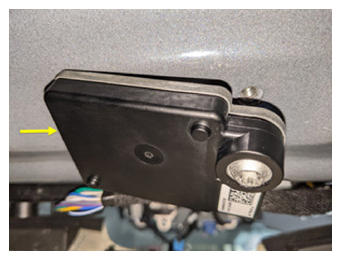

  1. Position the interior radar into the vehicle, and then secure the clip that attaches the radar to the body.
    G15091848Courtesy of TESLA, INC.

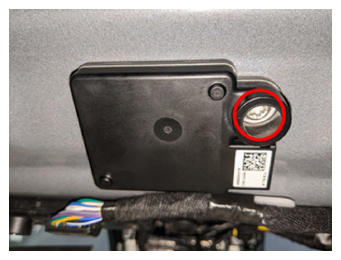

  2. Install the bolt that attaches the interior radar to body.

    9 N.m (6.6 ft-lbs)

    NOTE: The bolt is captive inside radar housing.

    Tip: Use of the following tool(s) is recommended:

    • T30 socket
    G15091849Courtesy of TESLA, INC.

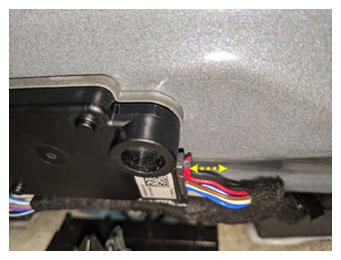

  3. Connect the interior radar assembly, and then engage the locking tab.

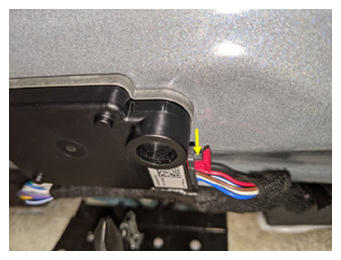

    G15091850Courtesy of TESLA, INC.
    G15091851Courtesy of TESLA, INC.

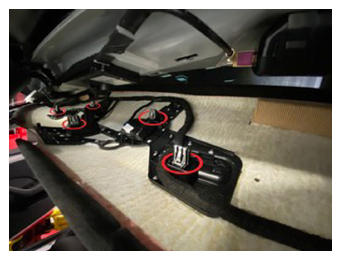

  4. Secure the clips (x5) that attach the front of the headliner to the vehicle.
    G15091852Courtesy of TESLA, INC.
  5. Install the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  6. Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  7. Install the front passenger visor. See Sun Visor - LH (Remove and Replace) .
  8. Instal the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  9. Install the RH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  10. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  11. Repeat step  7 through step  10 for the RH side of the vehicle.
  12. Install the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace) .
