Sensor - Radar - Front - Remove And Replace: Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
  2. Release front radar connection.
    NOTE: 1x connector.

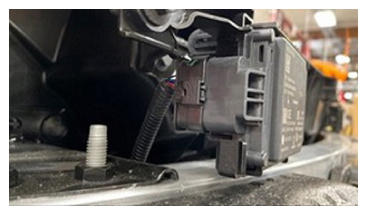

    G15091891Courtesy of TESLA, INC.

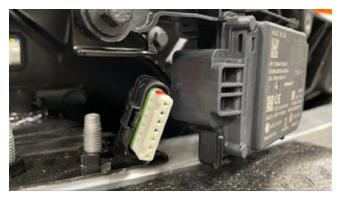

    G15091892Courtesy of TESLA, INC.
  3. Release front radar from bracket.
    NOTE: 2x tabs, Release top tab to remove radar.

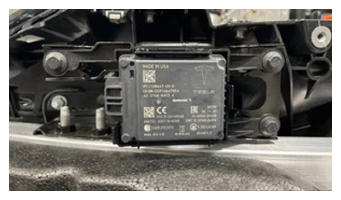

    G15091893Courtesy of TESLA, INC.

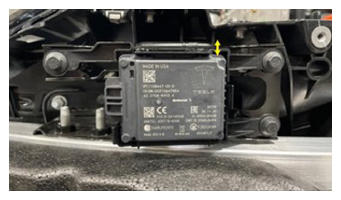

    G15091894Courtesy of TESLA, INC.

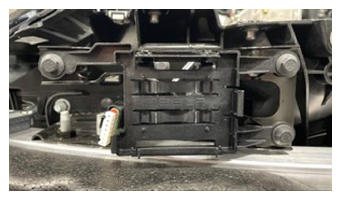

    G15091895Courtesy of TESLA, INC.
