Puddle Light - Liftgate - Remove And Replace: Install

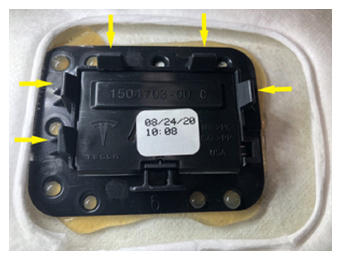

  1. Position the liftgate puddle lamp to the lower liftgate trim, and then secure the holding tabs (x5) that attach the puddle lamp to the trim.
    G15092143Courtesy of TESLA, INC.

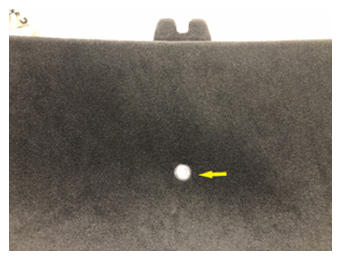

  2. Install the liftgate puddle lamp cover onto the liftgate puddle lamp.
    G15092144Courtesy of TESLA, INC.
  3. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace)
