Puddle Light - Liftgate - Remove And Replace: Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace)
  2. Release the tabs (x3) that attach the liftgate puddle lamp cover to the liftgate puddle lamp, and then remove the cover from the puddle lamp.

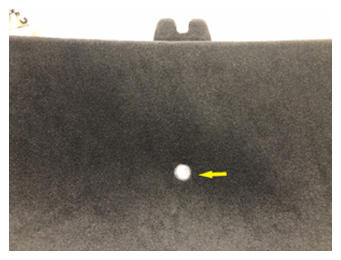

    G15092140Courtesy of TESLA, INC.

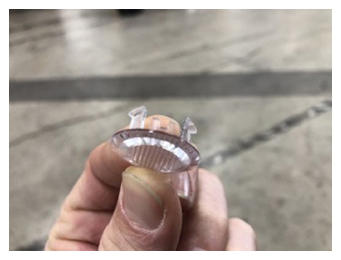

    G15092141Courtesy of TESLA, INC.
  3. Release the holding tabs (x5) that attach the liftgate puddle lamp to the lower liftgate trim, and then remove the puddle lamp from the trim.

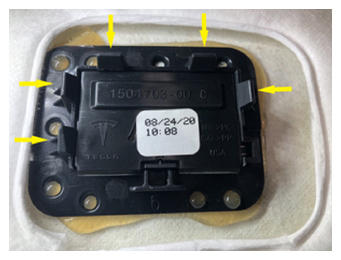

    G15092142Courtesy of TESLA, INC.
