Windshield Repair Guidelines

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

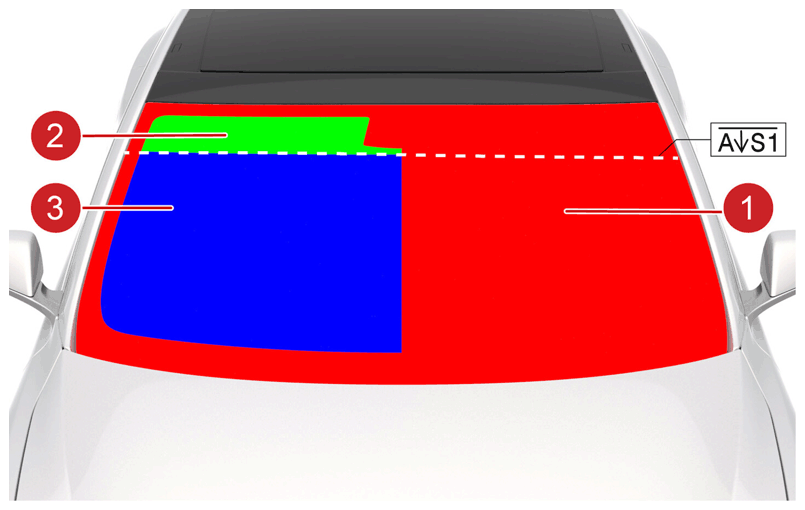

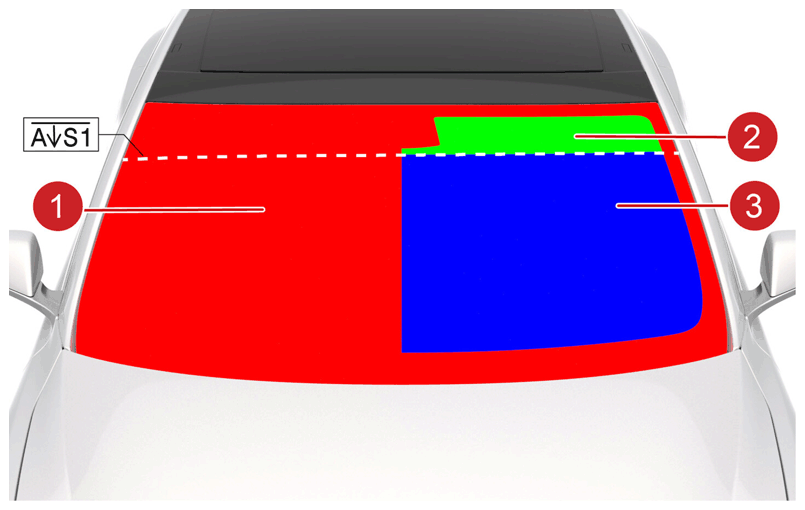

The criteria to determine if a windshield is repairable or if the windshield must be replaced are based on both the severity and the location of the damage. If allowed, the repair process will remove air from the damaged area, either by vacuum or displacement, and fill the break with resin. See "Common Damage Types " for description of commonly occurring types of damage, and use the images and information below to determine if a windshield may be repaired or if replacement is required.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Windshield Area	Allowed Repairs
Area 1 (shown in red in the images above) No repairs are allowed in area 1, which includes: The Frit area (the painted area along the outer edges of the windshield). The camera FOV (field of view) plus 25 mm of the surrounding windshield. The passenger side of the windshield.	Repairs allowed in area 1: None; if the windshield is damaged in this area, it must be replaced.
Area 2 (shown in green in the images above) Repair area 2 is a curved area from the edge of the upper Frit area down to the AS1 line (155 mm below the edge of the upper Frit area). NOTE: Repair area 2 is only on the driver side of the windshield (as shown above); the passenger side of the windshield is not repairable.	Repairs allowed in area 2: Cracks shorter than 50 mm in the exterior layer of glass. Chips less than 50 mm wide in the exterior layer of glass. CAUTION: If there is damage to the inner layer of glass, the windshield is not repairable, and it must be replaced. No other repairs are allowed. If the windshield is damaged more than described above, it must be replaced. CAUTION: A maximum of three repairs of any kind may be performed on any windshield. If a fourth repair is required, the windshield must be replaced.
Area 3 (shown in blue in the images above) Repair area 3 is the area below the AS1 line and going down to the upper edge of the bottom Frit area (652 mm). NOTE: Repair area 3 is only on the driver side of the windshield (as shown above); the passenger side of the windshield is not repairable.	Repairs allowed in area 3: Rock chips, if the perforation is only in the exterior layer of glass. Spherical damage up to 5 mm diameter, if the perforation is only in the exterior layer of glass. Cracks 5 mm or less in length, if the crack is only in the exterior layer of glass. CAUTION: If there is damage to the inner layer of glass, the windshield is not repairable, and it must be replaced. No other repairs are allowed. If the windshield is damaged more than described above, it must be replaced. CAUTION: A maximum of three repairs of any kind may be performed on any windshield. If a fourth repair is required, the windshield must be replaced.

Windshield Area

Allowed Repairs

Area 1 (shown in red in the images above)

No repairs are allowed in area 1, which includes:

The Frit area (the painted area along the outer edges of the windshield).
The camera FOV (field of view) plus 25 mm of the surrounding windshield.
The passenger side of the windshield.

Repairs allowed in area 1:
None; if the windshield is damaged in this area, it must be replaced.

Area 2 (shown in green in the images above)

Repair area 2 is a curved area from the edge of the upper Frit area down to the AS1 line (155 mm below the edge of the upper Frit area).

NOTE: Repair area 2 is only on the driver side of the windshield (as shown above); the passenger side of the windshield is not repairable.

Repairs allowed in area 2:

Cracks shorter than 50 mm in the exterior layer of glass.
Chips less than 50 mm wide in the exterior layer of glass.

CAUTION: If there is damage to the inner layer of glass, the windshield is not repairable, and it must be replaced.

No other repairs are allowed. If the windshield is damaged more than described above, it must be replaced.

CAUTION: A maximum of three repairs of any kind may be performed on any windshield. If a fourth repair is required, the windshield must be replaced.

Area 3 (shown in blue in the images above)

Repair area 3 is the area below the AS1 line and going down to the upper edge of the bottom Frit area (652 mm).

NOTE: Repair area 3 is only on the driver side of the windshield (as shown above); the passenger side of the windshield is not repairable.

Repairs allowed in area 3:

Rock chips, if the perforation is only in the exterior layer of glass.
Spherical damage up to 5 mm diameter, if the perforation is only in the exterior layer of glass.
Cracks 5 mm or less in length, if the crack is only in the exterior layer of glass.

CAUTION: If there is damage to the inner layer of glass, the windshield is not repairable, and it must be replaced.

No other repairs are allowed. If the windshield is damaged more than described above, it must be replaced.

CAUTION: A maximum of three repairs of any kind may be performed on any windshield. If a fourth repair is required, the windshield must be replaced.
