Subframe Assembly - Front - Remove And Install: Install
WARNING: This page is about a different car, the 2024 Tesla Model X, 2023 Tesla Model X, 2022 Tesla Model X, and 2021 Tesla Model X. However, it is still accessible from the selected car via links, so may be relevant.

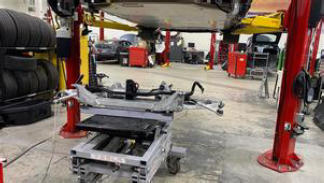

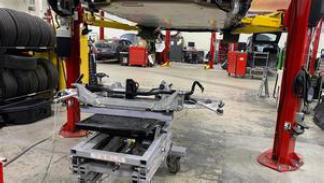

- Move the subframe lifting tool and front subframe in to under the vehicle.

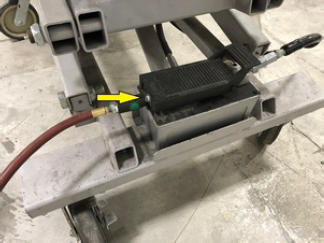

- Connect the shop supply air to the subframe lifting tool.
- With the help of an assistant, carefully raise the front subframe into the vehicle.NOTE: Hold the knuckles aside, and guide the active damper forks around suspension links.

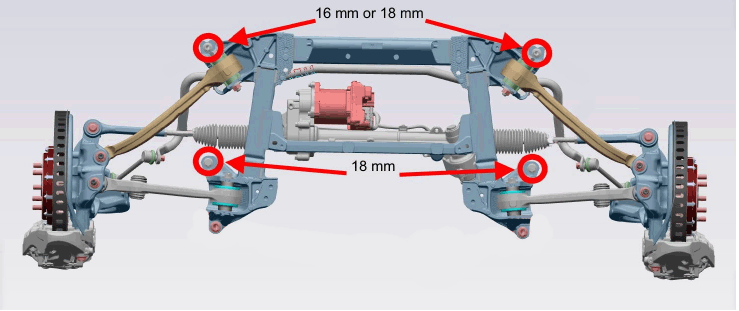

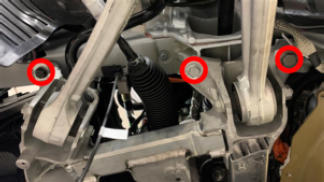

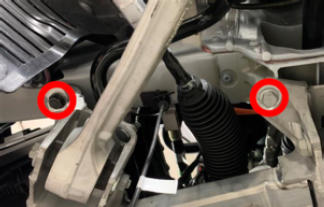

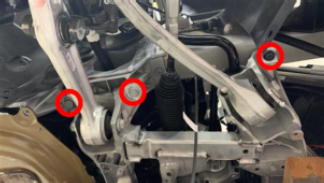

- Hand-tighten the bolts located at the front of the front subframe.NOTE: Depending on the vehicle manufacture date, the front-most bolts might be as follows (16 mm or 18 mm):
- M12 1.75 x 75 bolt (1063242-00-B) and M12 x 24 x 2.5 washer (1103852-00-A)
- M12 1.75 x 115 bolt (1608611-00-C)

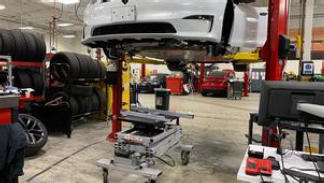

NOTE: Hand-tighten the bolts, and then use a battery powered drill to continue fastening the bolts. Do not tighten fully. Fully tighten the bolts at later step. - Lower the subframe lift, disconnect the shop supply air, and move the lift out from under the vehicle.

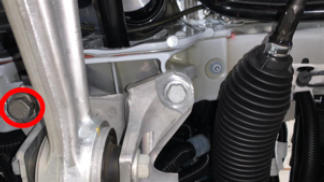

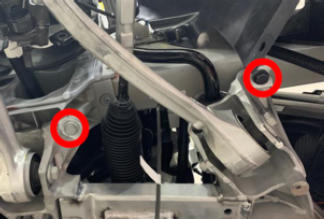

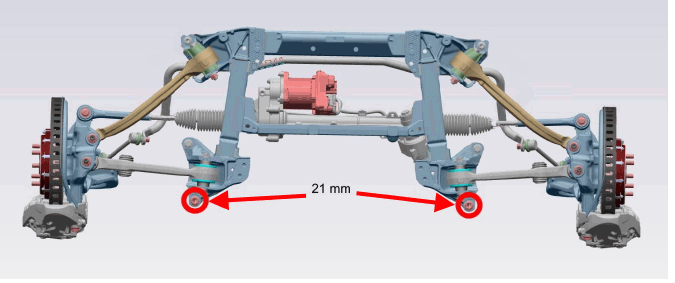

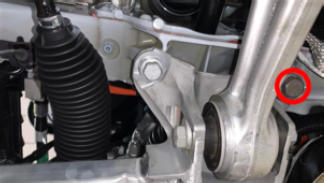

- Hand-tighten the rear bolts of the front subframe.NOTE: 21 mm. Depending on the vehicle manufacture date, the rear bolts might be as follows:
- M14 2.0 x 58 (1133941-00-C)
- M14 2.0 x 67 (1638540-00-A)

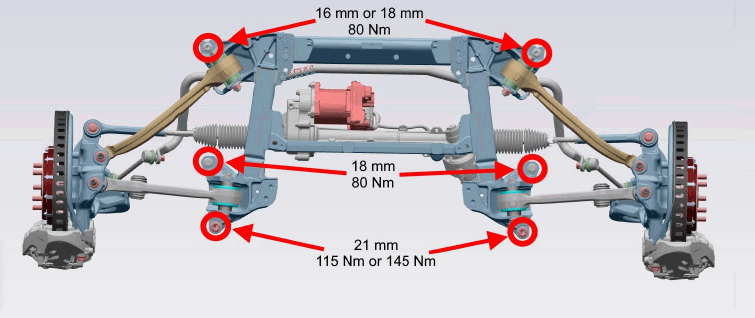

NOTE: Hand-tighten the bolts, and then use a battery powered drill to continue fastening the bolts. Do not tighten fully. Fully tighten the bolts at later step. - Tighten the front subframe bolts.NOTE: 16 mm or 18 mm bolts: 80 N.mNOTE: 21 mm bolts: Depending on the vehicle manufacture date, the torque rating of the bolts is as follows:
- M14 2.0 x 58 (1133941-00-C): 115 N.m
- M14 2.0 x 67 (1638540-00-A): 145 N.m

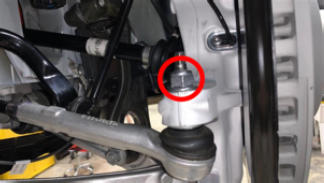

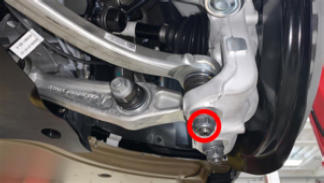

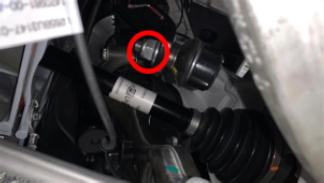

- Install the LH tie rod into the LH front knuckle, and then install a new nyloc nut to attach the tie rod to the knuckle.
102 N.m (75.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 21 mm socket
- Install the LH fore link to the LH front knuckle, and then install a new nyloc nut to attach the fore link to the knuckle.
180 N.m (132.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 22 mm socket
- Torx T45 socket
NOTE: To prevent ball joint damage, use a T45 tool to prevent the LH fore link ball joint stud from turning while installing the nut. - Install the LH aft link to the LH front knuckle, and then install a new nut to attach the aft link to the knuckle.
180 N.m (132.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 22 mm socket
- Torx T45 socket
NOTE: To prevent ball joint damage, use a T45 tool to prevent the LH aft link ball joint stud from turning while installing the nut. - Install and hand tighten the nut and bolt that attach the LH front active damper to the front lower aft link.
Tip: Use of the following tool(s) is recommended:
- 21 mm socket
- 21 mm combination wrench
NOTE: The nut and bolt will be torqued during the alignment check. - Install the LH front stabilizer bar link into the front stabilizer bar, and then install a new nyloc nut that attaches the link to the stabilizer bar.
70 N.m (51.6 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- 5 mm hex

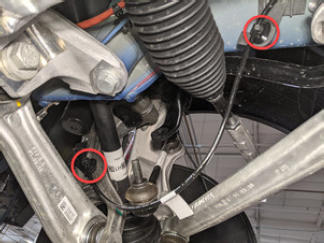

NOTE: To prevent ball joint damage, use a 5 mm hex wrench to prevent the LH link ball joint stud from turning while installing the nut. - Fasten the clips (x2) that attach the LH front ANC connection onto the knuckle.

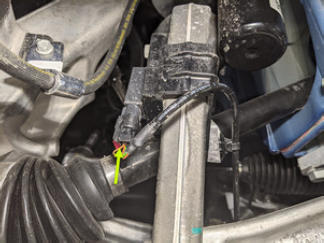

- Connect the electrical harness to the LH front wheel speed sensor connector.
- Repeat step 8 through step for the RH side of the vehicle.

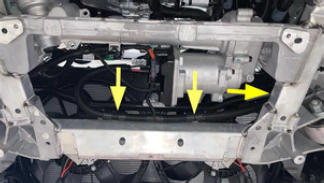

- Bring the electrical harness to the front subframe, and then fasten the clips (x3) that attach the electrical harness to the subframe.

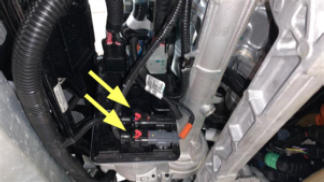

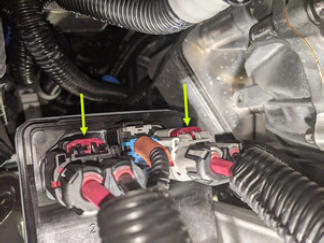

- Connect the steering rack electrical connectors (x2), and then slide the red locking tab.
- Connect the electrical harness to the EPAS CAN connectors (x2), and then slide the red locking tabs.

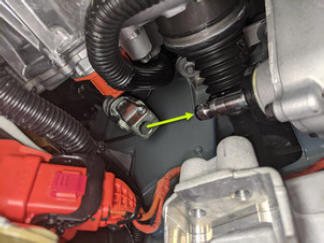

- Slide the steering column intermediate shaft down and onto the steering rack input shaft.

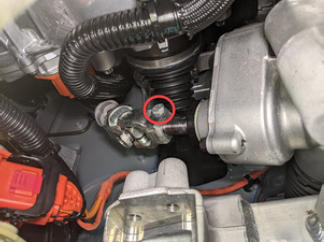

- Install the bolt that attaches the steering column intermediate shaft to the steering rack input shaft.
30 N.m (22.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Install the front skid plate. See SKIDPLATE - FRONT (REMOVE AND REPLACE) .
- Install the front fascia valance. See Valance - Front Fascia (Remove and Replace) .
- Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace) .
- Install the LH and RH front wheels. See Wheel (Remove and Install) .
- Connect LV power. See LV Power (Disconnect and Connect) .
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Remove the vehicle from the 2 post lift. See Raise Vehicle - 2 Post Lift .
- Calibrate the rear doors.NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
- Remove the steering wheel holder from the vehicle.
- Refer to the Alignment Requirement tables to determine if an alignment check (AC) or full adjustment (FA) is necessary. See Alignment Requirement - Suspension .
