Windshield Chip Repair

Last modified: 20/03/2023 09:27:07

1. Inspect the windshield for repair eligibility. See Windshield And Roof Glass Repair And Replacement Guidelines .
2. Open the LH and RH front doors.
3. Lower the LH and RH front windows.
4. Use IPA wipes to clean the windshield thoroughly.

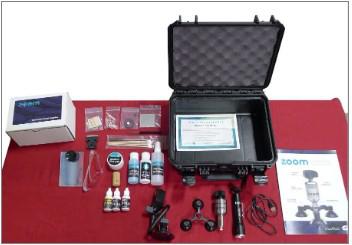

5. Inspect the glass crack repair kit, ensure all tools are present and resin residue is not present, and then inspect the seals for cracks, wear or swelling.

   Tip: Use of the following tool(s) is recommended:

   • Glass crack repair kit

   Courtesy of TELSA, INC.

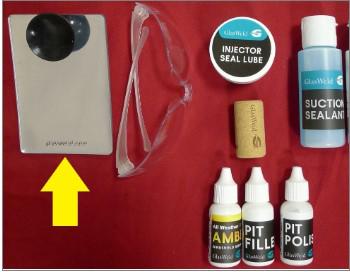

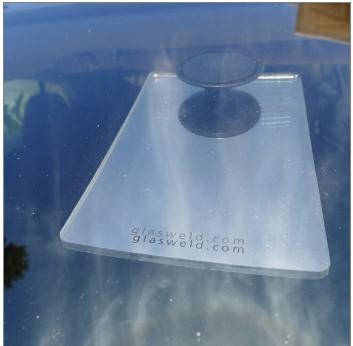

6. Use the suction cup to install the mirror on the inside of the windshield in front of the chip.

   Courtesy of TESLA, INC.

   Courtesy of TESLA, INC.

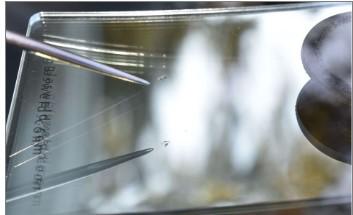

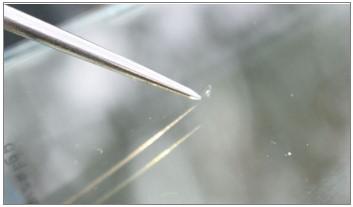

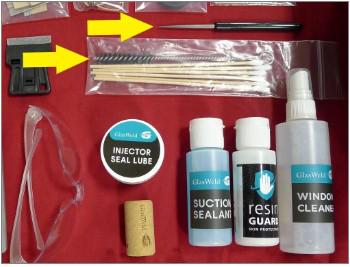

7. Use the pick and brush from the glass crack repair kit to clean out any residual debris from the chip in the windshield.

   Courtesy of TESLA, INC.

   Courtesy of TESLA, INC.

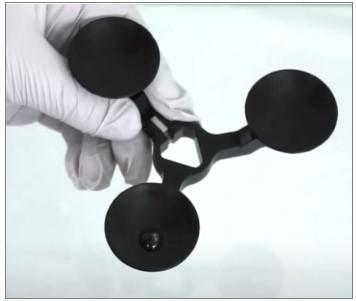

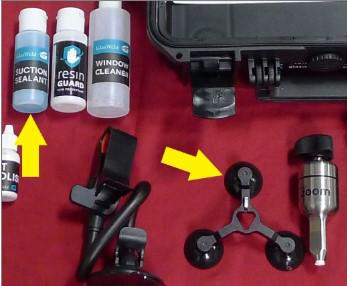

8. Apply one drop of suction sealant on each mounting stand suction cup, and then spread the sealant on each cup.

   Courtesy of TESLA, INC.

   Courtesy of TESLA, INC.

9. Install the mounting stand over the damaged area with the lower leg in the 6 o'clock position.
   NOTE: The 6 o'clock position allows excess suction sealant to flow downwards avoiding the chip during adjustment. Align the stand injector bracket with the chip.

   Courtesy of TESLA, INC.

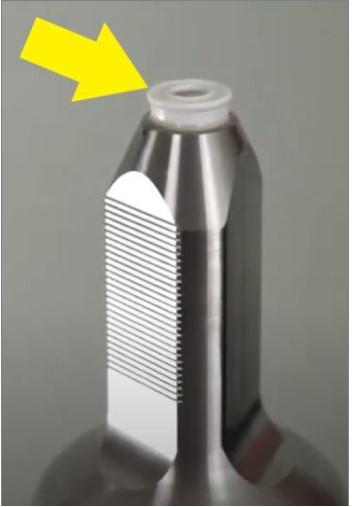

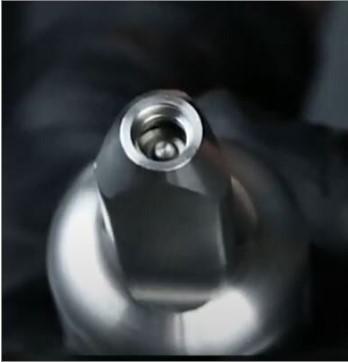

10. Prepare the resin injector as follows:

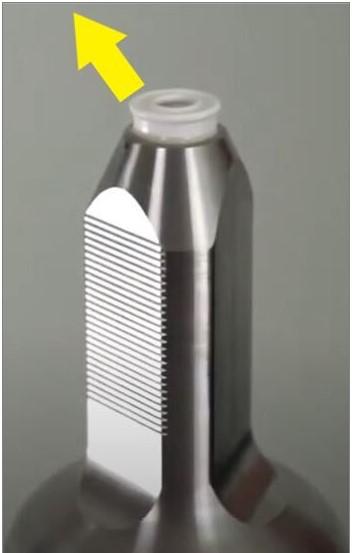

    1. Remove the white seal from the tip.

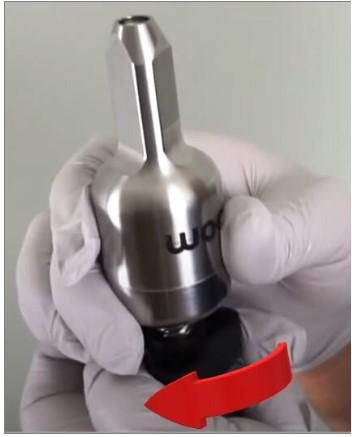

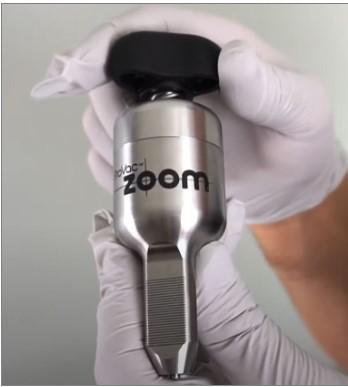

    2. With the injector piston turned fully clockwise, back the piston down by turning counter clockwise until there is approximately 1/2 inch space between the end of the injector and the piston.

       Courtesy of TESLA, INC.

       Courtesy of TESLA, INC.

       Courtesy of TESLA, INC.

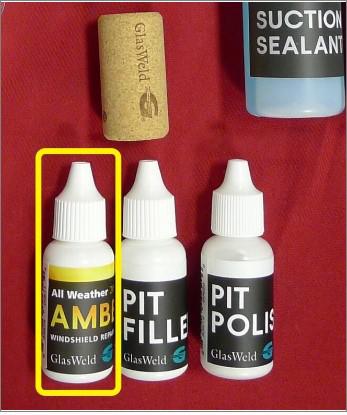

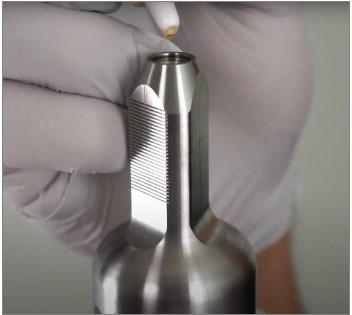

11. Apply 4 to 6 drops of resin into the tip of the resin injector
    CAUTION: Use latex gloves to protect skin from resin.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

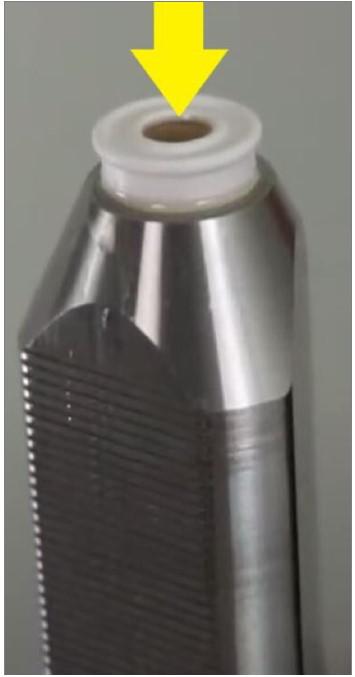

12. Install the white seal on the tip of the resin injector
    NOTE: Seal can be installed in either direction.

    Courtesy of TESLA, INC.

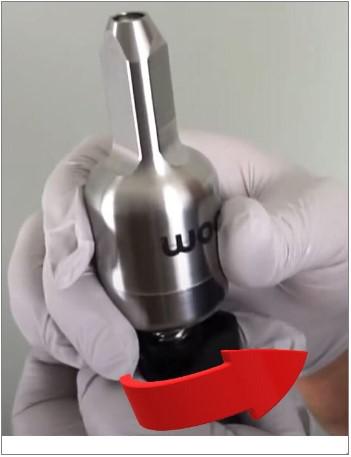

13. Turn the resin injector piston clockwise until the resin appears just above the bottom of the white seal.
    NOTE: Verify the piston is positioned correctly. The resin must not flow out of the injector when turned over.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

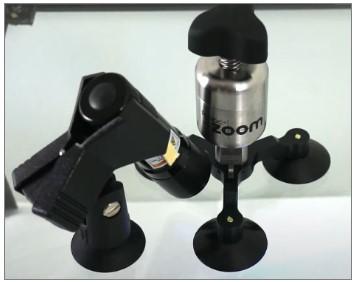

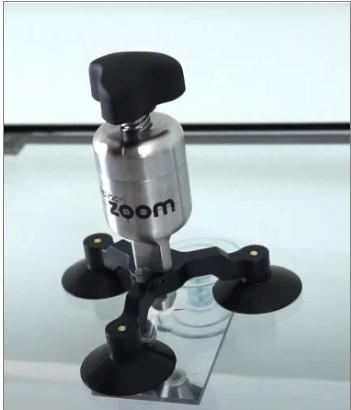

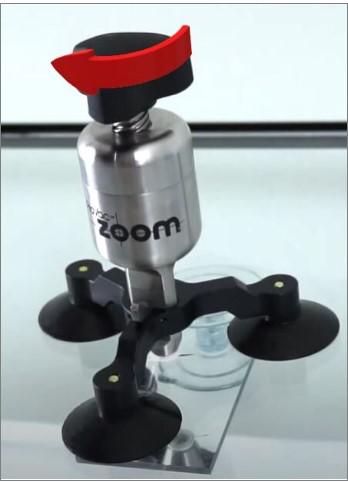

14. Install the injector on the mounting stand as follows:
    1. Align the injector teeth with the release lever.
    2. Press down until the white seal almost touches the glass.
    3. Do not install the injector on the glass at this time.

    Courtesy of TESLA, INC.

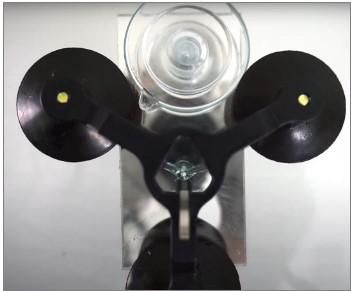

15. Align the mounting stand and injector with the chip.
    NOTE: Use the mirror reflection to confirm the impact location.

    Courtesy of TESLA, INC.

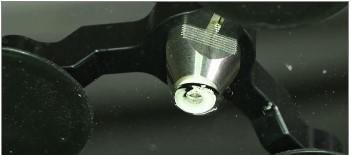

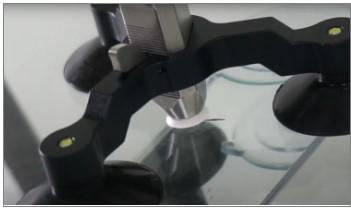

16. Push in the injector until the white seal touches the glass, and then push 1 to 2 additional clicks to ensure a proper seal.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

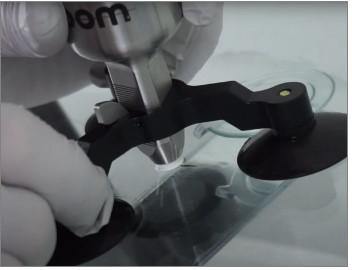

17. Stabilize the injector with one hand, and then turn the piston counter clockwise until the piston stops to remove the air from the injector.
    NOTE: Hold this initial vacuum stage for 1 to 2 minutes.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

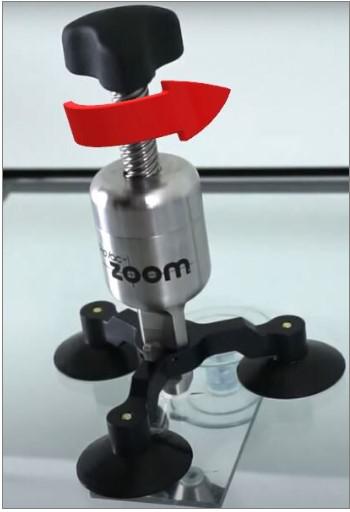

18. Stabilize the injector with one hand, and then turn the piston clockwise until the white seal swells to inject the resin.
    NOTE: Allow the resin to flow for 1 to 2 minutes.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

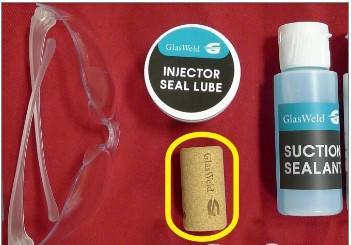

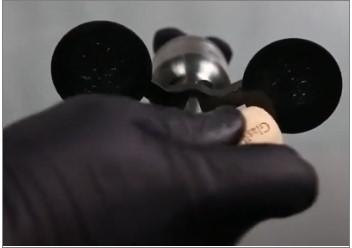

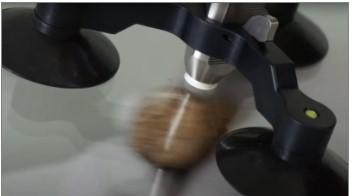

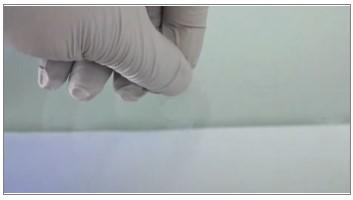

19. With slight pressure, use a cork on the inside of the windshield to flex and massage the damaged area to help the resin flow into the break.
    NOTE: Temporarily move the mirror aside as required.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

20. Repeat step  17 through step  19 until the last injection sequence is free of air and legs of the chip are filled with resin.
    NOTE: Monitor inside of the seal for air bubbles.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

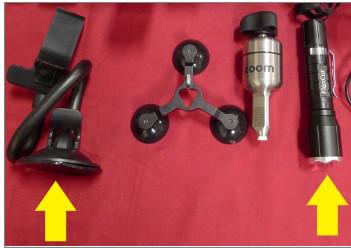

21. Place the light 1.5 to 2 inches from the repair area for 45 seconds on each side of the mounting stand.
    NOTE: The injector should remain in place and under pressure during the curing process.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

22. Remove the curing light.

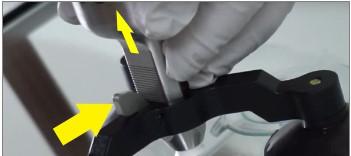

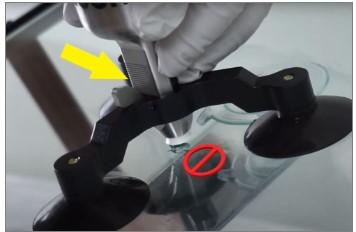

23. Remove the injector from the mounting stand by pushing on release lever and pulling up on injector, and then slide the tip of the probe under each suction cup to remove the stand.

    Courtesy of TESLA, INC.

24. Clean excess resin from the impact point.
    NOTE: Do not wipe any suction cup sealant into the unfinished pit.

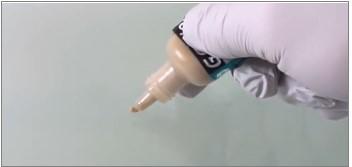

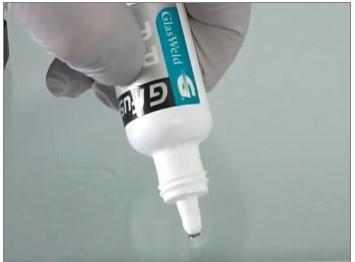

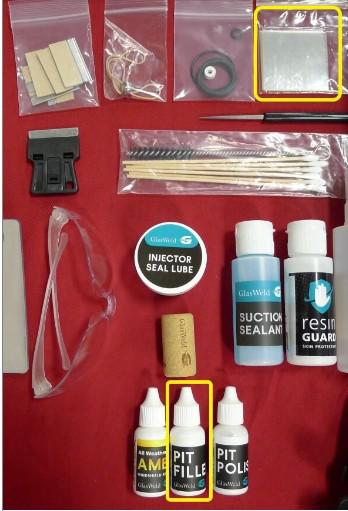

25. Apply one drop of Pit Filler just above the impact point, and then place a clean dry film tab over the filler.
    NOTE: Do not press down on the film tab.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

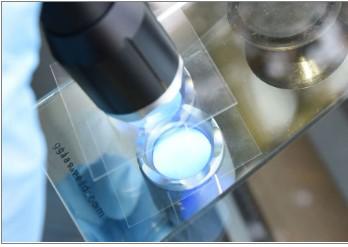

26. Position the curing light over the film tab for 1 minute.
    NOTE: Ensure no air is present beneath the film tab. The resin requires anaerobic curing.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

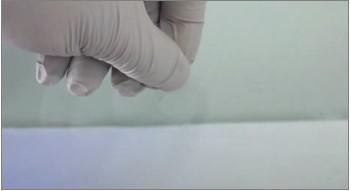

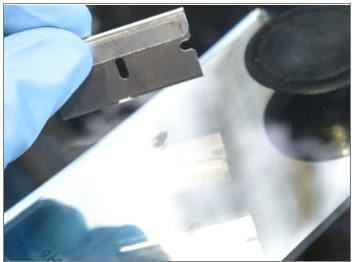

27. Use a razor blade to carefully remove the film tab.

    Courtesy of TESLA, INC.

28. Use a new razor blade to carefully remove the residual hardened resin.
    NOTE: Hold the blade at a 90 degree angle and scrape until the resin is level with the glass surface.

    Courtesy of TESLA, INC.

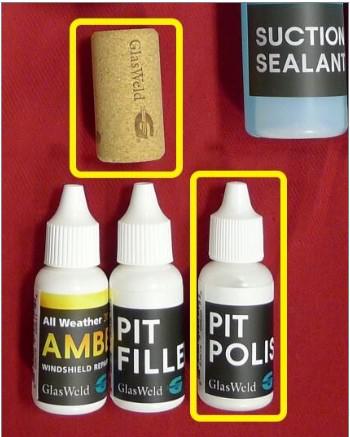

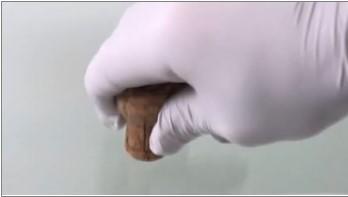

29. Apply 2 drops of Pit Polish over the filled pit, and then use a cork to polish the repair area.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

    Courtesy of TESLA, INC.

30. Remove the mirror.

    Courtesy of TESLA, INC.

31. Use IPA wipes to clean the windshield thoroughly.
32. Raise the LH and RH front windows.
33. Close the LH and RH front doors.
