Module - Battery Controller - Remove And Replace: Install

  1. Position the battery controller module into the vehicle.
  2. Connect the electrical connectors (x5) to the battery controller module.

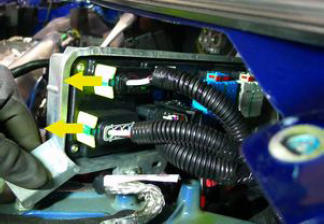

    G15437334Courtesy of TESLA, INC.

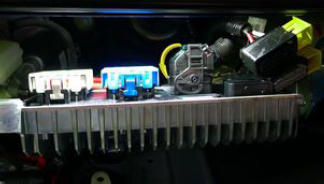

    G15437336Courtesy of TESLA, INC.

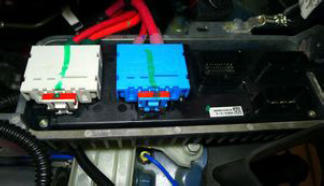

    G15437337Courtesy of TESLA, INC.
  3. Install the bolts and nut that attach the battery controller module to the vehicle.

    10 N.m (7.4 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • 4 in extension
    • Flex head ratchet/flex head torque wrench

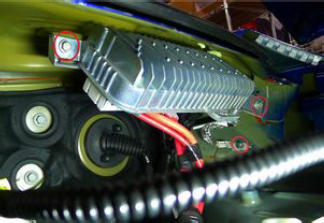

    G15437332Courtesy of TESLA, INC.
  4. Install the wiper module. See Wiper Module - Remove And Replace .
  5. Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .
  6. Install the RH wiper arm. See Wiper Arm - RH - Remove And Replace .
  7. Install the LH wiper arm. See Wiper Arm - LH - Remove And Replace .
  8. Install the LH and RH shock tower cover. See Cover - Shock Tower - LH - Remove And Replace .
  9. Connect LV power. See LV Power (Disconnect And Connect) .
  10. Perform a software reinstall. See Firmware Reinstall - Touchscreen or Firmware Reinstall - Toolbox .
  11. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  12. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  13. Press and hold the lower button on the upper B-pillar trim respectively to calibrate the LH and RH falcon wing doors.
