Enable Service Mode Via Vehicle Touchscreen

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

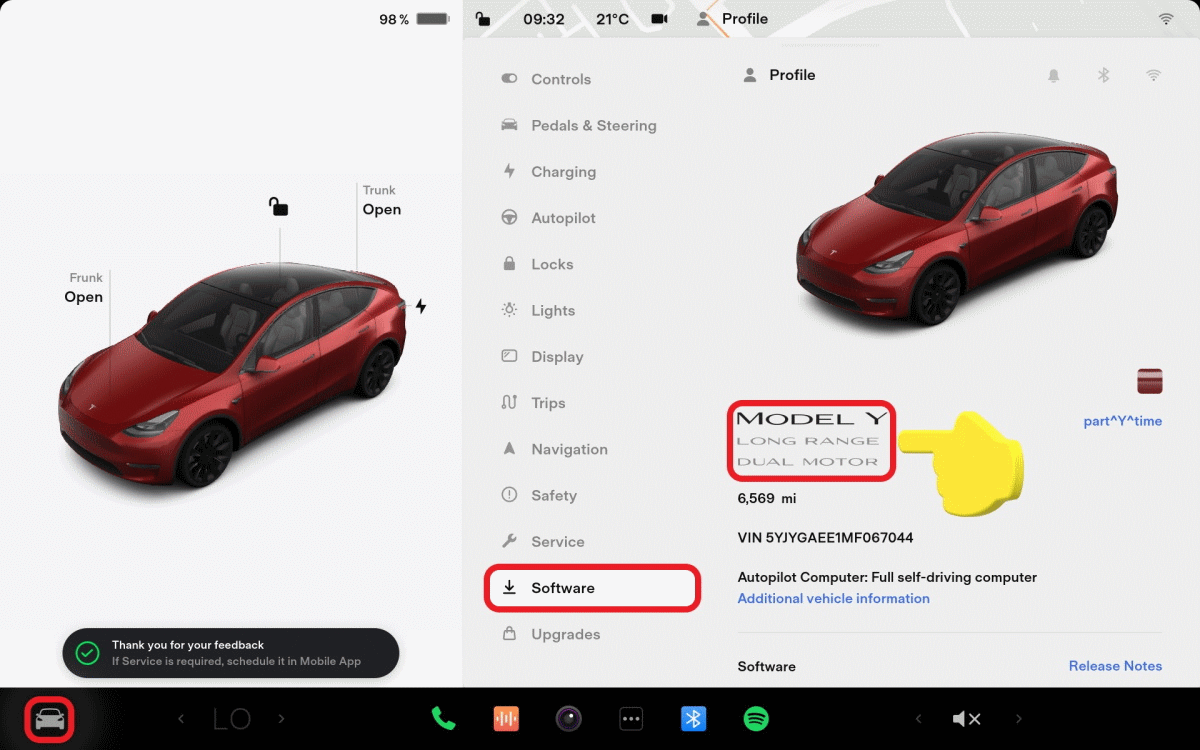

  1. On the vehicle touchscreen, touch CONTROLS (vehicle icon) > SOFTWARE  .
    NOTE:

    An image of the vehicle and badge is displayed.

    G00634675Courtesy of TESLA, INC.
  2. Touch and hold the large word "MODEL" for 2 seconds, and then release.

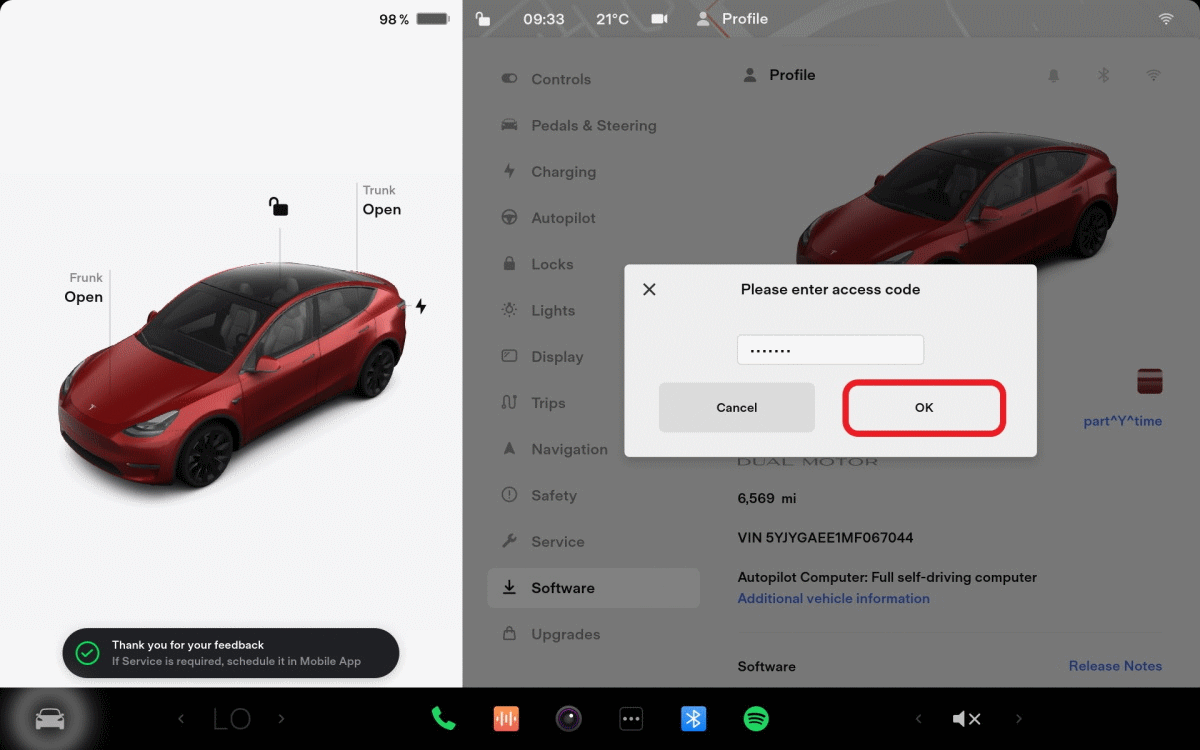

  3. Use the on screen keyboard to type "service" into the access code field, and then touch OK  .
    NOTE:

    The touchscreen is overlaid with the words "SERVICE MODE" in red. Newer firmware versions have a red border around the edges of the touchscreen UI.

    G00634676Courtesy of TESLA, INC.
