Module - Inductive Charger - Center Console (2.0) - Remove and Replace: Install

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

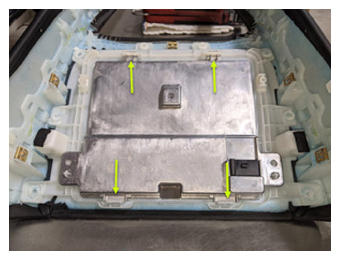

  1. Position the center console wireless charger module into the center console decor, and then secure the tabs.
    G14741013Courtesy of TESLA, INC.

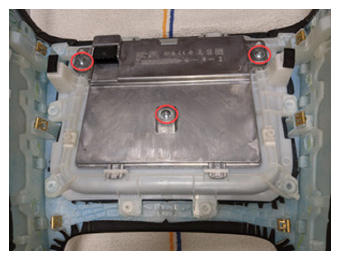

  2. Install the screws that attach the center console wireless charger module to the center console decor.

    1.3 N.m (1.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    • 4 in extension
    G14741014Courtesy of TESLA, INC.

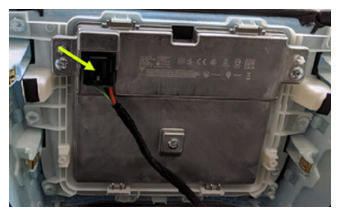

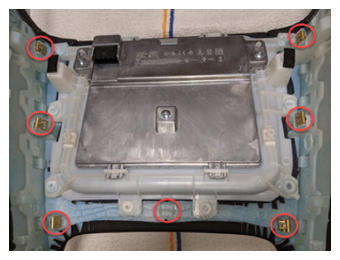

  3. Connect the center console inductive charger module electrical connector, and then fasten the surrounding clips that attach the center console decor to the center console.
    G14741015Courtesy of TESLA, INC.
    G14741016Courtesy of TESLA, INC.

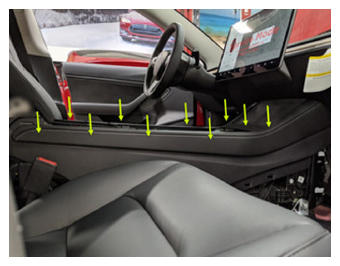

  4. Install the clips (x17) that attach the center console decor trim to the center console.
    G14741017Courtesy of TESLA, INC.
  5. Close the center console armrest.
  6. Move the front seats to the original position.
  7. Close the front doors.
