Ground Strap - Front Drive Unit - Remove And Replace: Install

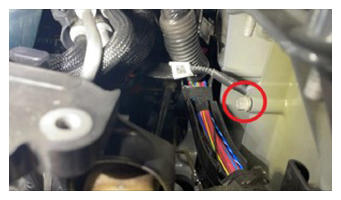

Install the front drive unit ground strap to the LH casting, and then install the bolt that attaches the strap to the casting.
15 N.m (11.1 ft-lbs)

Courtesy of TESLA, INC.

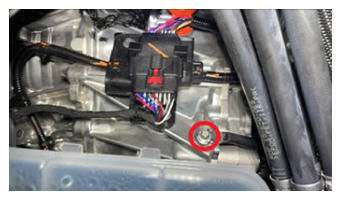

Install the captive bolt that attaches the ground strap to the front drive unit.
5.5 N.m (4.1 ft-lbs)

Courtesy of TESLA, INC.

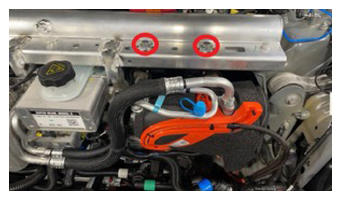

Install the bolts (x2) that attach the AC compressor bracket to the Multisystem beam.
31 N.m (22.9 ft-lbs)

Courtesy of TESLA, INC.

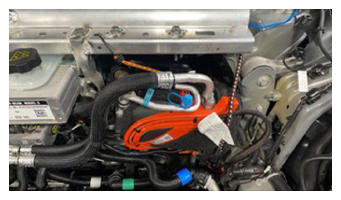

Remove the bungee cord from under the AC compressor.

Courtesy of TESLA, INC.
Install the underhood storage unit. See Underhood Storage Unit (Remove and Install) .
