Module - HomeLink Transmitter - Remove And Replace: Install

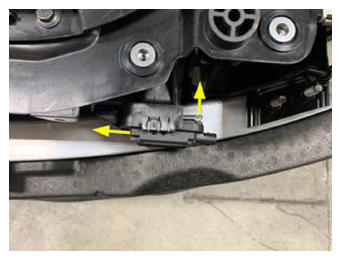

- Position the Homelink transmitter module into the vehicle, and then secure the tab that attaches the module to the vehicle.
 Courtesy of TESLA, INC.
|

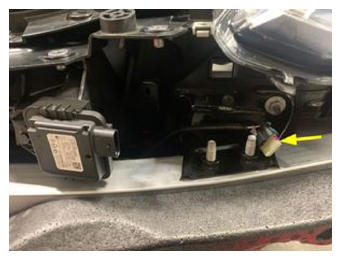

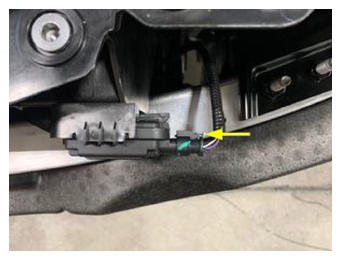

- Connect the front underhood storage harness connector, and then secure the connector lock.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

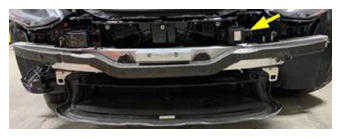

- Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install)
.

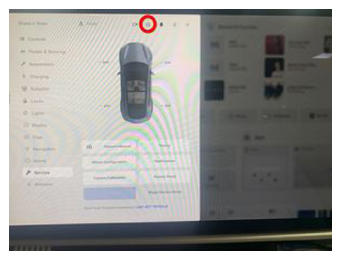

- Verify the Homelink icon is available on the vehicle touchscreen.
 Courtesy of TESLA, INC.
|
