Module - Body Controller - Front - Remove And Replace: Remove

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  4. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  5. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  6. Remove the underhood storage unit access panel. See Underhood Storage Unit Access Panel (Remove and Replace) .
  7. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .
  8. Disconnect LV power. See LV Power (Disconnect And Connect) .

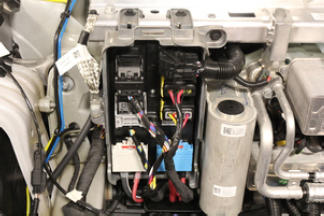

  9. Disconnect the front body controller module upper locking connectors (x2).
    NOTE: Push in the locking tabs, and then lift the levers to release the connectors.

    Tip: Use of the following tool(s) is recommended:

    • Plastic trim tool
    G15437386Courtesy of TESLA, INC.

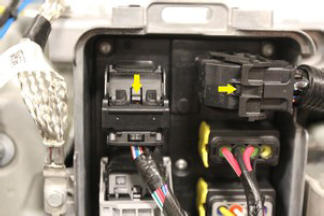

    G15437387Courtesy of TESLA, INC.

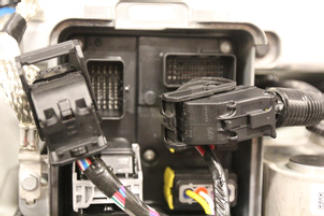

    G15437388Courtesy of TESLA, INC.

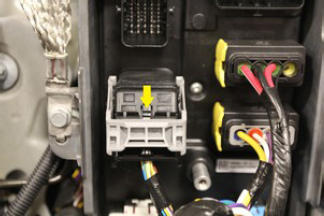

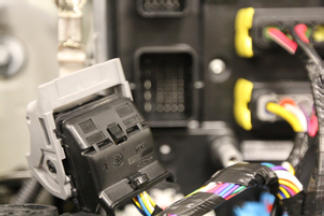

  10. Disconnect the front body controller module LH middle locking connector.
    NOTE: Push in the locking tab, and then lift the lever to release the connector.

    Tip: Use of the following tool(s) is recommended:

    • Plastic trim tool
    G15437389Courtesy of TESLA, INC.

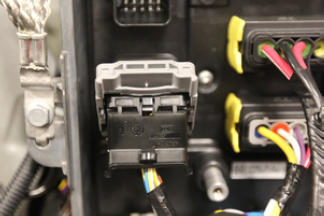

    G15437390Courtesy of TESLA, INC.
    G15437391Courtesy of TESLA, INC.

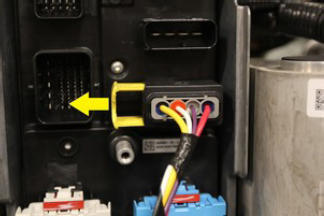

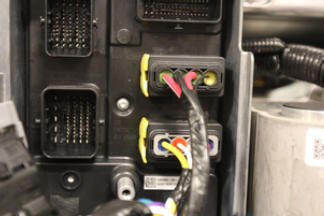

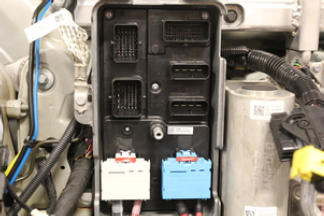

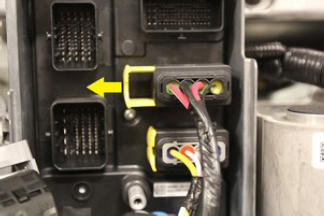

  11. Disconnect the front body controller module RH middle locking connectors (x2).
    NOTE: Slide the locking mechanism outwards to release connector.

    Tip: Use of the following tool(s) is recommended:

    • Plastic trim tool
    G15437392Courtesy of TESLA, INC.
    G15437393Courtesy of TESLA, INC.
    G15437394Courtesy of TESLA, INC.
    G15437395Courtesy of TESLA, INC.

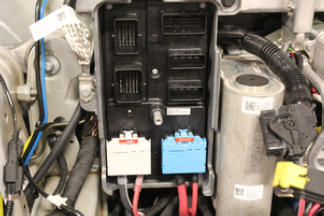

  12. Disconnect the front body controller module lower locking connectors (x2).
    NOTE: Slide the red locking tab outwards to release the connector.

    Tip: Use of the following tool(s) is recommended:

    • Plastic trim tool
    G15437396Courtesy of TESLA, INC.

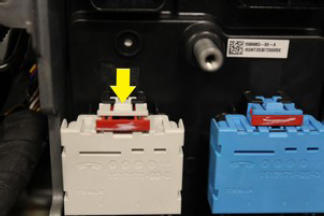

    G15437397Courtesy of TESLA, INC.
    G15437398Courtesy of TESLA, INC.

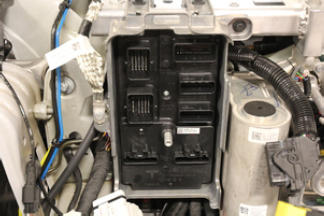

    G15437399Courtesy of TESLA, INC.

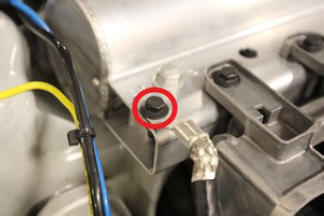

  13. Remove the bolt that attaches the front body controller module ground cable to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 4 in extension
    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G15437400Courtesy of TESLA, INC.
  14. Remove the bolts (x3) that attach the front body controller module to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 4 in extension
    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench

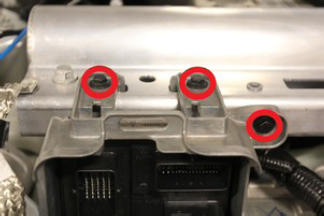

    G15437401Courtesy of TESLA, INC.

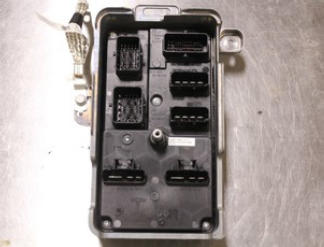

  15. Release the locating tabs (x2) that attach the front body controller module to the vehicle, and then remove the module and ground cable from the vehicle.

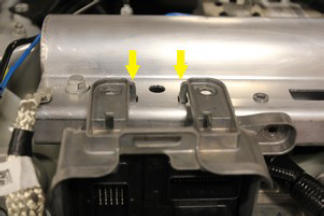

    G15437402Courtesy of TESLA, INC.

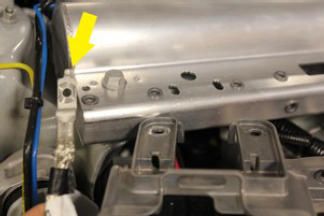

    G15437403Courtesy of TESLA, INC.
    G15437404Courtesy of TESLA, INC.
