Module - HomeLink Transmitter - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .

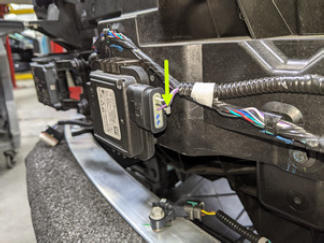

  4. Disconnect the homelink transmitter module connector.

    Tip: Use of the following tool(s) is recommended:

    • Pocket screwdriver
    G15437604Courtesy of TESLA, INC.

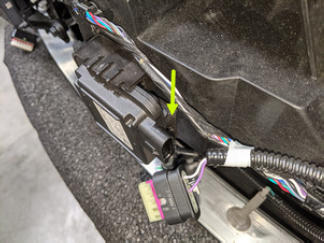

  5. Release the tab that attaches the homelink transmitter module to the body, and then remove the module from the vehicle.

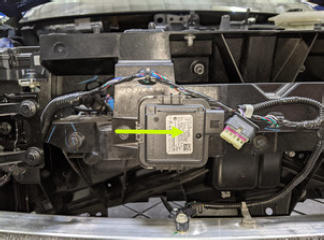

    NOTE: Slide the module to the left of the vehicle to remove.

    Tip: Use of the following tool(s) is recommended:

    • Pocket screwdriver
    G15437605Courtesy of TESLA, INC.
    G15437606Courtesy of TESLA, INC.
