Wheel Alignment
NOTE:
All specifications given in degrees. To convert from degrees to minutes and seconds, multiply the decimal after the whole number by 60. The whole number becomes the minute. Take the remaining decimal and multiply it by 60 to get the second. For example, 1.75° would be 1° and 45 min (.75*60). 0.17° would be 10 min and 12 seconds. (0.17*60=10.2;.2*60=12).
COIL SUSPENSION VEHICLES
| Parameter | With Ballast | Without Ballast | ||
|---|---|---|---|---|
| Front | Rear | Front | Rear | |
| Camber | -0.50° +/- 0.45° | -1.00° +/- 1.00° | -0.30° +/- 0.45° | -0.90° +/- 1.0° |
| Camber Split | +/- 0.60° | +/- 0.80° | +/- 0.60° | +/- 0.80° |
| Caster | 5.70° +/- 1.00° | Not applicable | 5.70° +/- 1.0° | Not applicable |
| Caster Split | +/- 1.00° | Not applicable | +/- 1.0° | Not applicable |
| Individual Toe | OUT 0.05° +/- 0.15° | IN 0.20° +/- 0.15° | IN 0.06° +/- 0.05° | IN 0.18° +/- 0.05° |
| Toe Split | +/- 0.10° | +/- 0.10° | +/- 0.10° | +/- 0.10° |
| Track Width (at wheel center height) | 1584 mm | 1584 mm | 1584 mm | 1584 mm |
| Coil Ride Height
NOTE:
When measuring the coil ride height, measure 75 mm inward from the ski hole in each corner of the Battery. See the image below.
|
141 +/- 5 mm | 144 +/- 5 mm | 152 +/- 5 mm | 152 +/- 5 mm |
| Wheelbase | 2875 mm | |||
NOTE:

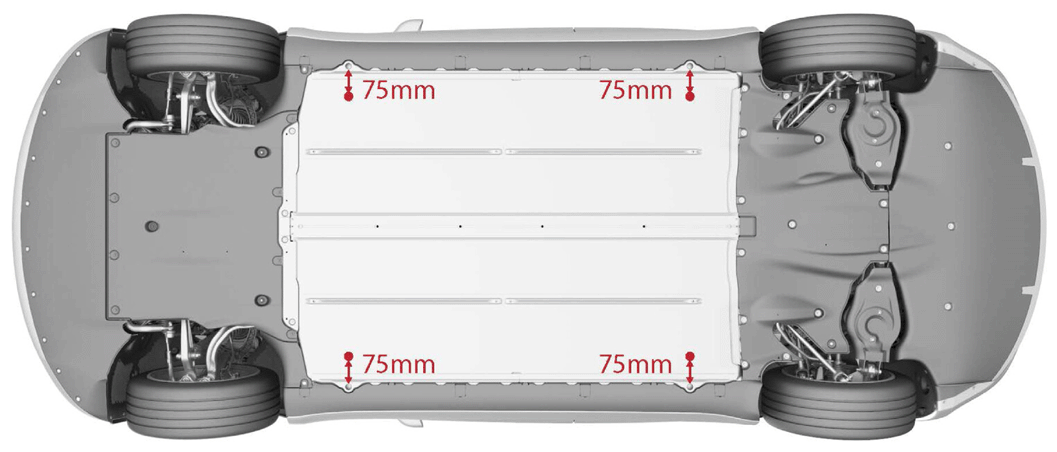

Location for measuring coil ride height
