Front Drive Unit Assembly - Assembly, Cover, Phase Out, 3DU - Remove And Replace: Notes

Last modified: 23/05/2024 07:51:27

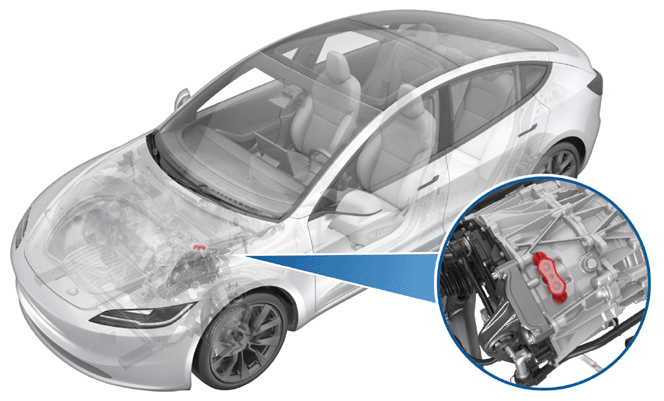

Fig 1: Front Drive Unit (3DU) Phase Out Cover Assembly Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - FRONT DRIVE UNIT ASSEMBLY - ASSEMBLY, COVER, PHASE OUT, 3DU (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the front harness bracket to the vehicle	9 N.m (6.6 lbs-ft)	Ratchet/torque wrench 10 mm socket 2 in extension	Reuse
Bolts that secure the phase out cover	14 N.m (10.3 lbs-ft)	Socket 3/8 in Dr EP10 Cordless 1/4 in Dr Ratchet 2 in extension Ratchet/torque wrench 4 in extension 1/4 in to 3/8 in adapter ESD Strap	Reuse
