Front Drive Unit Assembly - Assembly, Front 3DU, Global - Remove And Replace: Notes

Last modified: 23/05/2024 07:04:10

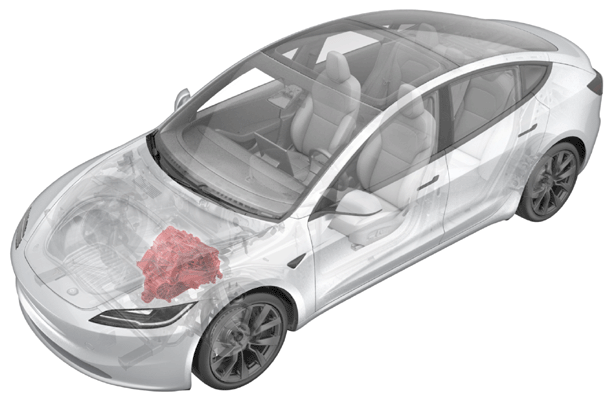

Fig 1: Front (3DU) Drive Unit Component Location

Courtesy of TESLA, INC.

Revision History:

• 2024-01-24: Added a note to install a new motor ID label in hood/trunk for China, Japan and Korea.

• 1137855-00-A TOOL, REAR RIDE HEIGHT TORQUE, MODEL 3
• 1705887-00-A 1/2" Dr. Electric Impact
• 1498673-00-A KIT, CABLE AXLE REMOVER, MS/MX/M3
• 1130279-00-A Lifting Sling, Drive Unit, Model 3 (NA, APAC)
• 1080270-00-A 12V Maintainer Charger
• 1773092-00-A Adapter, Diagnostic Harness, All models

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x4) that attach the front end carrier to the LH and RH front subframe crash can assemblies	16 N.m (11.8 lbs-ft)	Cordless Ratchet/Impact Driver 13 mm socket Ratchet/torque wrench 2 in extension	Reuse
Bolts (x2) that attach the LH and RH motor mounts to the LH and RH motor mount brackets	105 N.m (77.4 lbs-ft)	External Torx E18 Flex head ratchet/flex head torque wrench 3/8 in to 1/2 in adapter Cordless Ratchet/Impact Driver 1/4 in to 3/8 in adapter 6 in extension Ratchet/torque wrench	Reuse
Bolt that attaches the front drive unit mount to the front subframe	80 N.m (59.0 lbs-ft)	Flex head ratchet/flex head torque wrench 18 mm socket Cordless 3/8 in Dr Impact	Reuse
Bolts that attach the front drive unit to the crate		19 mm socket Ratchet/torque wrench Prybar Med	Reuse
