Front Drive Unit Assembly - Electric Oil Pump - Remove And Replace: Notes

Last modified: 12/03/2024 14:02:23

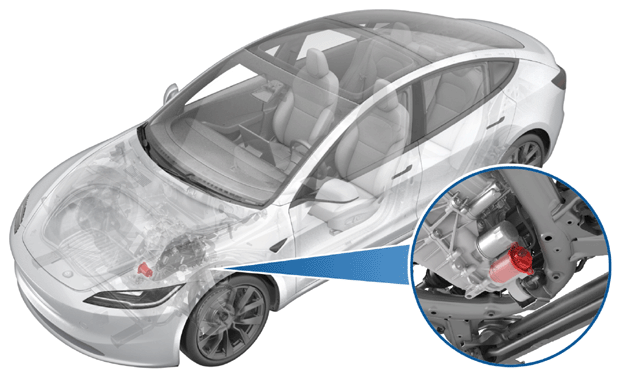

Fig 1: Front Drive Unit Electric Oil Pump Component Location

Courtesy of TESLA, INC.

Revision History:

• 2024-02-27: Updated gearbox fluid to KAF 1.

• 1081765-00-A 3/4 Ton Underhoist Stand
• 1451830-00-A Socket 1/4 in Dr EP10
• 1494178-00-A MS/X Raven Drive Unit Cradle

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the front drive unit to the front subframe	80 N.m (59.0 lbs-ft)	Flex head ratchet/flex head torque wrench 18 mm socket Cordless 3/8 in Dr Impact	Reuse
Front drive unit fill plug	15 N.m (11.1 lbs-ft)	8 mm socket Ratchet/torque wrench	Reuse
Bolts (x2) that attach the oil pump to the front drive unit	5 N.m (3.7 lbs-ft)	Socket 1/4 in Dr EP10 - 1451830-00-A Cordless 1/4 in Dr Ratchet 4 in extension Ratchet/torque wrench 1/4 in to 3/8 in adapter Torque wrench with angle measurement	Reuse
Oil filter	3 N.m (2.2 lbs-ft)	Oil filter socket 21 mm socket 1/4 in to 3/8 in adapter Torque wrench with angle measurement	Reuse
