Front Drive Unit Assembly - Front Motor Mount Assembly, RH Isolator - Remove And Replace: Notes

Last modified: 17/10/2023 18:56:29

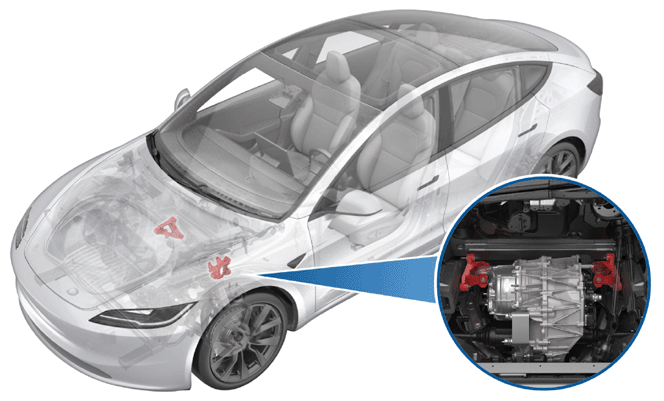

Fig 1: Front - RH Motor Mount Isolator Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - FRONT DRIVE UNIT ASSEMBLY - FRONT MOTOR MOUNT ASSEMBLY, RH ISOLATOR (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the LH and the RH motor mount isolators to the body	62 N.m (45.7 lbs-ft)	External Torx 3/8 in E14 Socket 3 in extension Flex head ratchet/flex head torque wrench	Replace
