Front Drive Unit Assembly - Front Motor Mount Assembly, RH Isolator - Remove And Replace: Remove
- Remove the front subframe assembly. See FRONT SUBFRAME - FRONT SUBFRAME ASSEMBLY - REMOVE AND REPLACE .

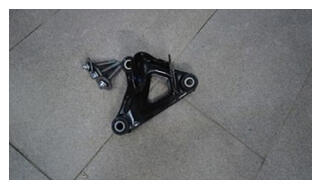

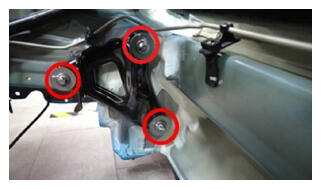

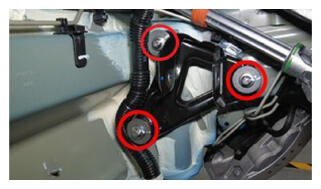

- Remove and discard the bolts (x6) that attach the LH and the RH motor mount isolators to the body, and then remove the isolators from the vehicle.
Tip: Use of the following tool(s) is recommended:
- External Torx 3/8 in E14 Socket
- 3 in extension
- Flex head ratchet/flex head torque wrench
