Module - Body Controller - LH - Remove And Replace: Remove

  1. Remove the LH front sill panel trim. See Trim - Sill Panel - Front - LH - Remove And Replace .
  2. Remove the LH IP end cap. See End Cap - Instrument Panel - LH - Remove And Replace .
  3. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  4. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  5. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  6. Disconnect LV power. See LV Power (Disconnect And Connect) .
  7. Remove the driver outboard footwell cover. See Cover - Footwell - Outboard - Driver (Remove and Replace) .
  8. Remove the driver knee airbag. See Knee Airbag - Driver (Remove and Replace) .
  9. Move the LH front cabin carpet aside for access.
    G15437437Courtesy of TESLA, INC.
  10. Use a clip prytool to release the clip that attaches the harness to the LH body controller.
    G15437438Courtesy of TESLA, INC.
  11. Disconnect the understood storage unit electrical connector from the LH body controller module.
    G15437439Courtesy of TESLA, INC.
    G15437440Courtesy of TESLA, INC.

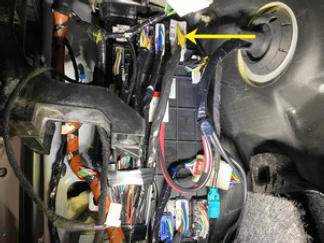

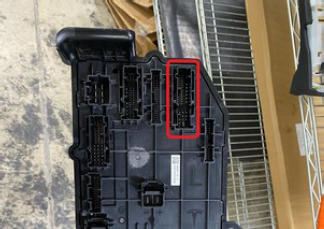

  12. Release the connector lock, disconnect the body 1 electrical connector from the LH body controller module.
    G15437441Courtesy of TESLA, INC.
    G15437442Courtesy of TESLA, INC.

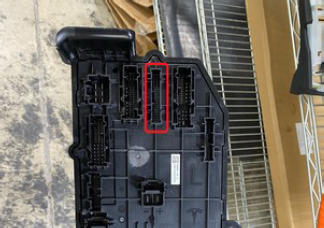

  13. Disconnect the body 3 electrical connector from the LH body controller module.
    G15437443Courtesy of TESLA, INC.
    G15437444Courtesy of TESLA, INC.

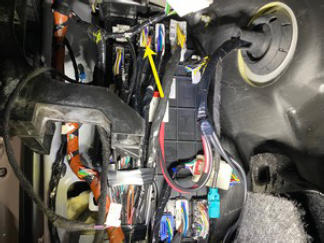

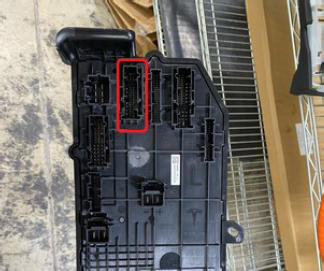

  14. Release the connector lock, disconnect the body 5 electrical connector from the LH body controller module.
    G15437445Courtesy of TESLA, INC.
    G15437446Courtesy of TESLA, INC.

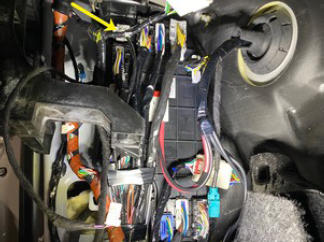

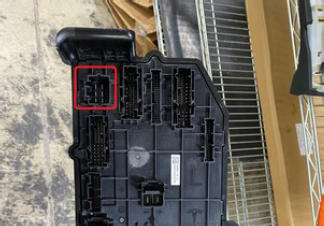

  15. Release the connector lock, disconnect the body 4 electrical connector from the LH body controller module.
    G15437447Courtesy of TESLA, INC.
    G15437448Courtesy of TESLA, INC.

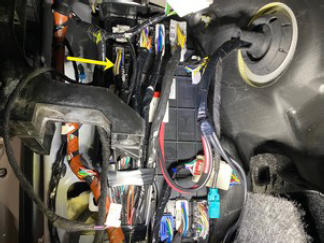

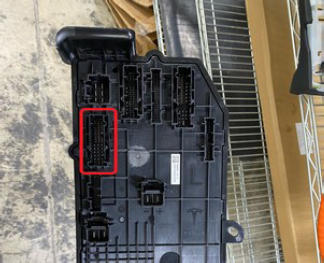

  16. Release the connector lock, disconnect the body 2 electrical connector from the LH body controller module.
    G15437449Courtesy of TESLA, INC.
    G15437450Courtesy of TESLA, INC.

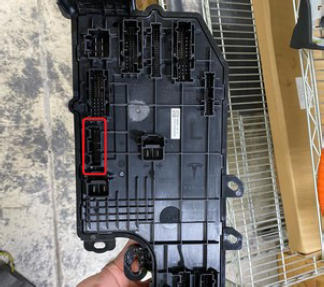

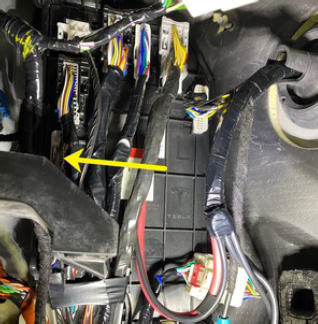

  17. Disconnect the body 6 electrical connector from the LH body controller module.
    G15437451Courtesy of TESLA, INC.
    G15437452Courtesy of TESLA, INC.

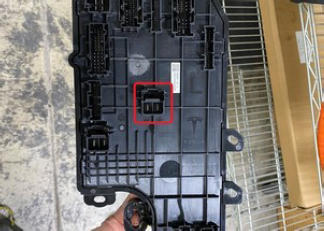

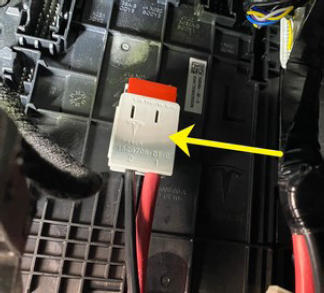

  18. Release the connector lock, disconnect the power electrical connector from the LH body controller module.
    G15437453Courtesy of TESLA, INC.
    G15437454Courtesy of TESLA, INC.

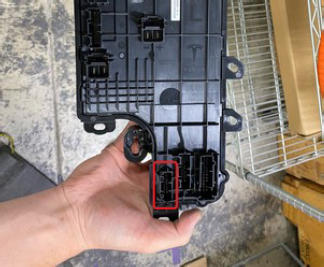

  19. Disconnect the door 2 electrical connector from the LH body controller module.
    G15437455Courtesy of TESLA, INC.
    G15437456Courtesy of TESLA, INC.

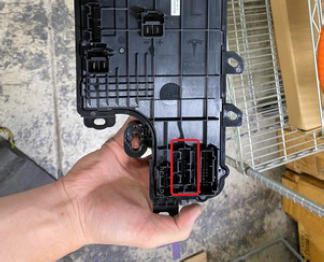

  20. Disconnect the door electrical connector from the LH body controller module.
    G15437457Courtesy of TESLA, INC.
    G15437458Courtesy of TESLA, INC.

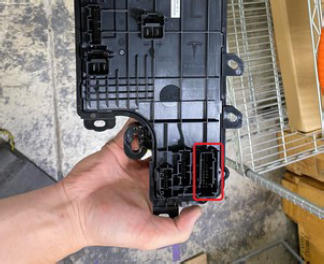

  21. Release the connector lock, disconnect the dash electrical connector from the LH body controller module.
    G15437459Courtesy of TESLA, INC.
    G15437460Courtesy of TESLA, INC.

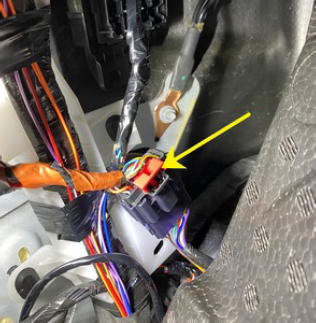

  22. Release the connector lock, disconnect the harness electrical connector.
    G15437461Courtesy of TESLA, INC.

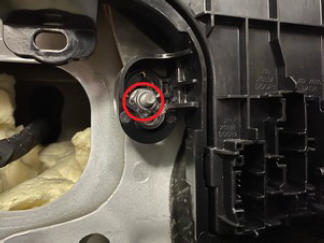

  23. Remove and discard the nut that attaches the LH body controller to the body.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G15437463Courtesy of TESLA, INC.

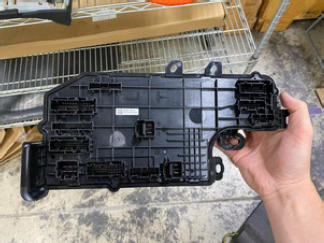

  24. Lift the LH body controller module upwards carefully to release the tab, and then remove the LH body controller module from the vehicle.
    G15437467Courtesy of TESLA, INC.
