Steering Column

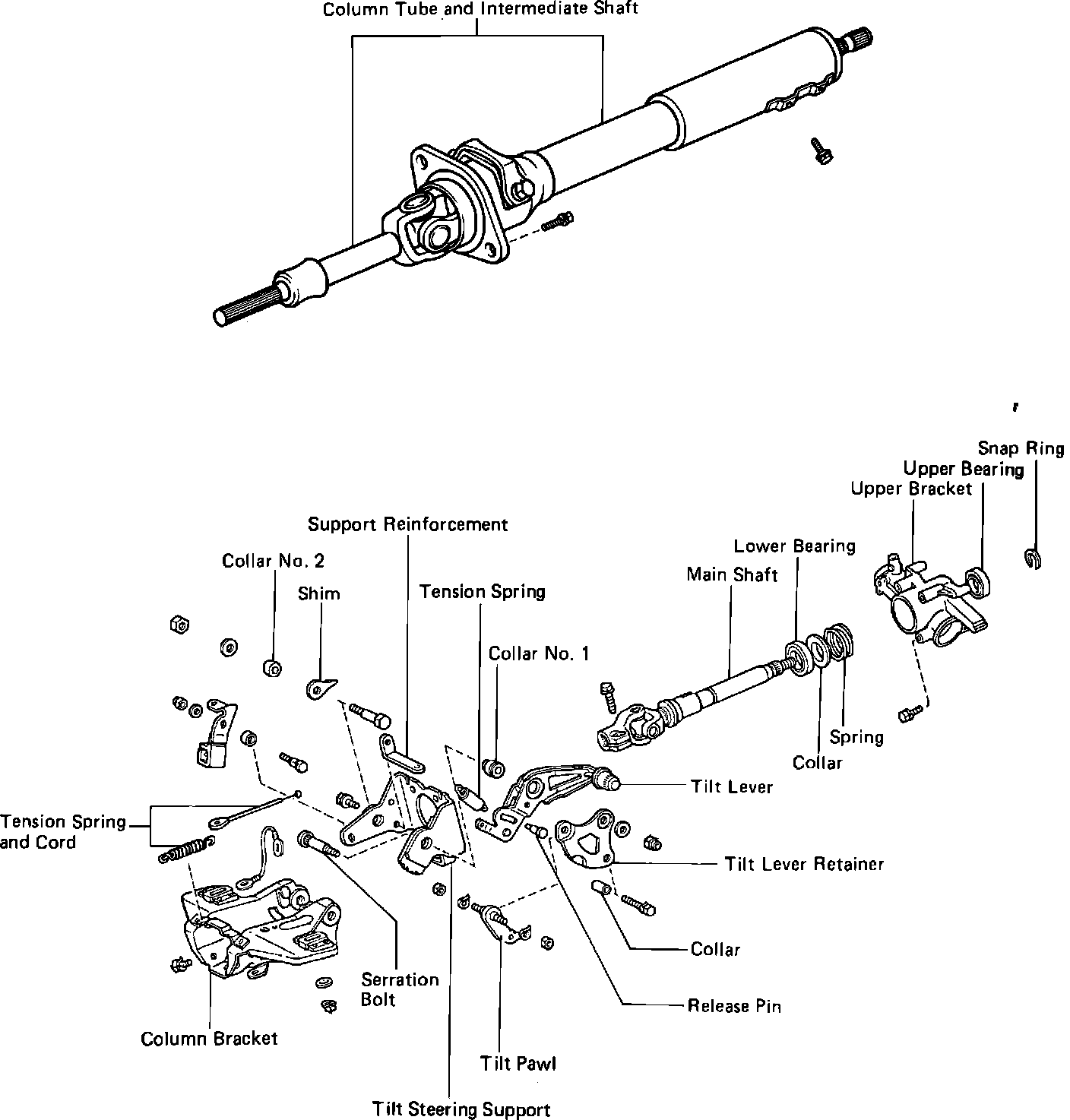

Fig. 4 Exploded view of steering column. 1984-85 Celica & 1984-86 early models Supra:
