Main Body
- Remove venturis and gaskets. Lift out pump discharge weight, "O" ring, spring and ball. Lift out pump damping spring.

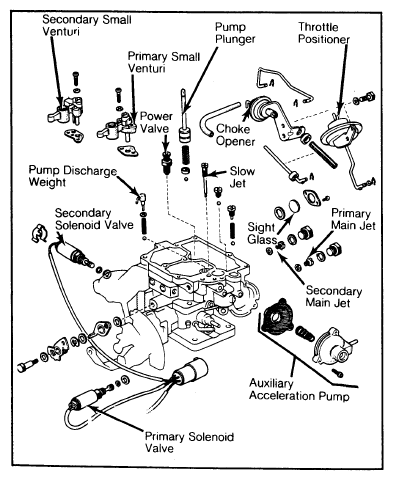

- Using tweezers, take out retainer and ball. Remove slow jet and power valve. Remove auxiliary acceleration pump inlet and outlet plugs, spring and balls. See Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove pump housing, diaphragm, spring and gasket. Disconnect throttle positioner and choke opener links. Remove throttle positioner and choke opener.
- Remove main jet plugs and main jets. Remove sight glass retainer, sight glass and "O" ring. Remove primary and secondary solenoid valves.
