Coolant Thermosensor

Fig. 59 Coolant thermo sensor test specifications:

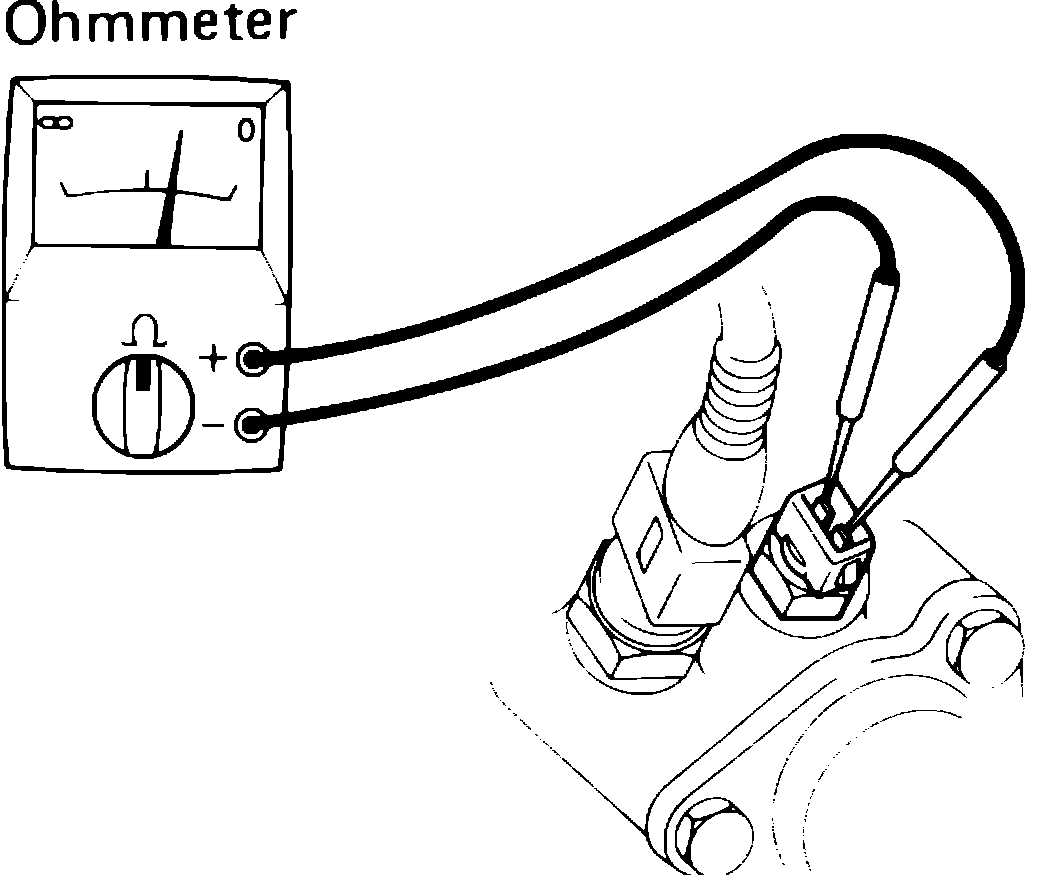

Fig. 41 Testing Coolant Thermosensor:

1. Disconnect electrical connector from sensor and measure resistance between sensor terminals,Fig. 41.
2. If measured resistance does not correspond to values shown in graph, Fig. 59, sensor is defective.
