Control Units

CONTROL UNITS LOCATION

Component Location

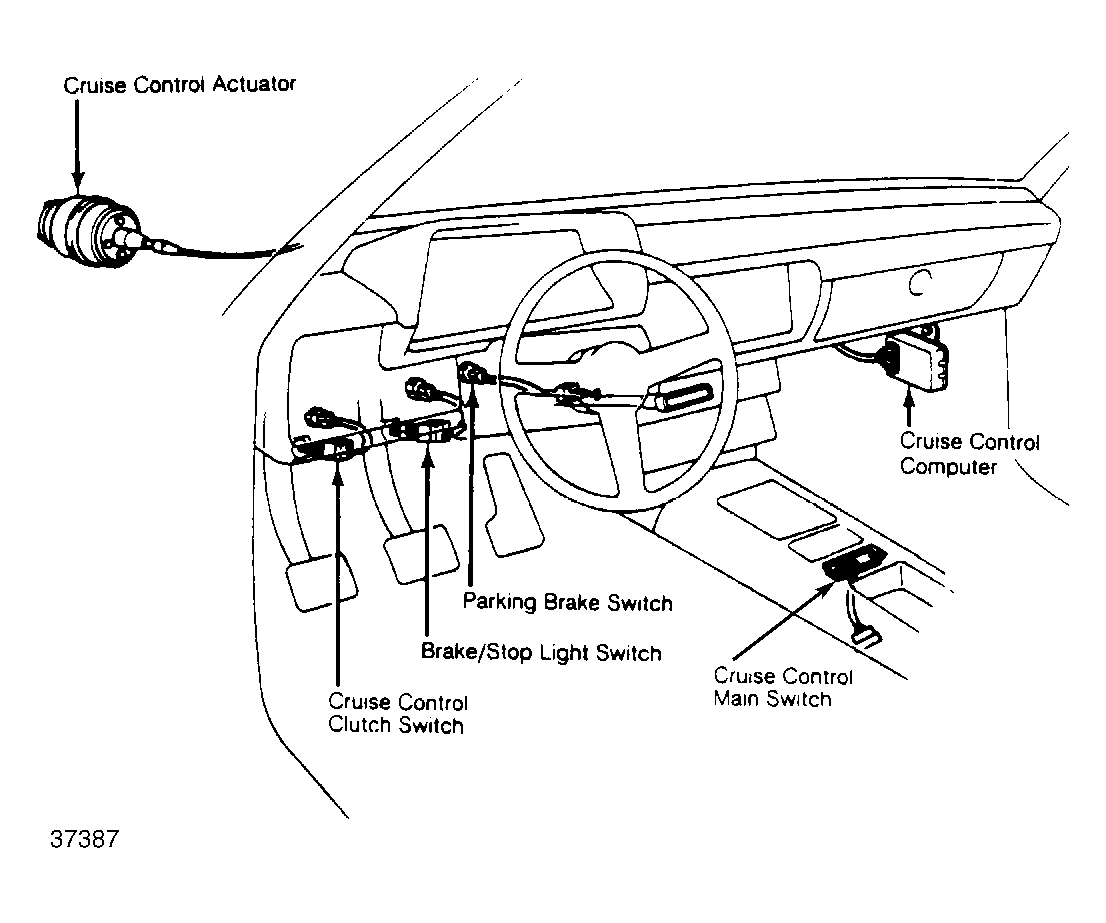

Cruise Control Computer Behind right kick panel. See Figure.
Emission Control Computer Behind left kick panel. See Figure.
