Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

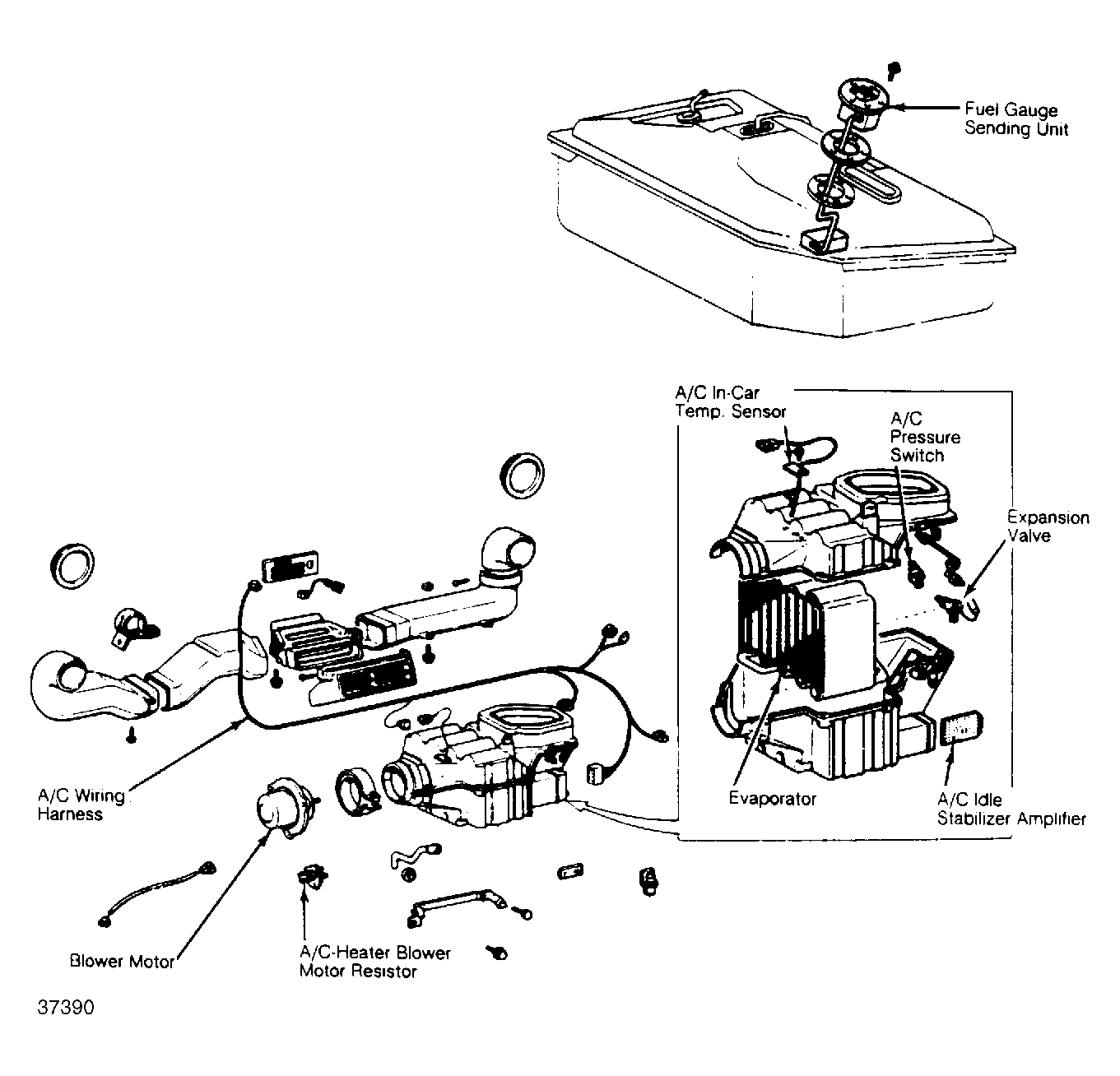

| A/C-Heater Blower Motor Resistor | On left side of blower housing. See Figure. |
| A/C Idle Stabilizer Amplifier | On evaporator housing. See Figure. |
| Cruise Control Actuator | On left side of engine compartment. See Figure. |
| Fuse Block | Under left side of dash. See Figure. |
| Fusible Links | At battery. |
| Glow Plug Register | On back side of intake manifold. |
| Hazard/Turn Signal Flasher | Under right side of dash. See Figure. |
