MECHATRO Spark (Ms) Control System CKT (Starlet 5-Speed Only)

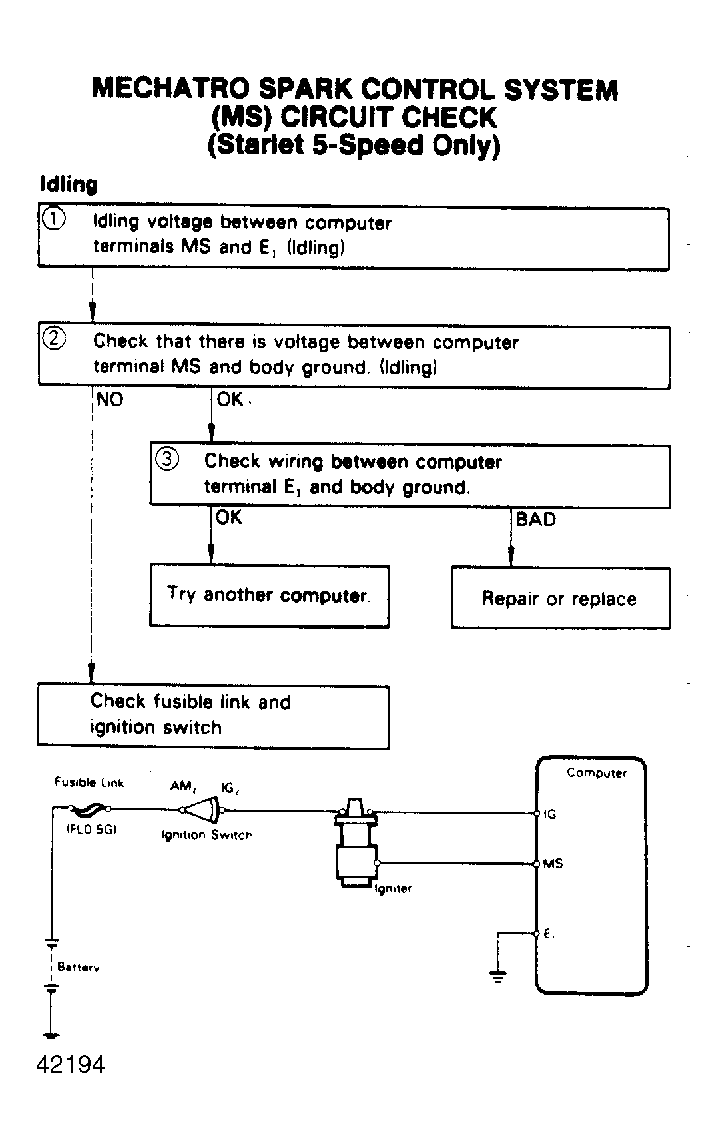

Fig 1: Mechatro Spark (MS) Control System Ckt Check (5-Speed) Starlet 5-Speed.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
