Choke Unloader

Fully open primary throttle valve. Insert angle gauge. Adjust angle of choke valve to 47° from fully closed position by bending fast idle lever.

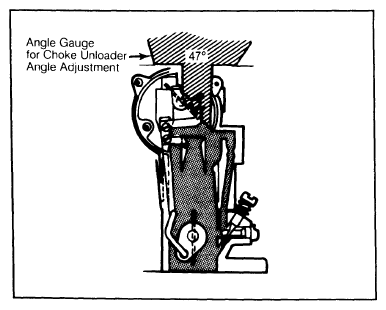

Fig 1: Choke Unloader Angle Adjustment
G09314359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
