Choke Unloader

Fully open primary throttle valve, insert angle gauge and measure choke valve angle. Angle should be 41°. Bend fast idle lever to adjust. See Fig 1.

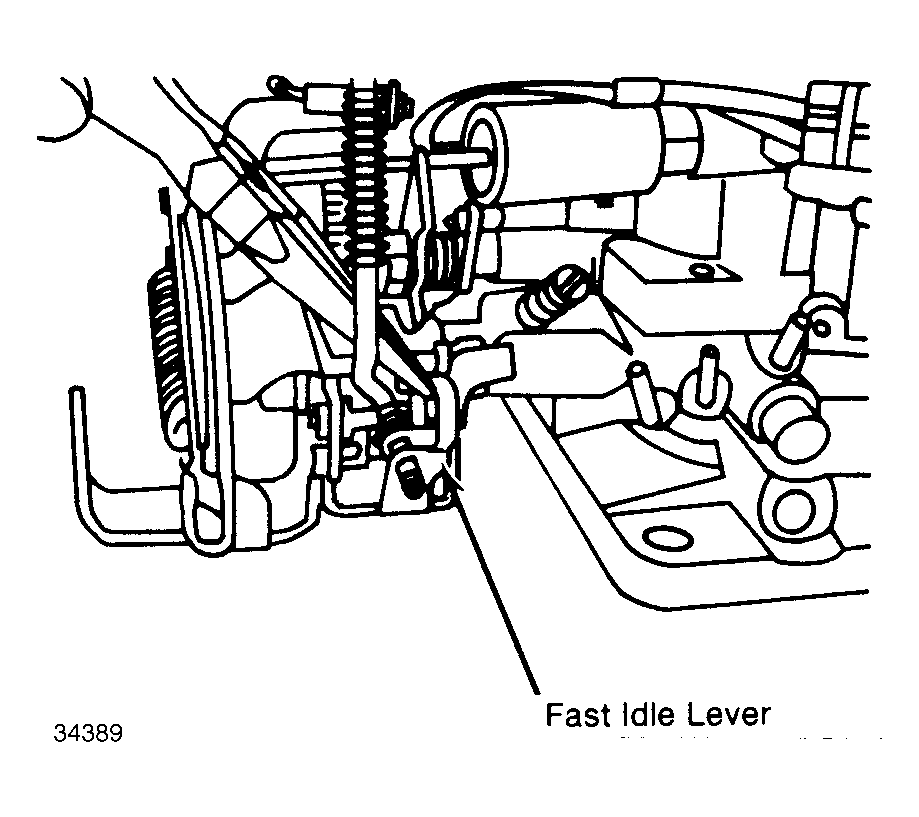

Fig 1: Choke Unloader Adjustment Bend fast idle lever to adjust.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
