Trouble Code 3 Blinks IGNITOR & Circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trouble Code 3 Blinks IGNITOR & Circuit

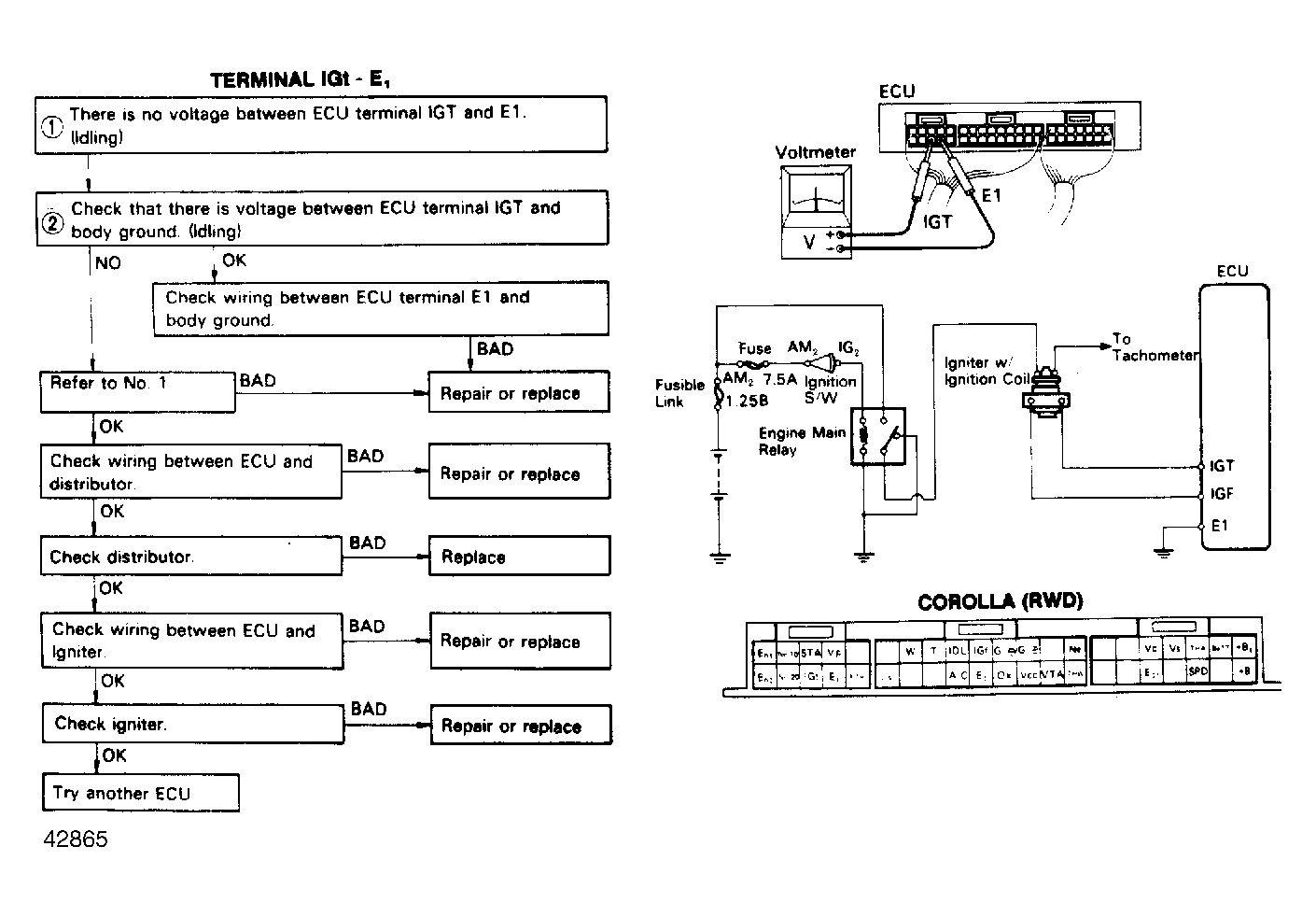

Fig 1: Terminal IGt - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
