Mixture Control Solenoid: Locations

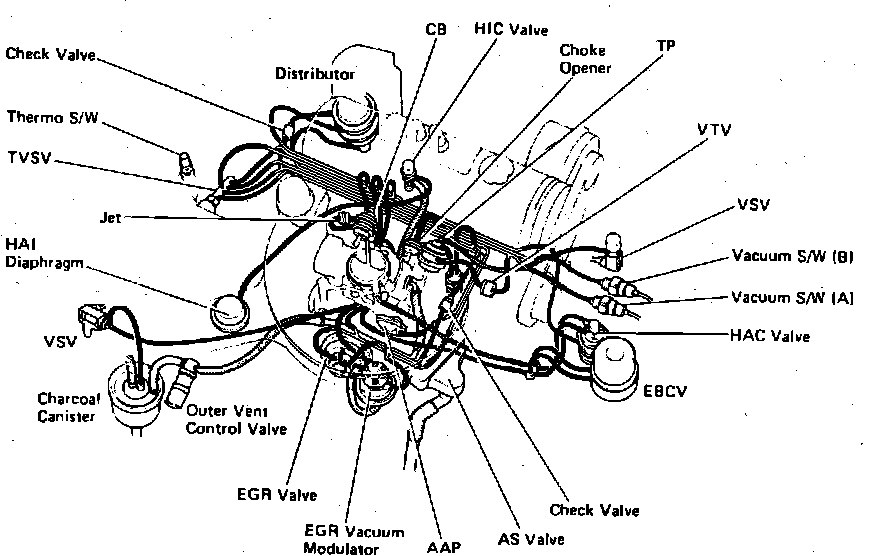

Emission Control System Components.:




Rear RH Side Of Engine

Applicable to: 1985 Models w/4A-C Engine & Front Wheel Drive Except California
