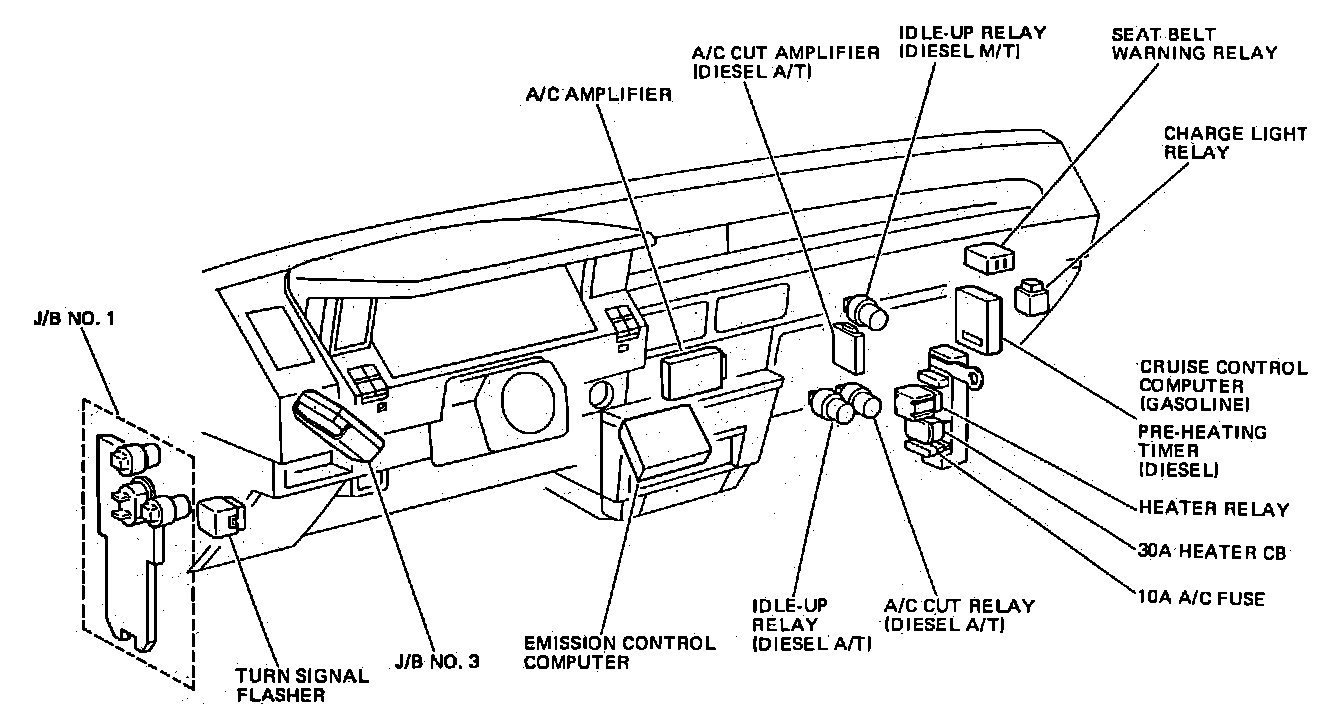

Engine Control Module: Locations

I/P Component Locations.:

Behind Center Of I/P

Applicable to: 1984-86 FF Models
