Control Units

CONTROL UNITS LOCATION

Component Location

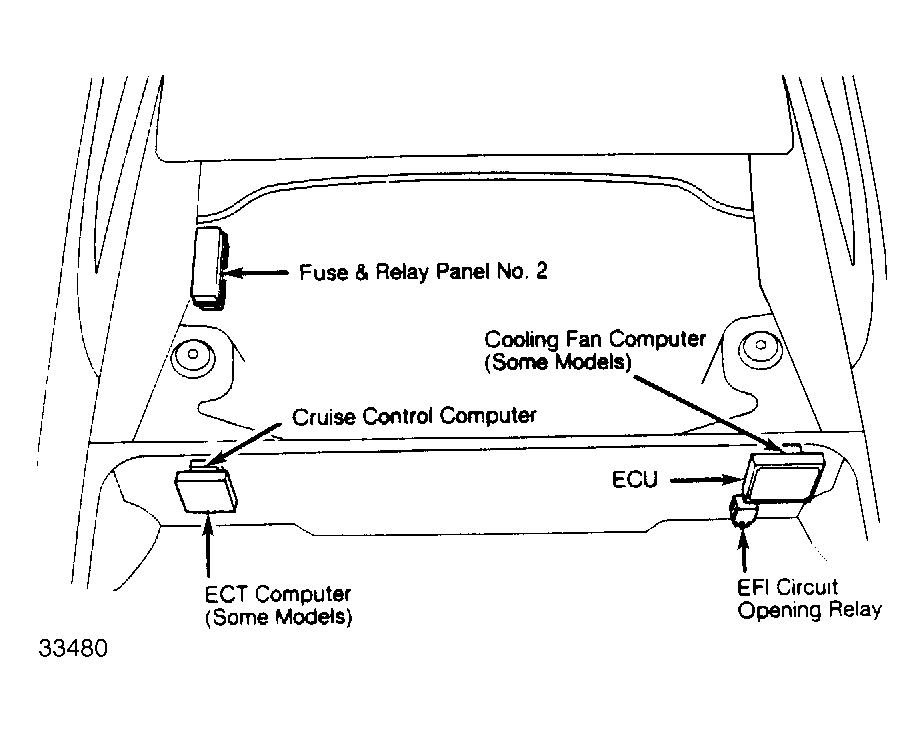

Cooling Fan Computer (Some Models) Right front corner of rear luggage compartment (behind ECU). See Figure.

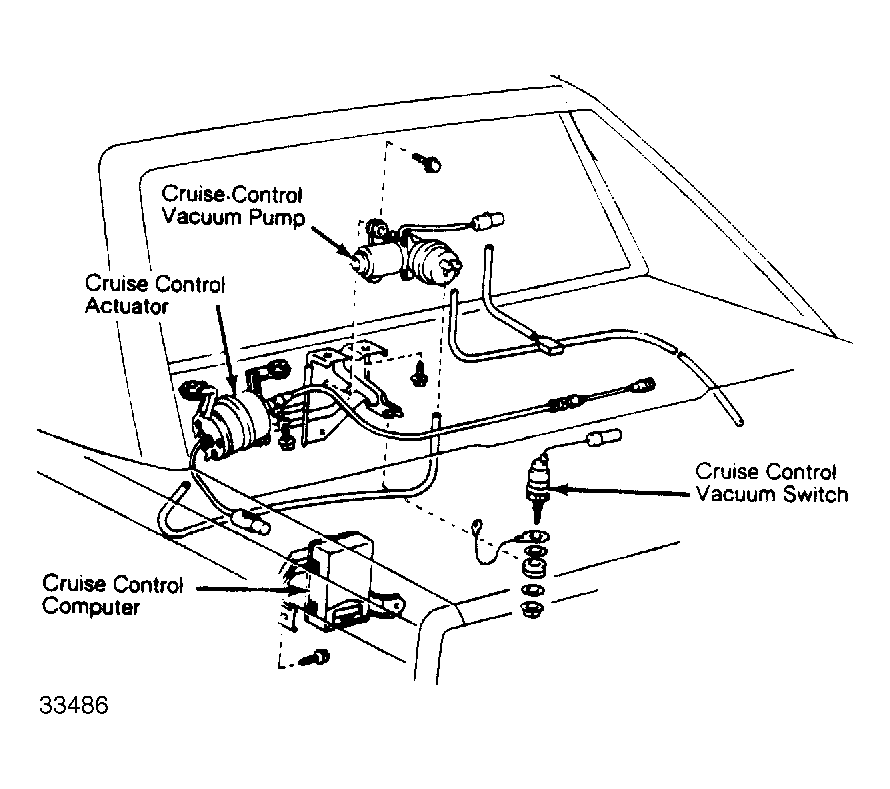

Cruise Control Computer Left front corner of rear luggage comp. (behind ECT). See Figure & Figure .

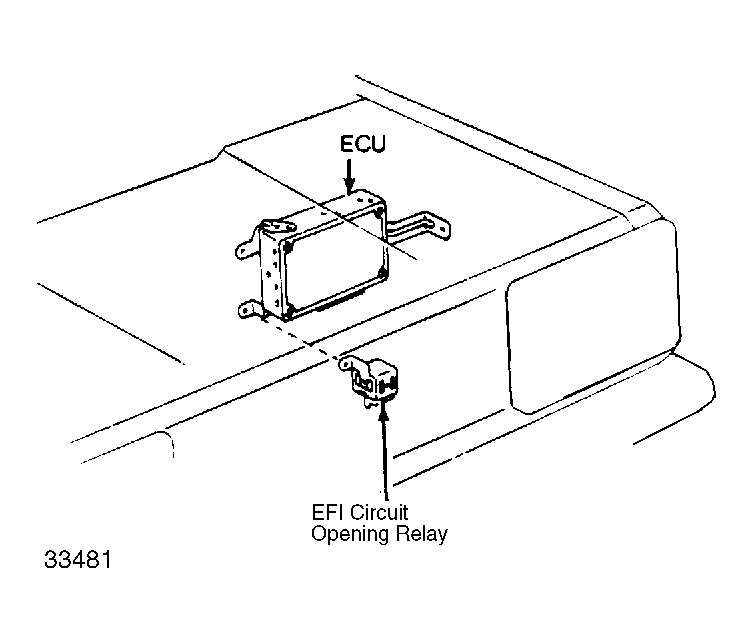

ECU Right front corner of rear luggage compartment. See Figure & Figure .
ECT Computer (Some Models) Left front corner of rear luggage compartment. See Figure.
