Control Module: Locations

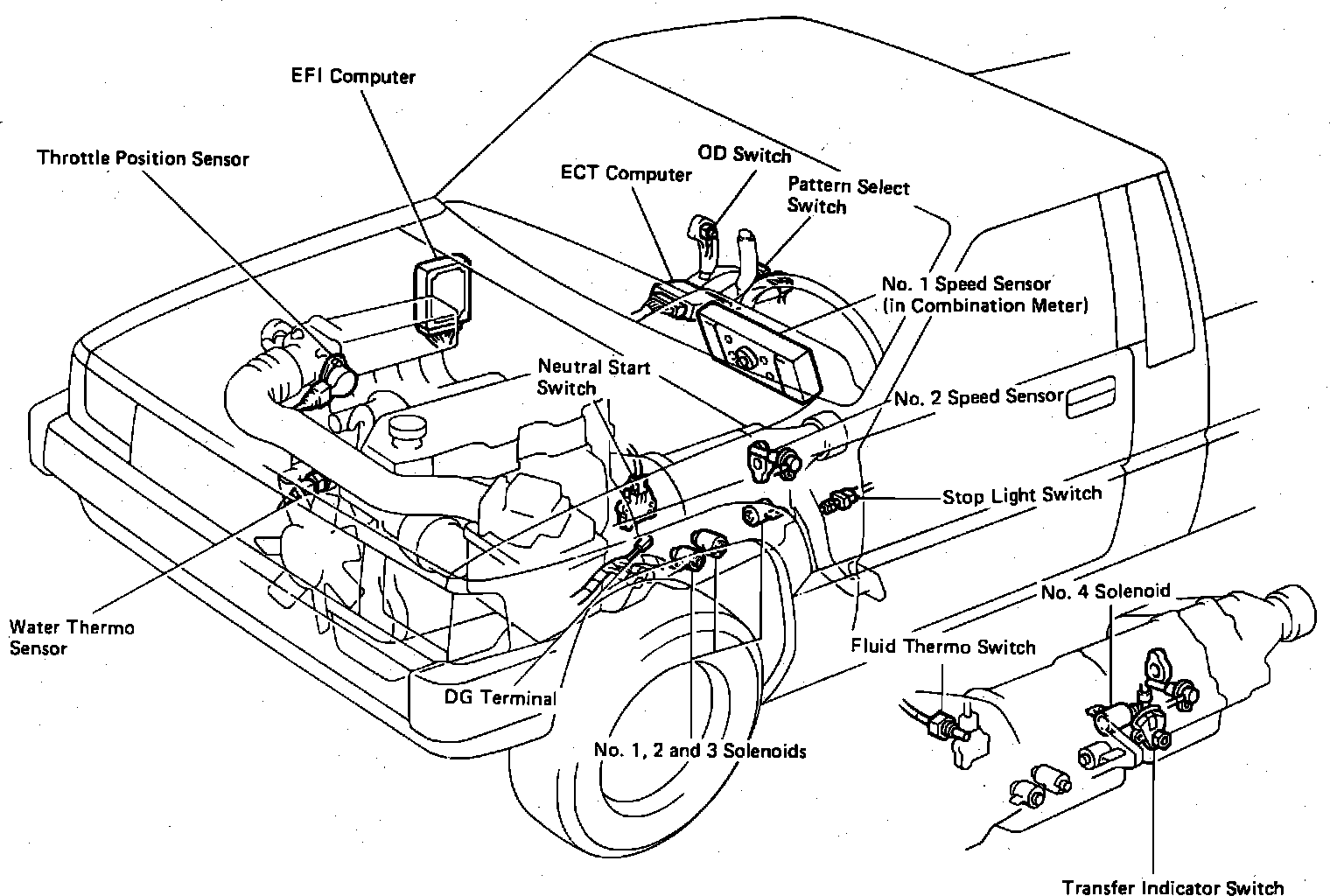

Electronically Controlled Automatic Transmission Component Location.:




Behind Center Of I/P

Applicable to: 1985-86 Models w/A340E Trans
