A/C Amplifier

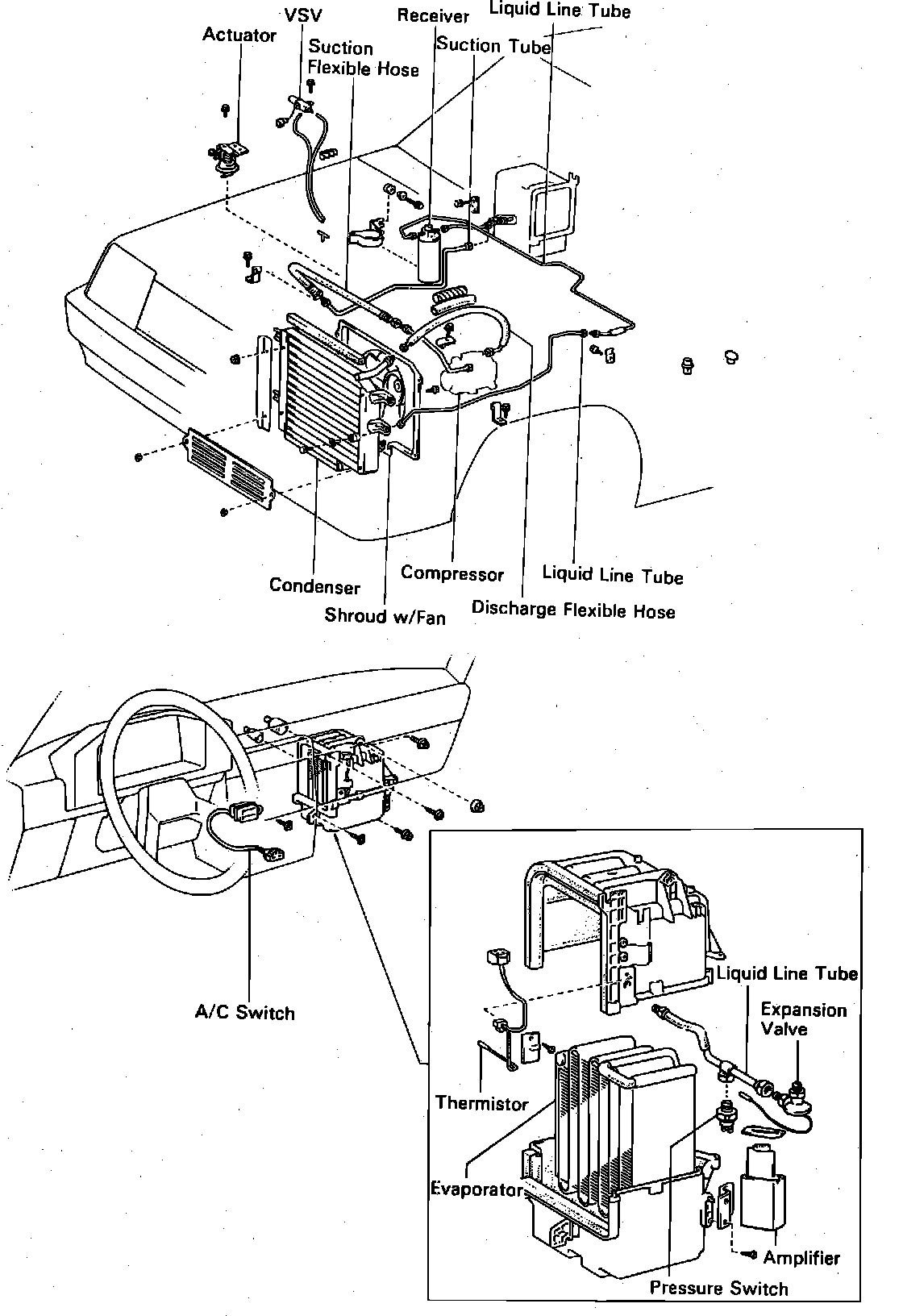

A/C System Component Locations.:
Behind RH Side Of I/P, At Cooling Unit
Applicable to: 1984-86 Models
