Alignment: Specifications

FRONT WHEEL ALIGNMENT

PART 1

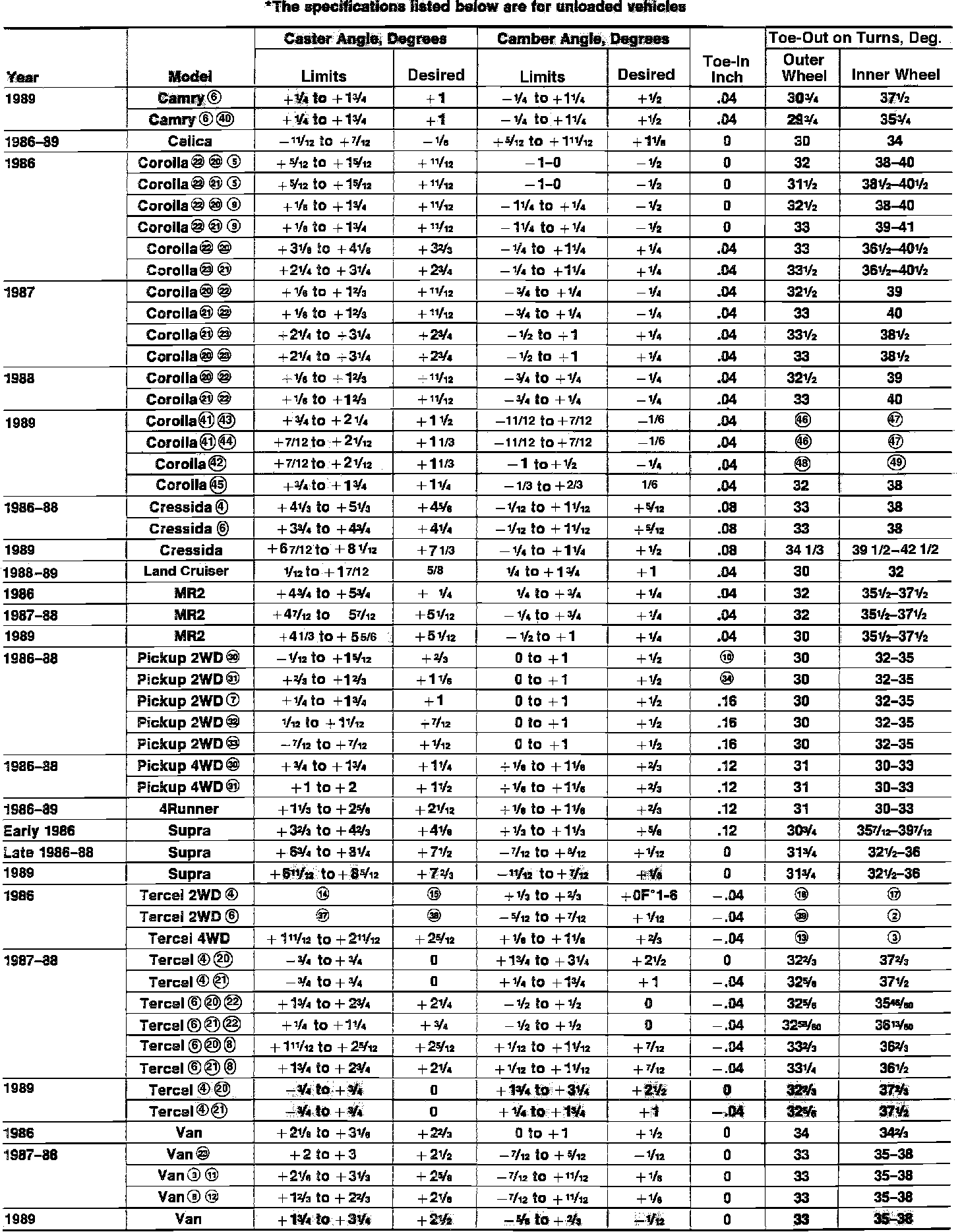

Front Alignment Specifications (86-89, Part 1):

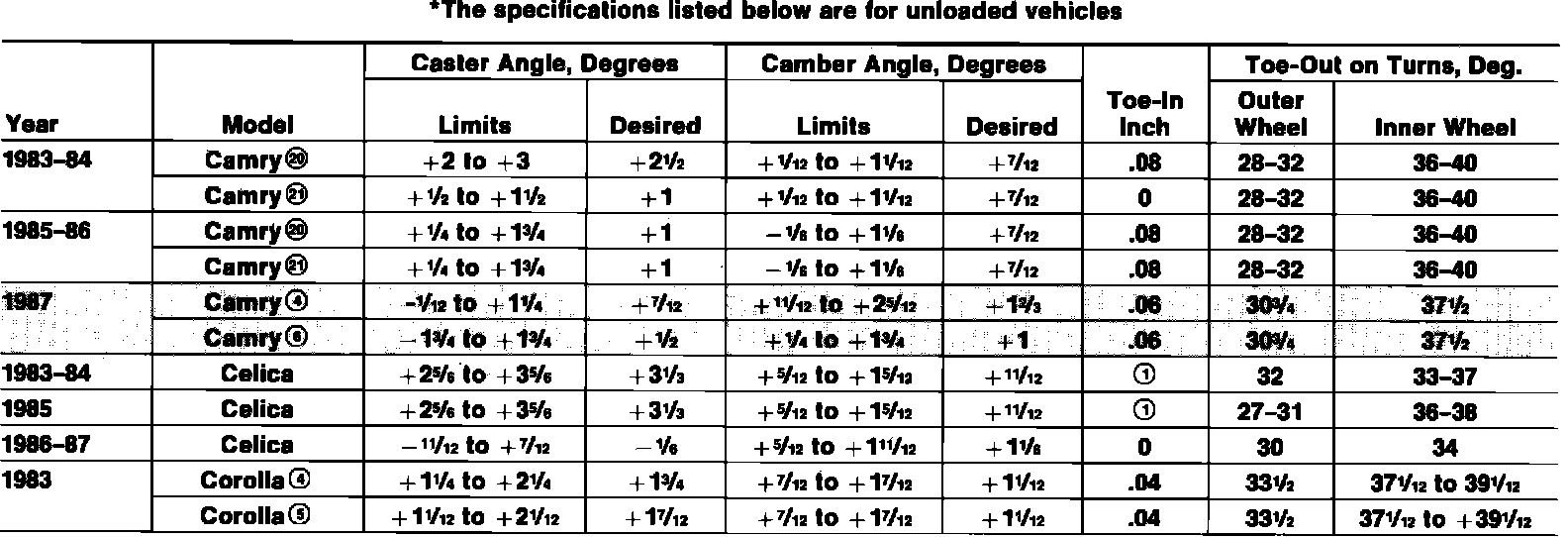

Front Alignment Specifications (83-87, Part 1):

PART 2

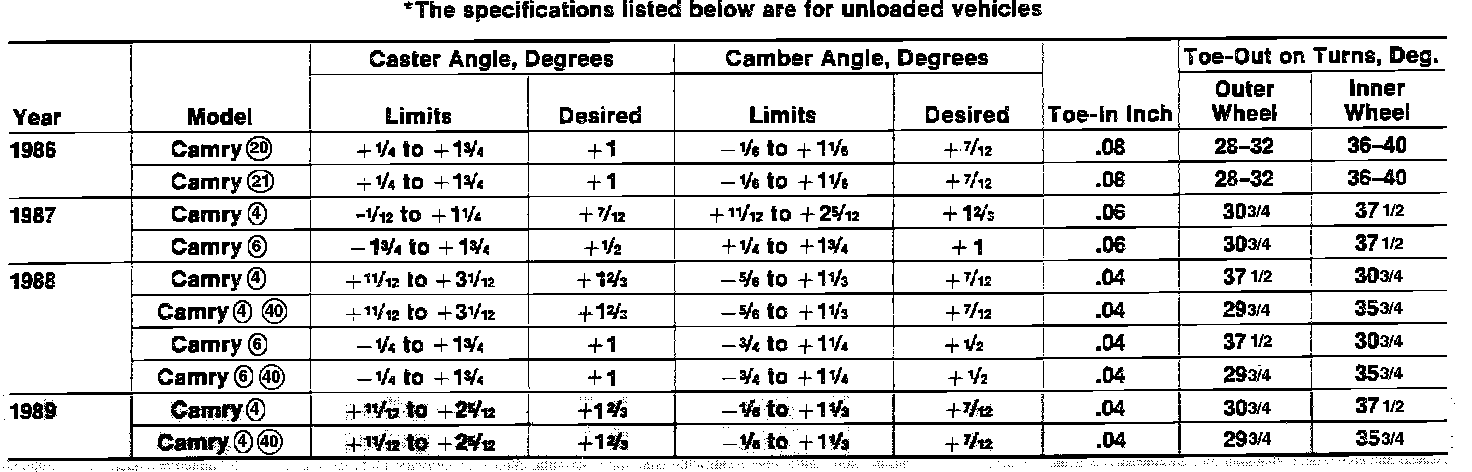

Front Alignment Specifications (86-89, Part 2):

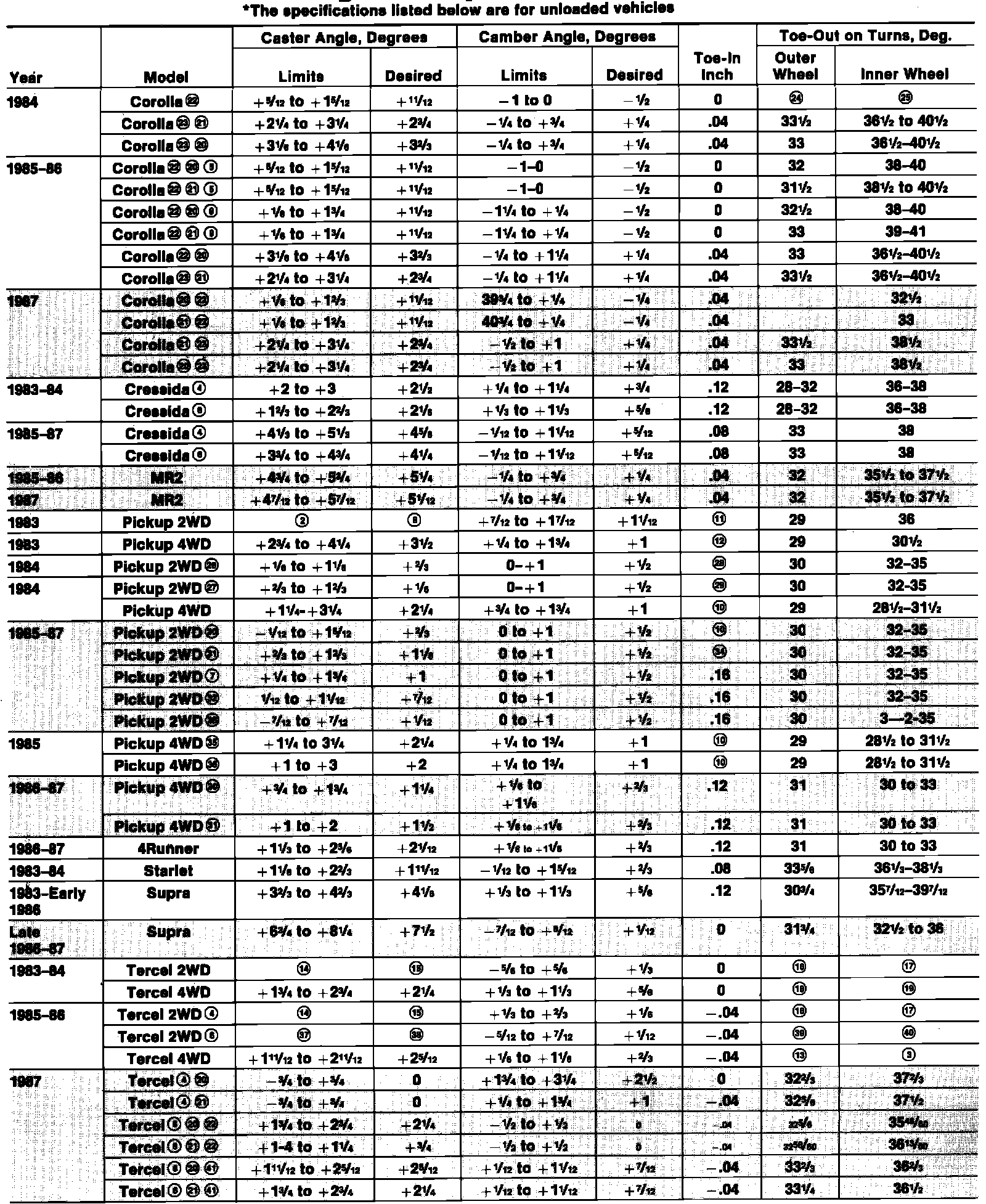

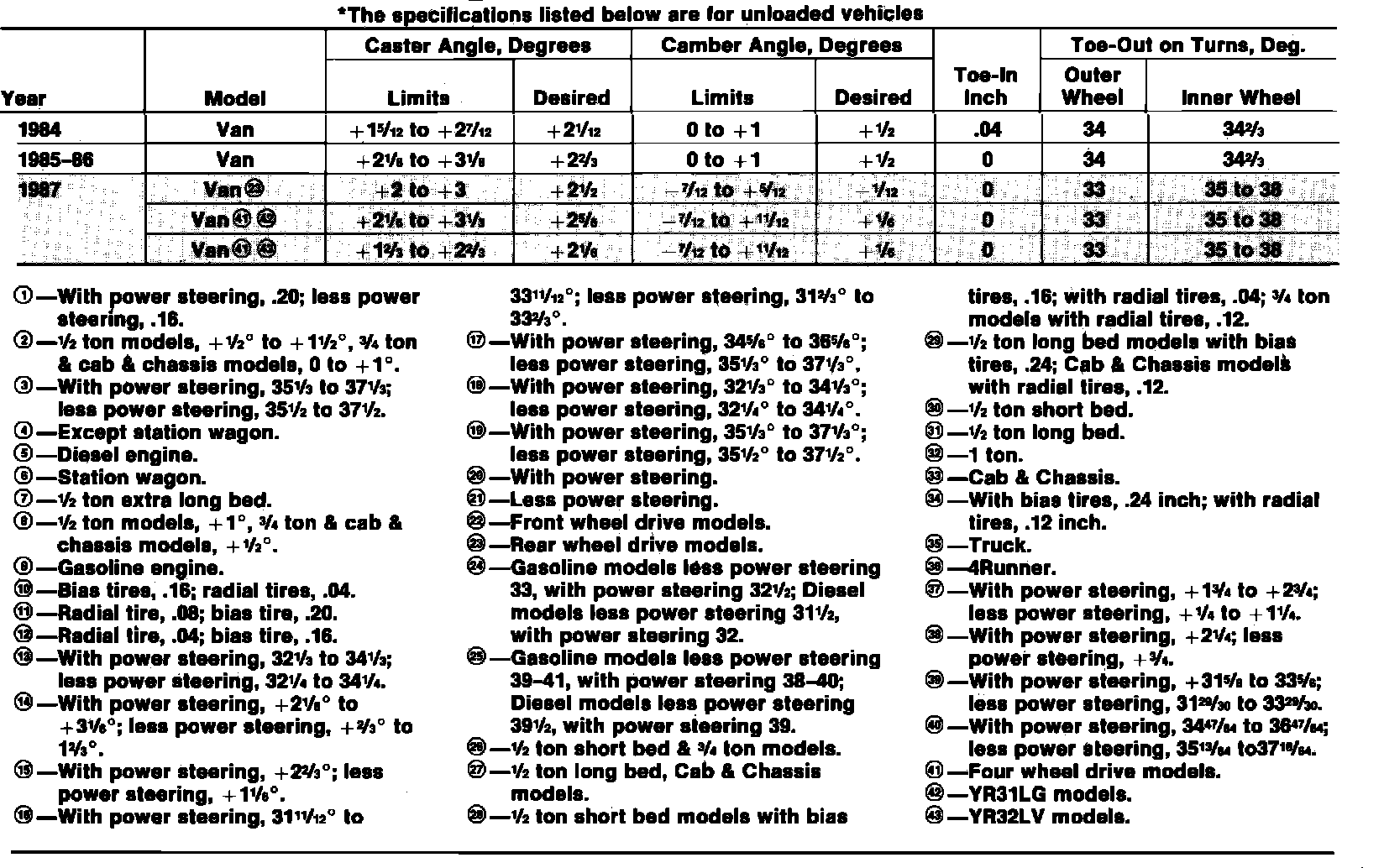

Front Alignment Specifications (83-87, Part 2):

PART 3

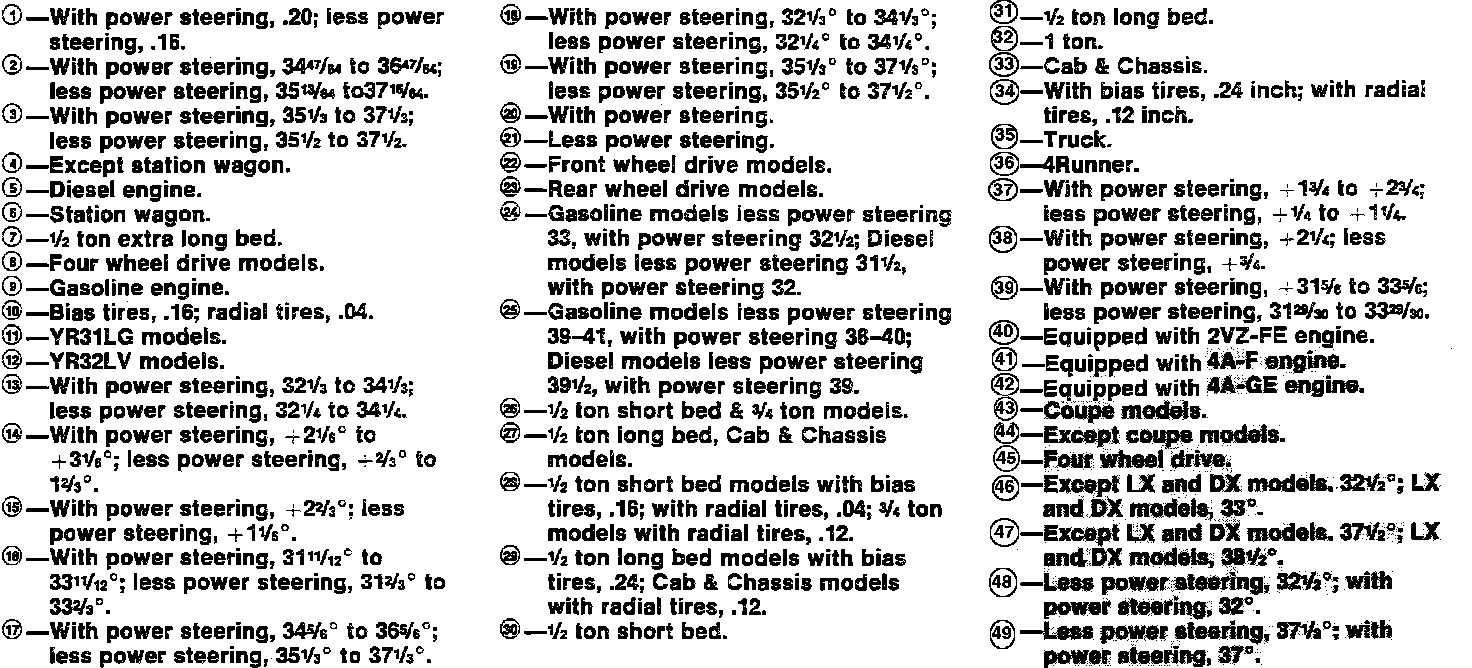

Front Alignment Chart Footnotes (86-89):

Front Alignment Specifications (83-87, Part 3):

REAR WHEEL ALIGNMENT

PART 1

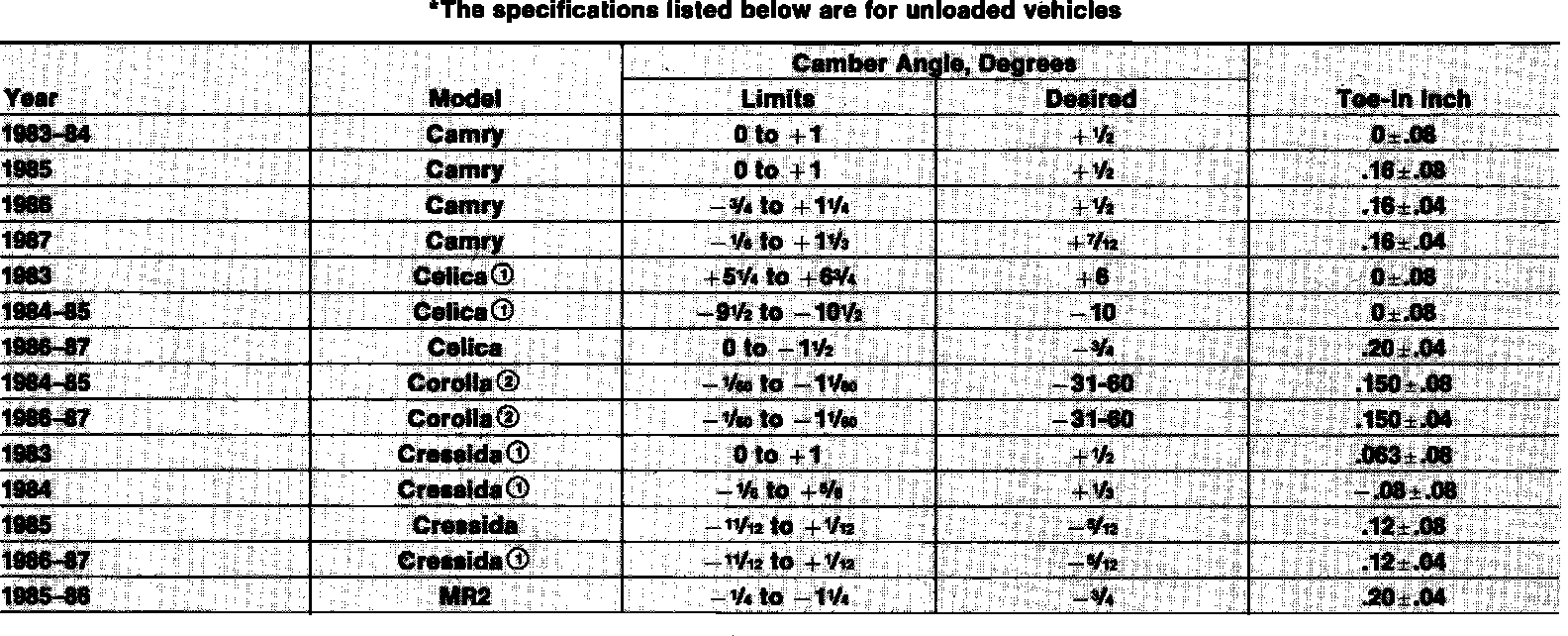

Rear Alignment Specifications (83-87, Part 1):

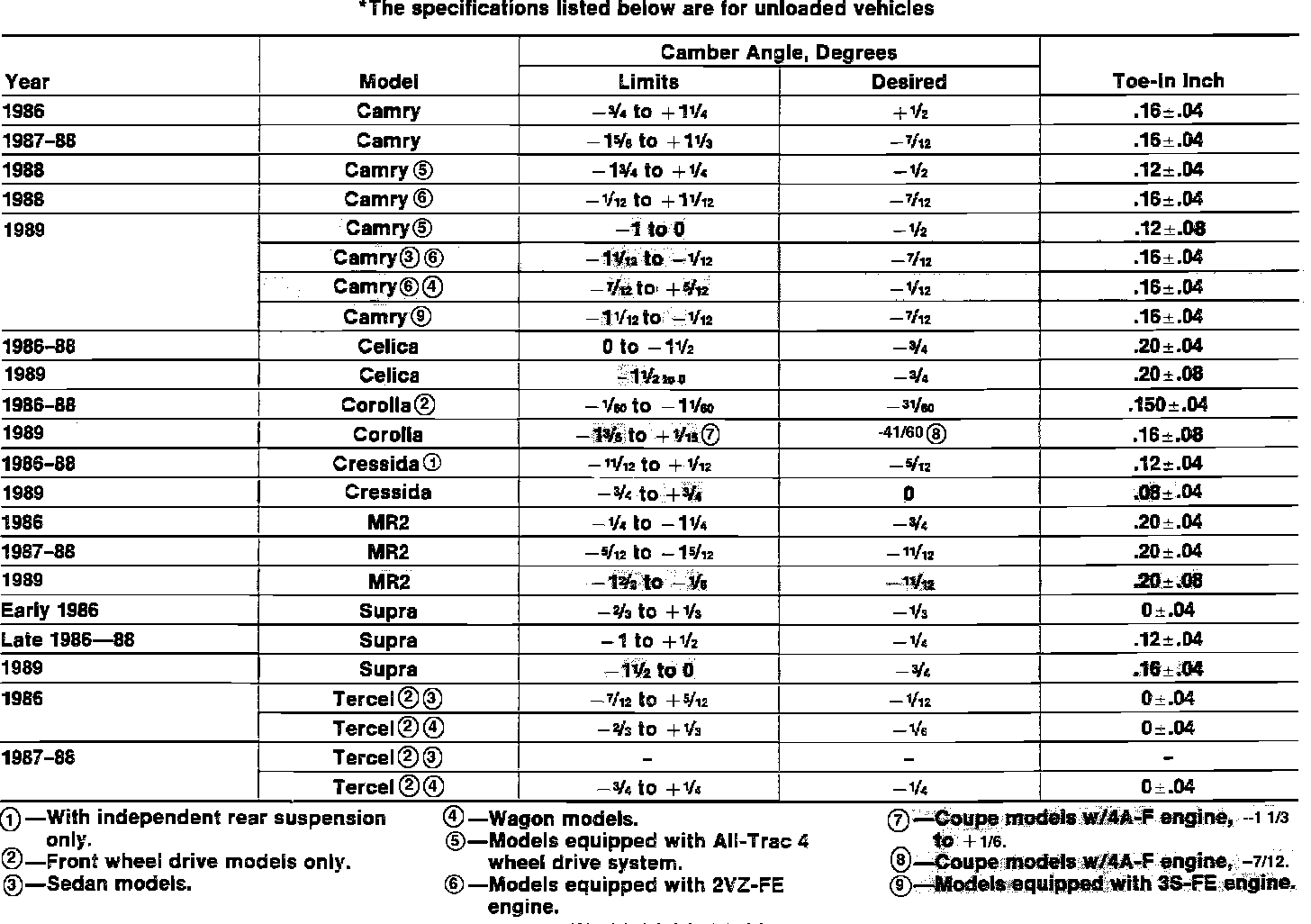

Rear Alignment Specifications (86-89):

PART 2

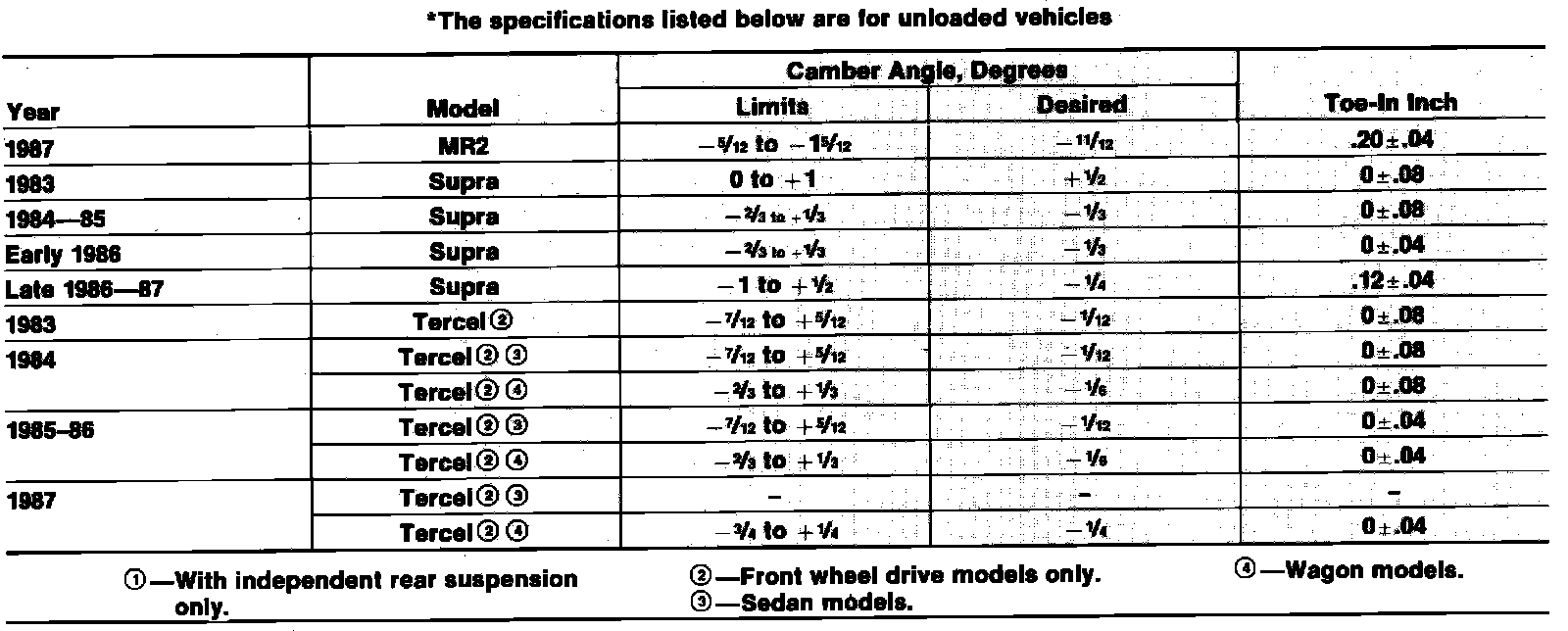

Rear Alignment Specifications (83-87, Part 2):
