Carburetor - AISAN 2-Bbl: Adjustments: Unloader

Fully open primary throttle valve, insert angle gauge, and measure choke valve angle. Choke valve angle should measure 45°. Adjust by bending primary throttle arm. See Fig 1.

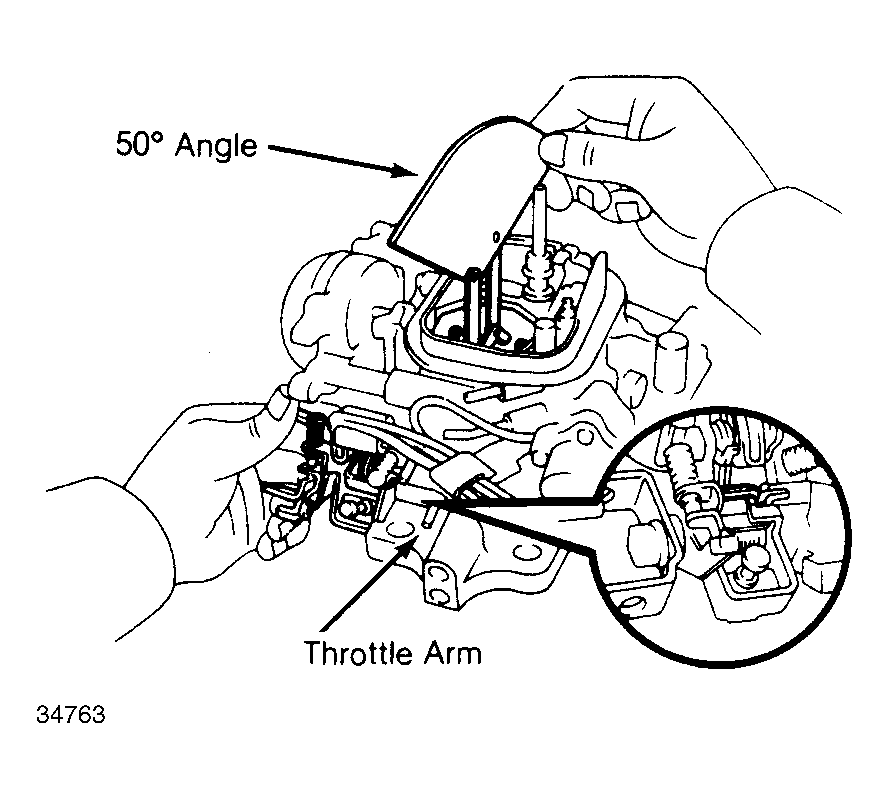

Fig 1: Choke Unloader & Throttle Valve Adjustment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
