Check Engine Light Off

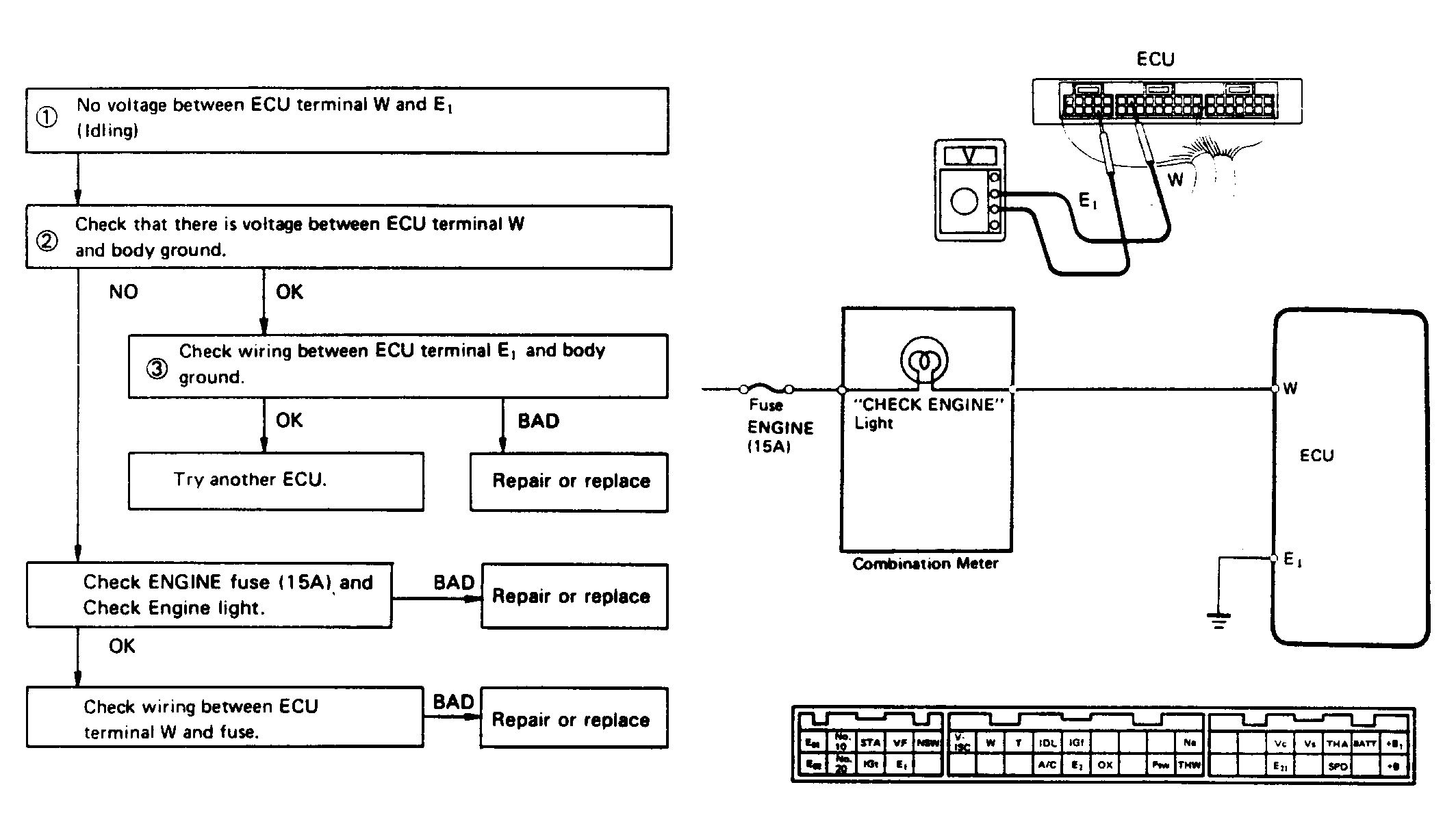

Fig 1: Terminals W & E1
G48556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
