Cruise Control Computer Circuit Test Charts

Turn ignition off and unplug electrical connector from computer. Ensure terminals are clean and in good condition. Test circuits using appropriate CRUISE CONTROL COMPUTER CIRCUIT TEST SEQUENCE chart.

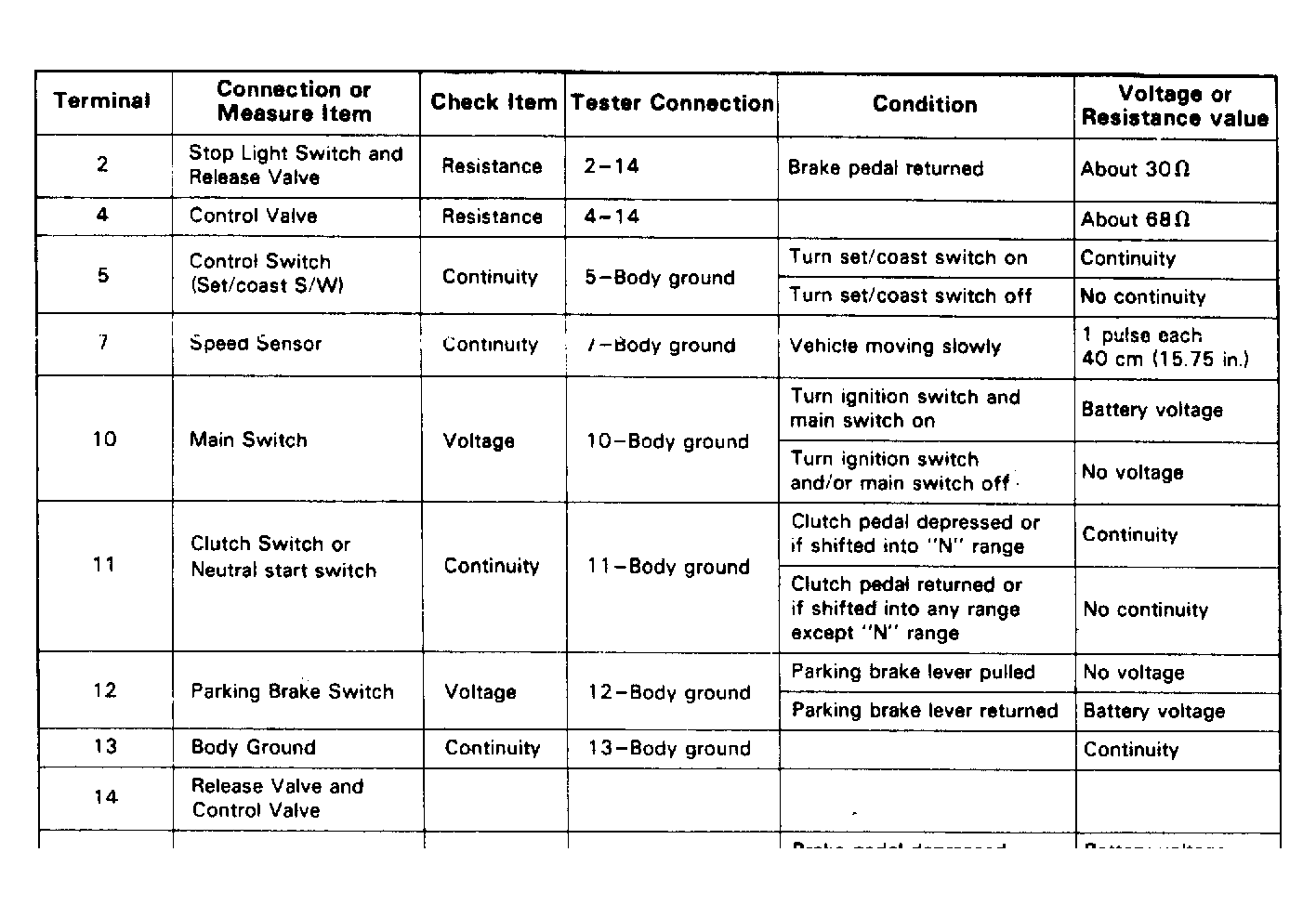

Fig 1: Cruise Control Test Sequence (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

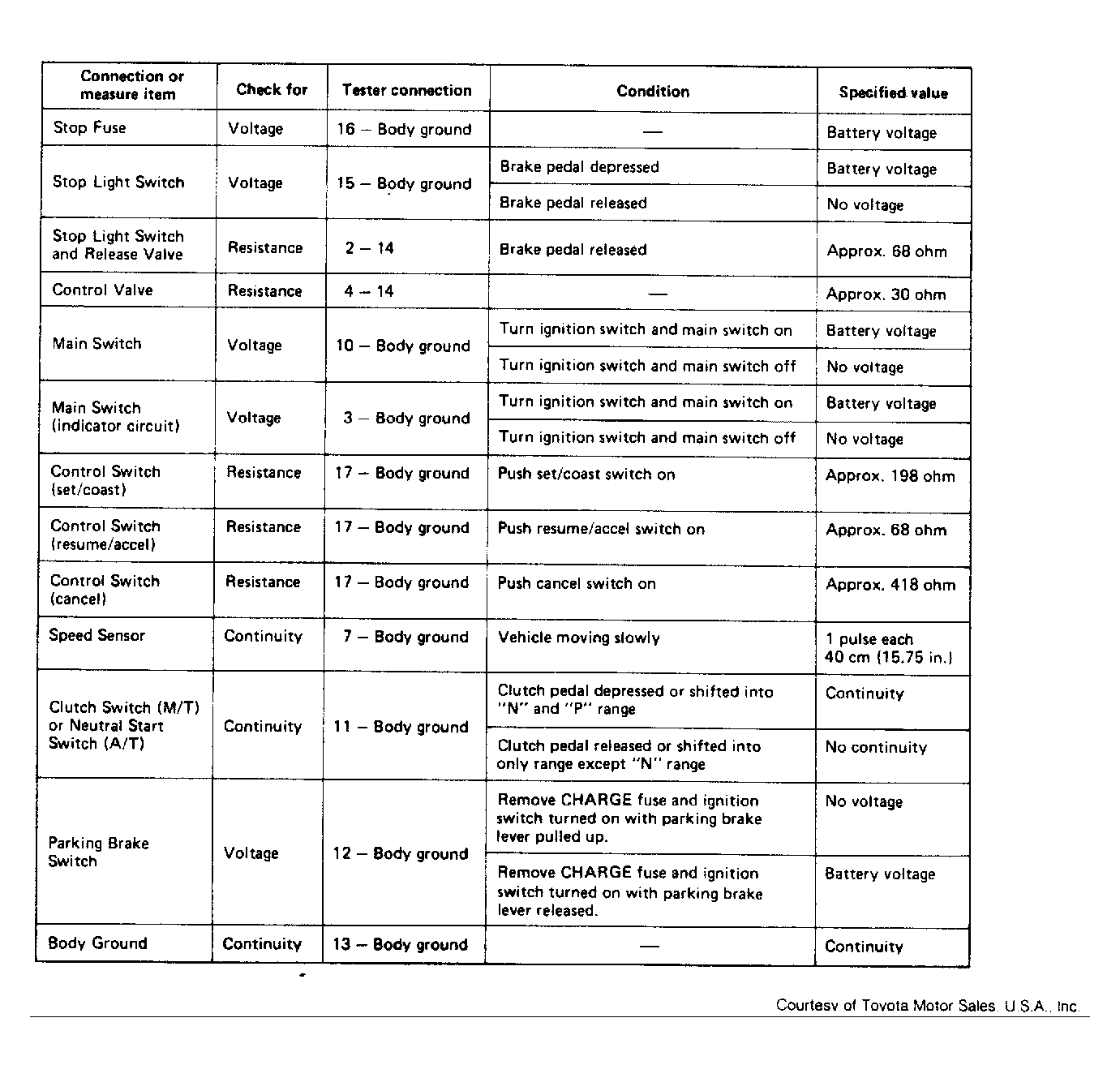

Fig 2: Cruise Control Test Sequence (Pickup & 4-Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

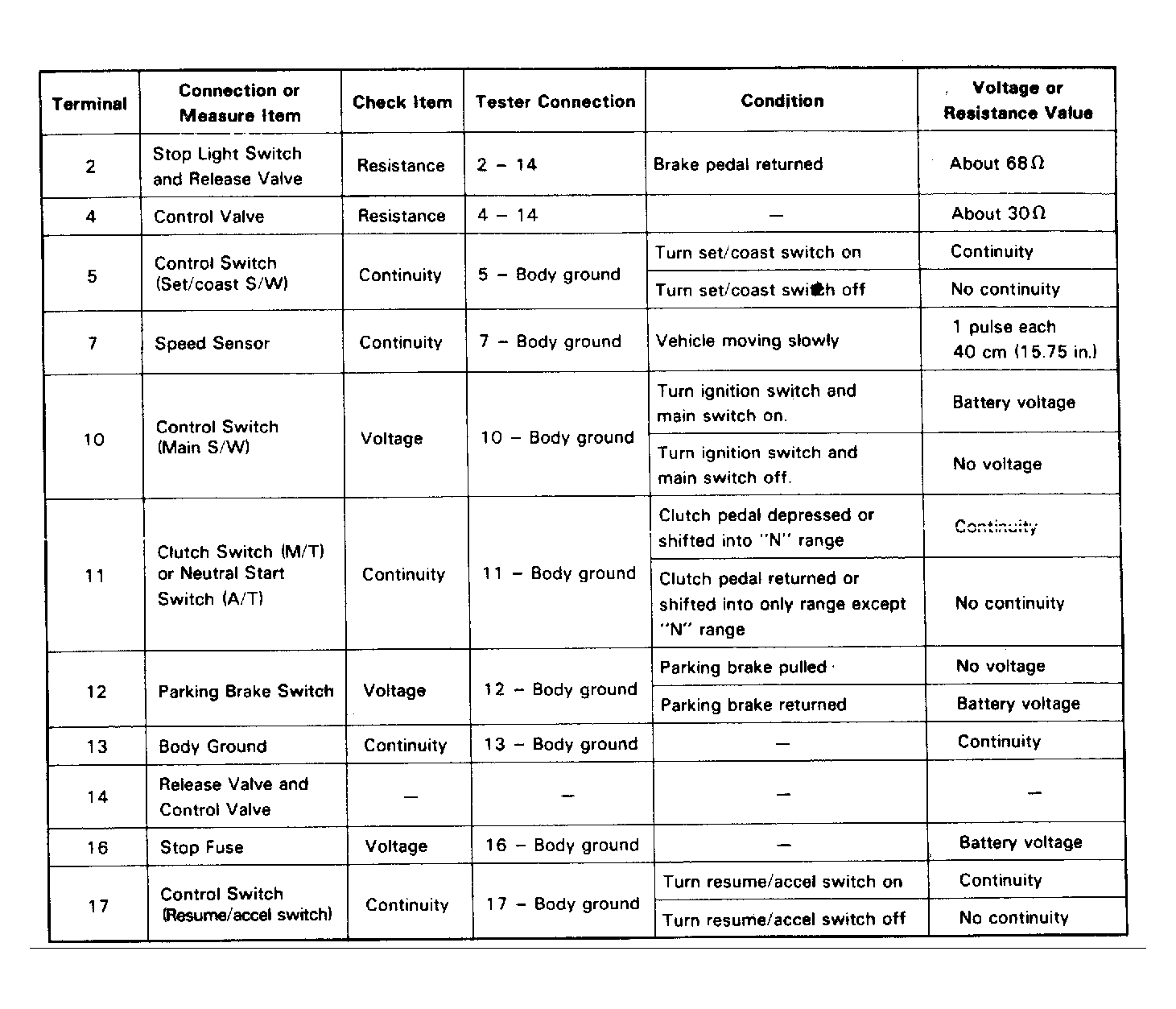

Fig 3: Cruise Control Test Sequence (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

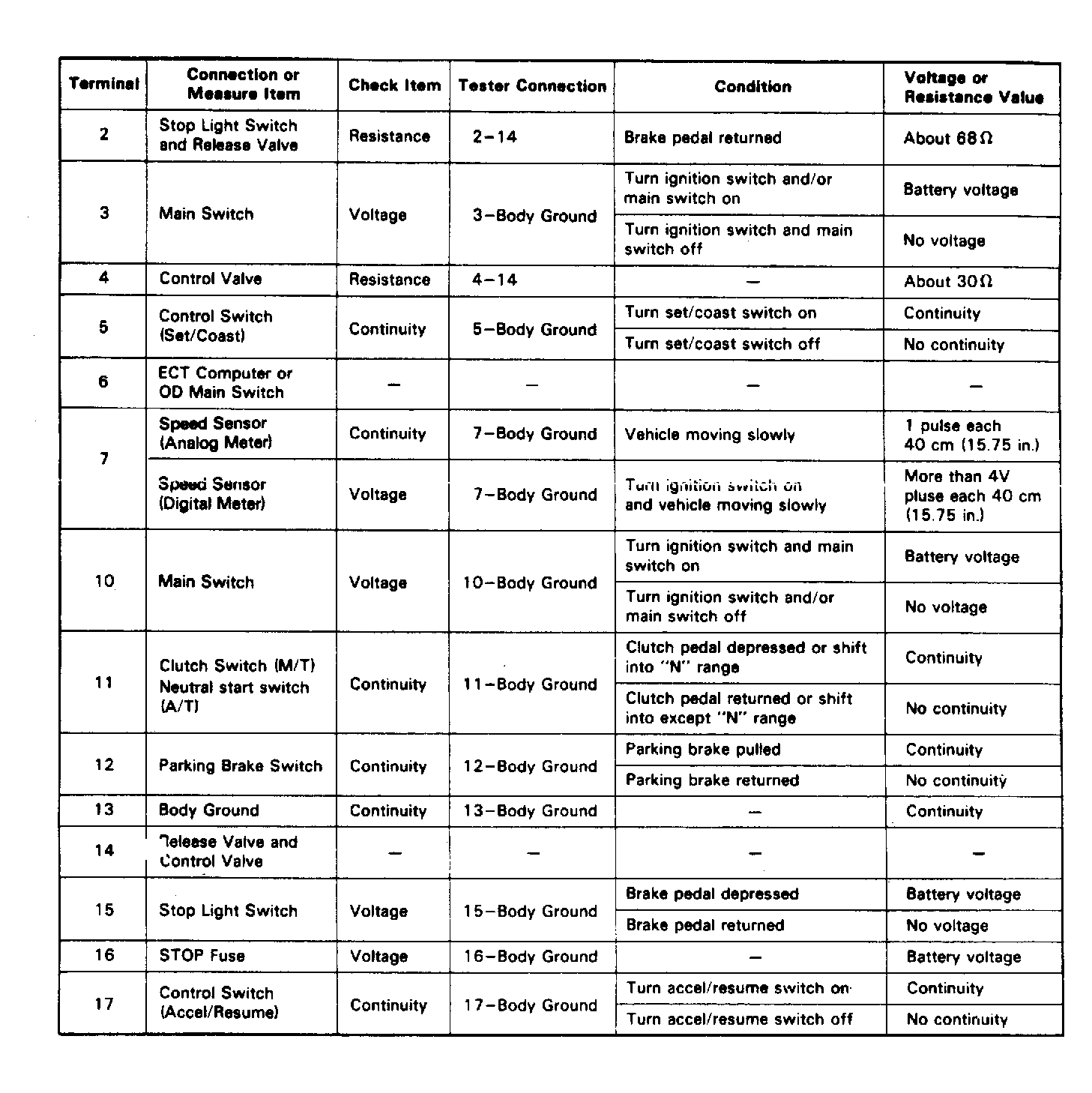

Fig 4: Cruise Control Test Sequence (Cressida)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

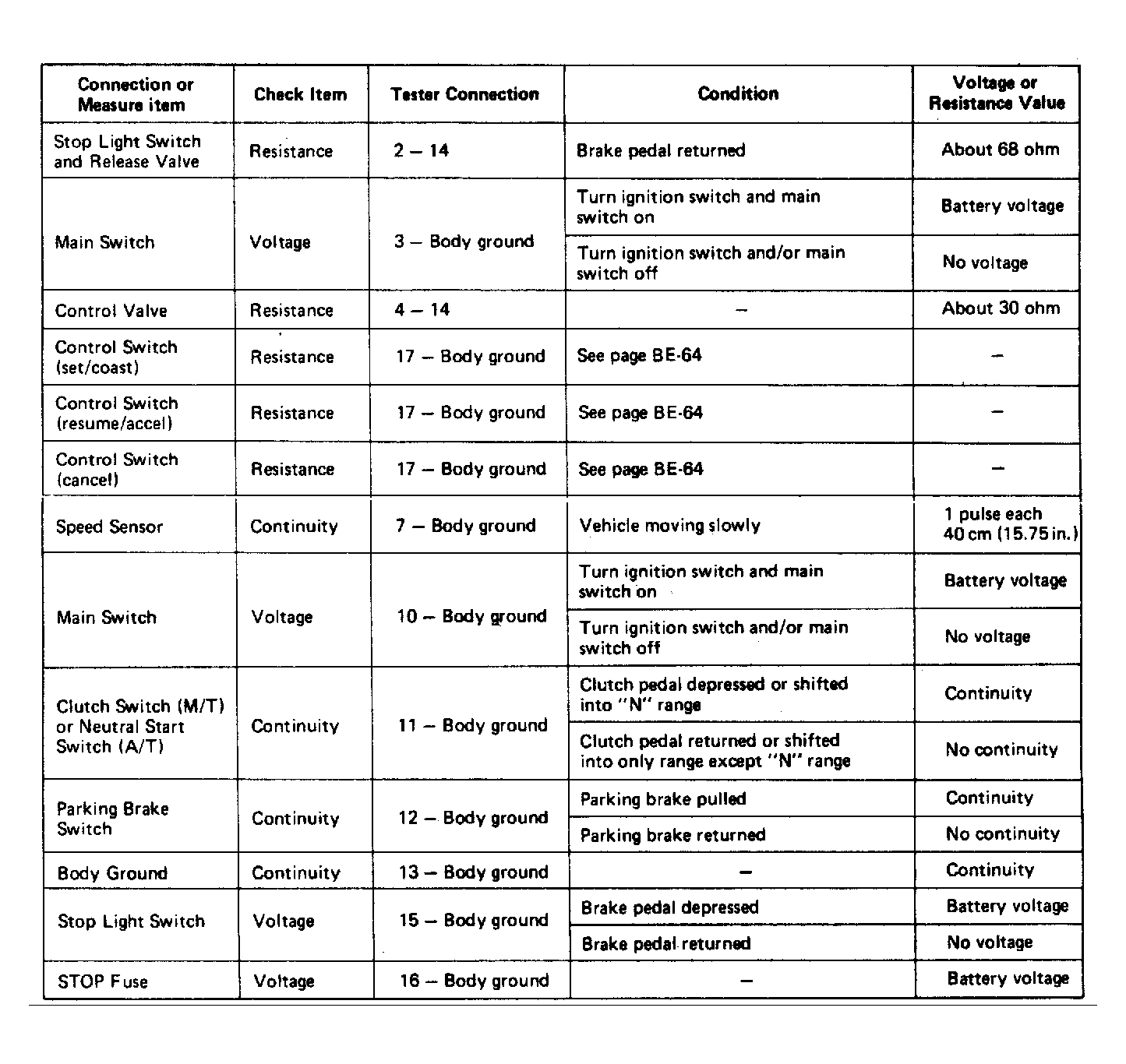

Fig 5: Cruise Control Test Sequence (Corolla FWD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

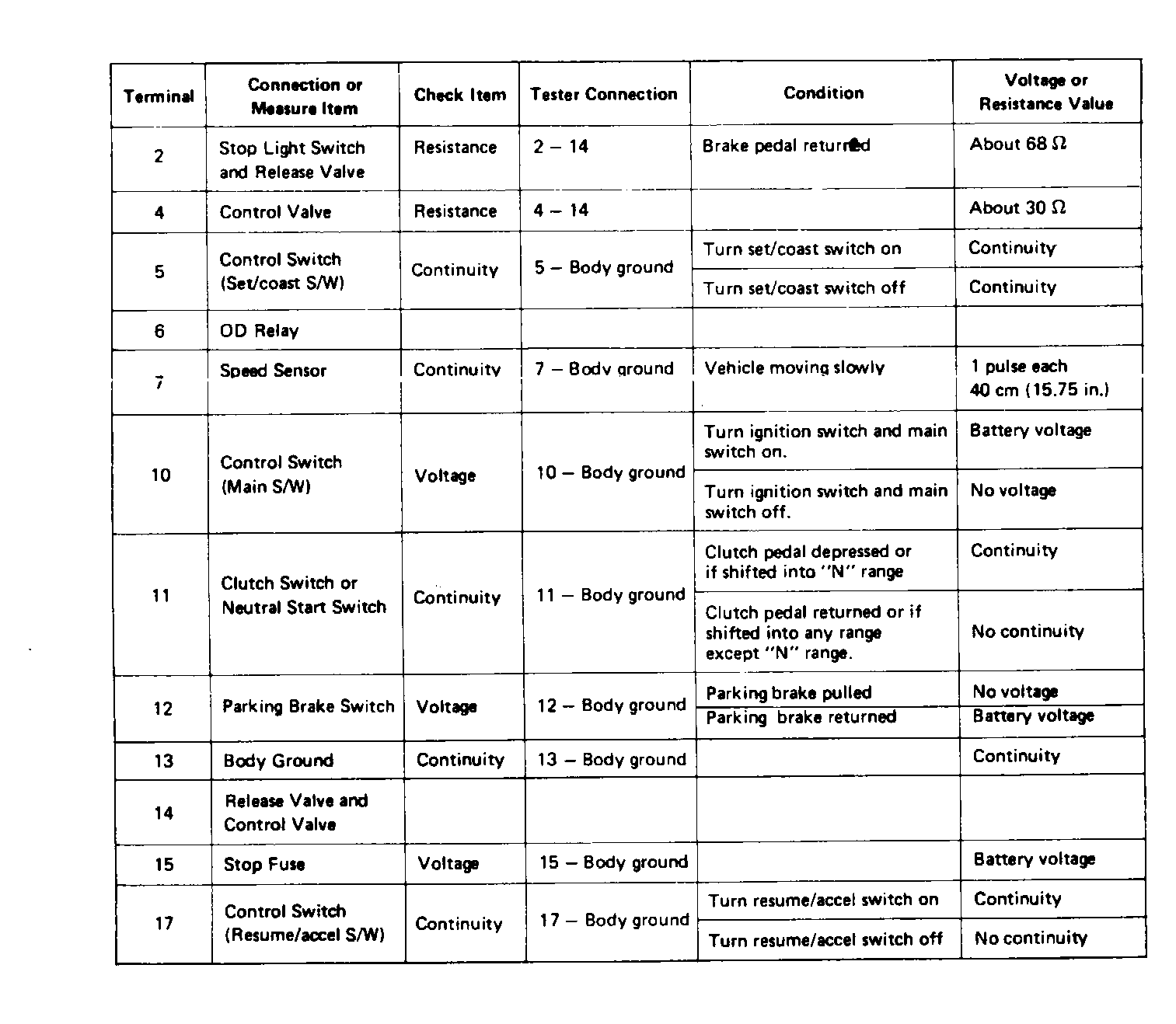

Fig 6: Cruise Control Test Sequence (Corolla RWD)

Fig 7: Cruise Control Test Sequence (Camry)

Fig 8: Cruise Control Test Sequence (Celica)

Fig 9: Cruise Control Test Sequence (1986 1/2 Supra)
