Source Of Waveform

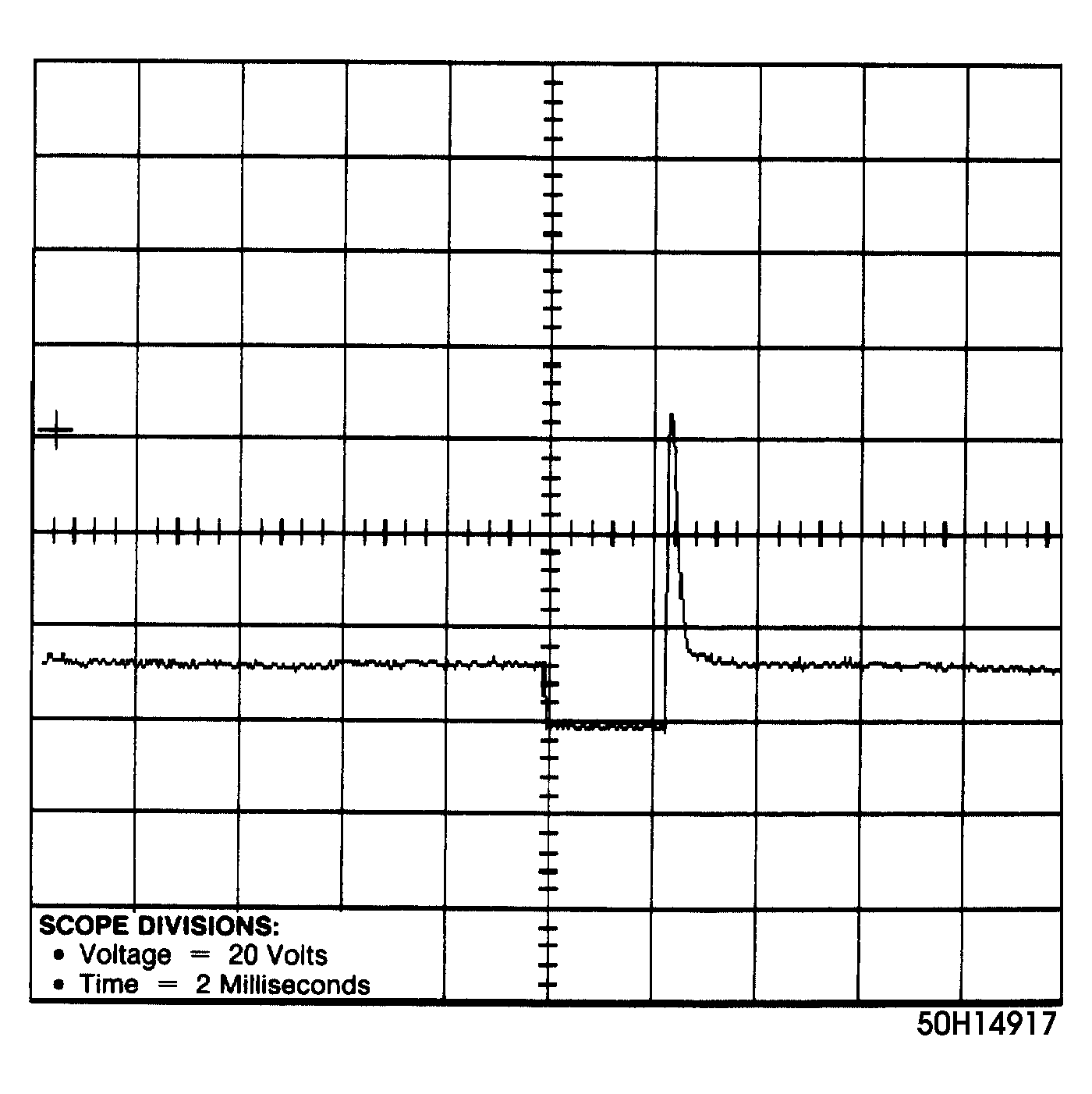

The Source Vehicle Information Table describes the vehicle the waveform came from. It is not needed for interpretation and is included for reference only. See Figure.
SOURCE VEHICLE INFORMATION
| Application | Specification |
|---|---|
| Year | 1987 |
| Make | Toyota |
| Model | Pickup |
| Engine | 2.4L In-Line 4 22R-E PFI VIN [R] |
| Ignition Type | Distributor w/Magnetic Pickup |
| Trans Type | Manual Transmission |
| Mileage | 59,769 |
| VIN Code | - - - R N - - S - H - - - - - - - |
