ISC & Circuit Check

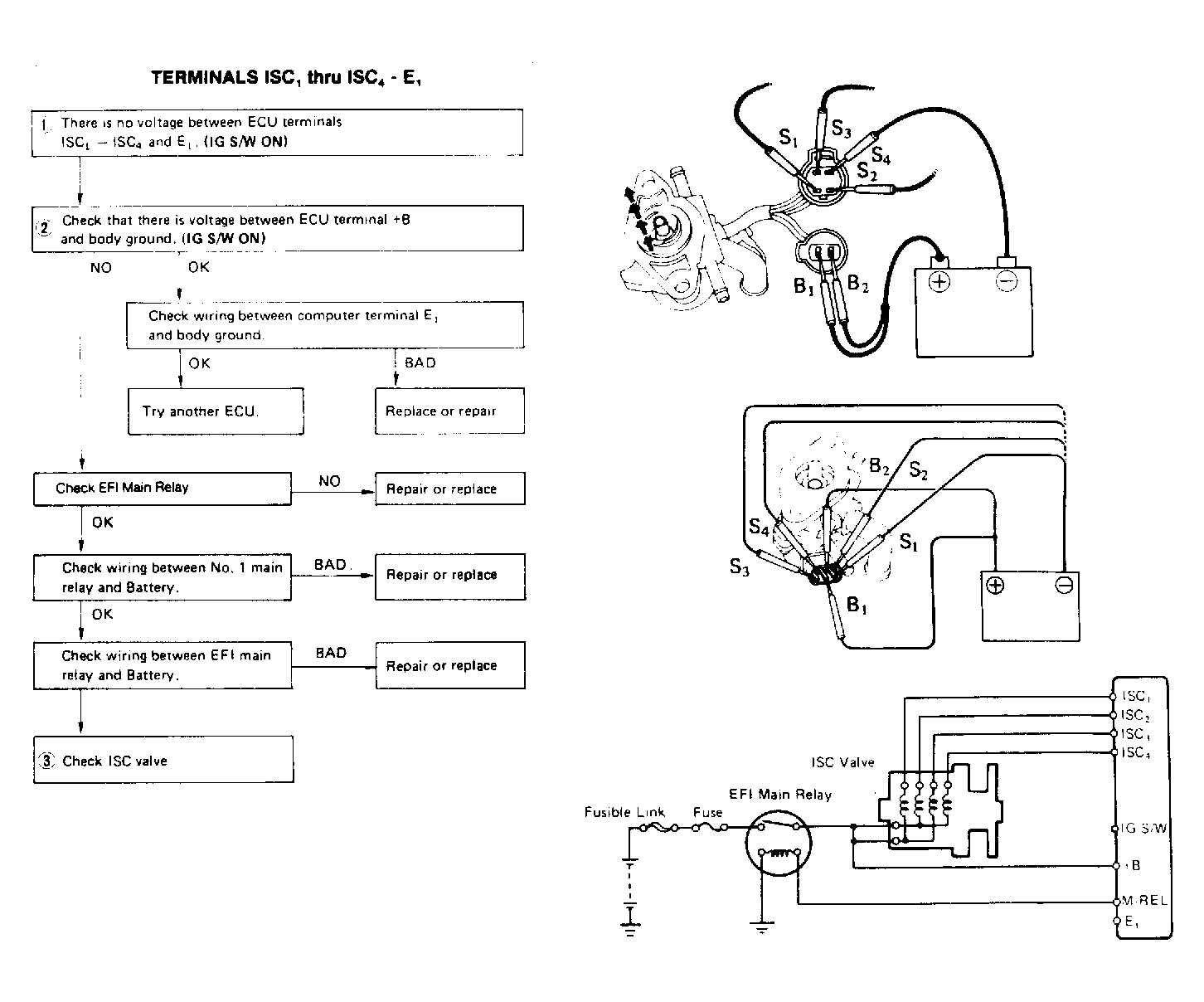

Fig 1: Supra Terminals ISC1 thru ISC4 - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: 1986 1/2 Supra Terminals ISC1 thru ISC4 - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
