Injector Circuits Check

Fig 1: Supra Terminals No. 10 & 20 - E01 & E02
G42856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

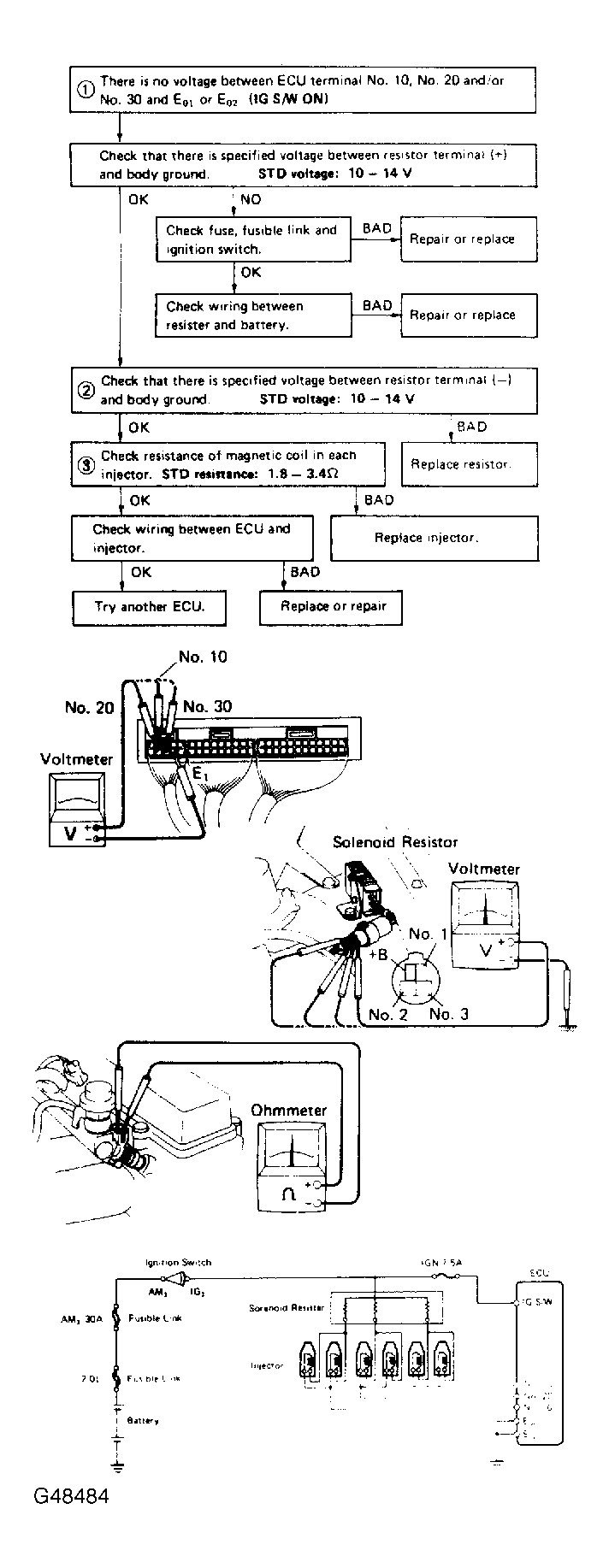

Fig 2: 1986 1/2 Supra Terminals No. 10, 20 30 - E01 & E02
G48484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
