Engine Main Relay
WARNING: This page is about a different car, the 1988 Toyota Celica and 1987 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

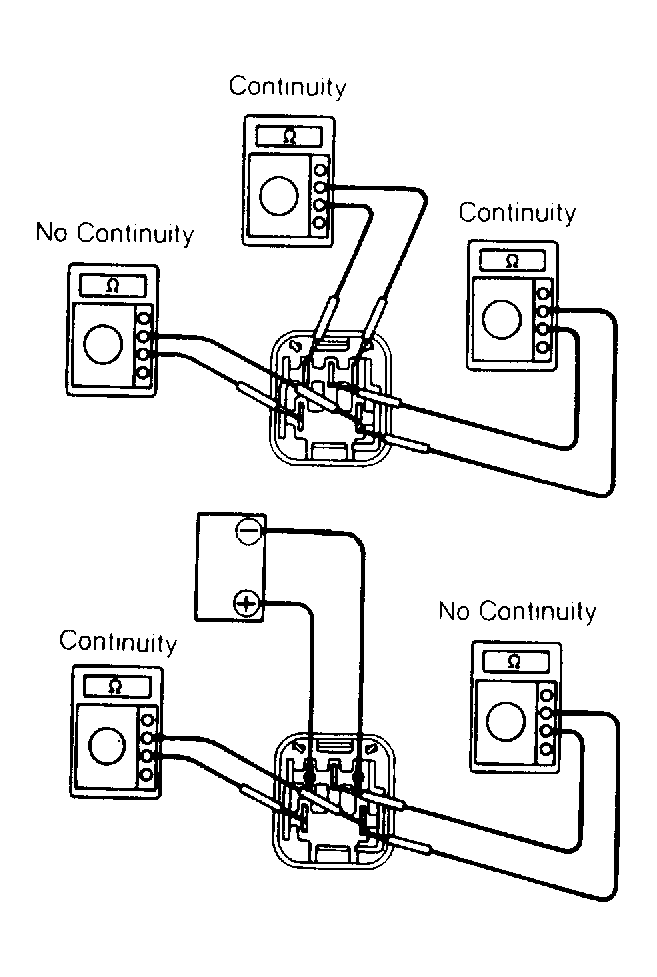

Engine main relay supplies power to cooling fan relay. Relay is located in engine compartment relay and fuse box. Use illustration as guide to test relay. See Fig 1
