ISC & Circuit Check

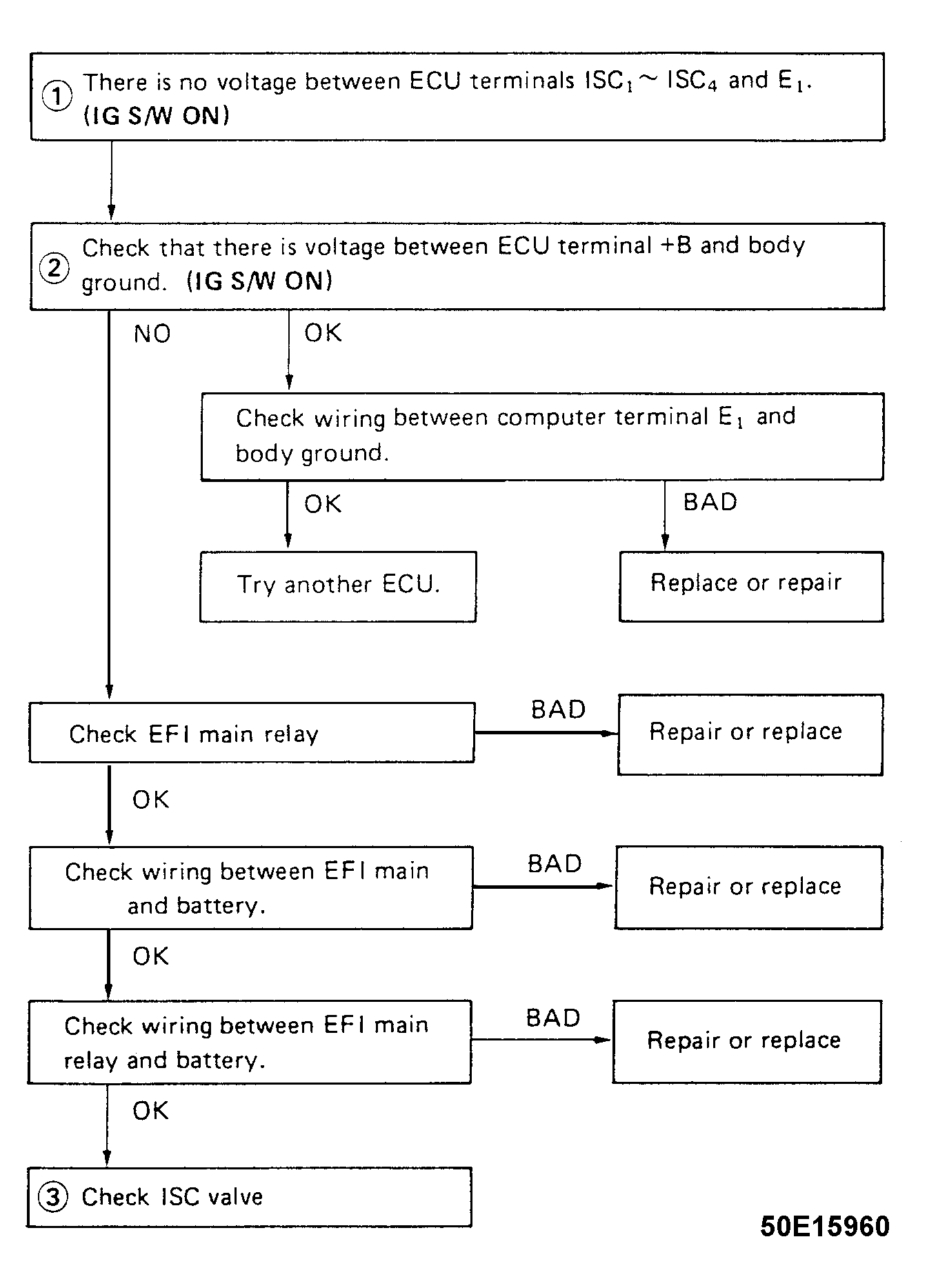

Fig 1: Terminals ISC, thru ISC4 - E1 (1 Of 3)
G50E15960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 Of 3)
G62152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram (3 Of 3)
G62153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

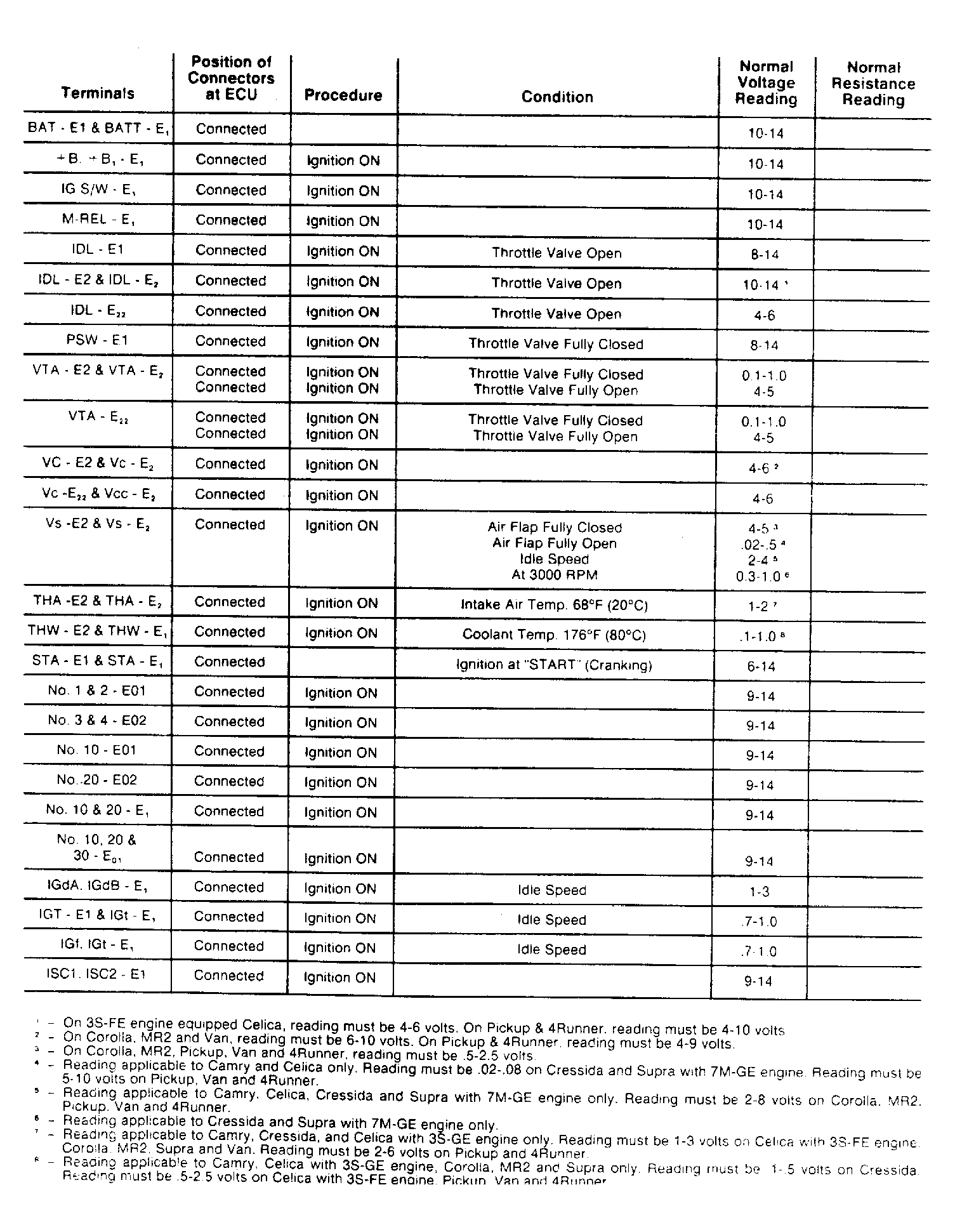

Fig 4: TCCS Voltage & Resistance Specification Chart (1 Of 2)
G72875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

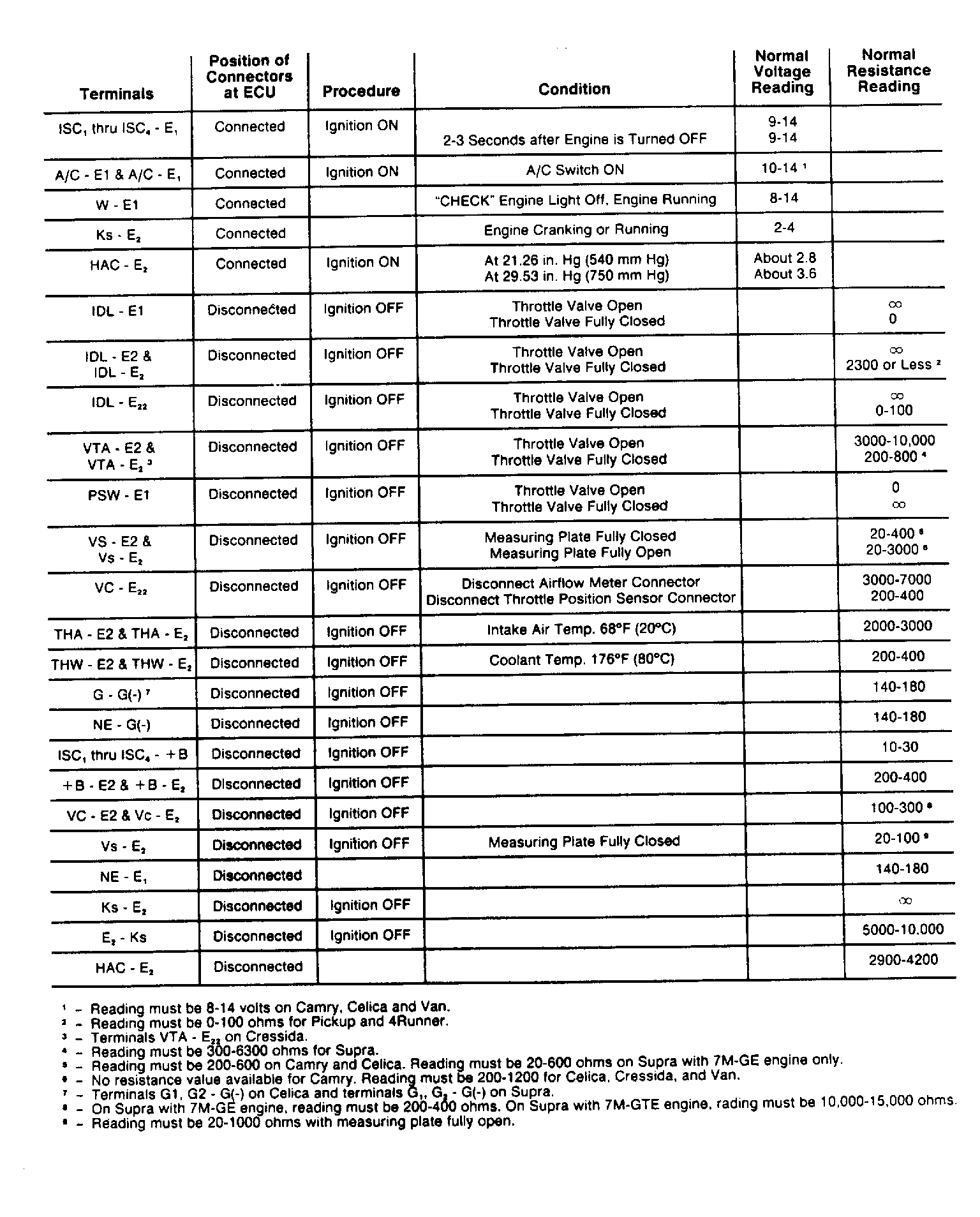

Fig 5: TCCS Voltage & Resistance Specification Chart (2 Of 2)
G72876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
