Wiring Diagrams

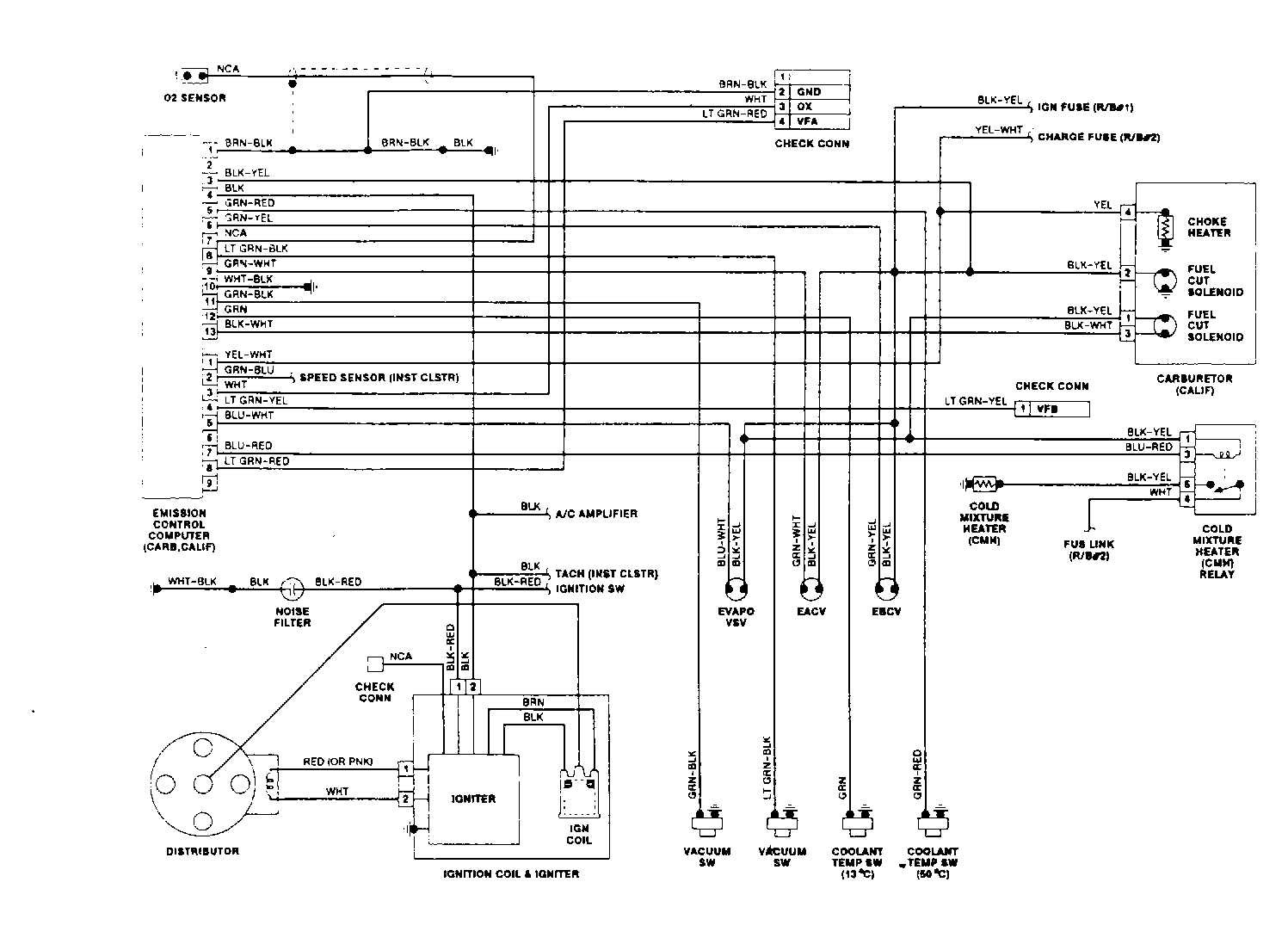

Fig 1: Wiring Diagram (California)
G95477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

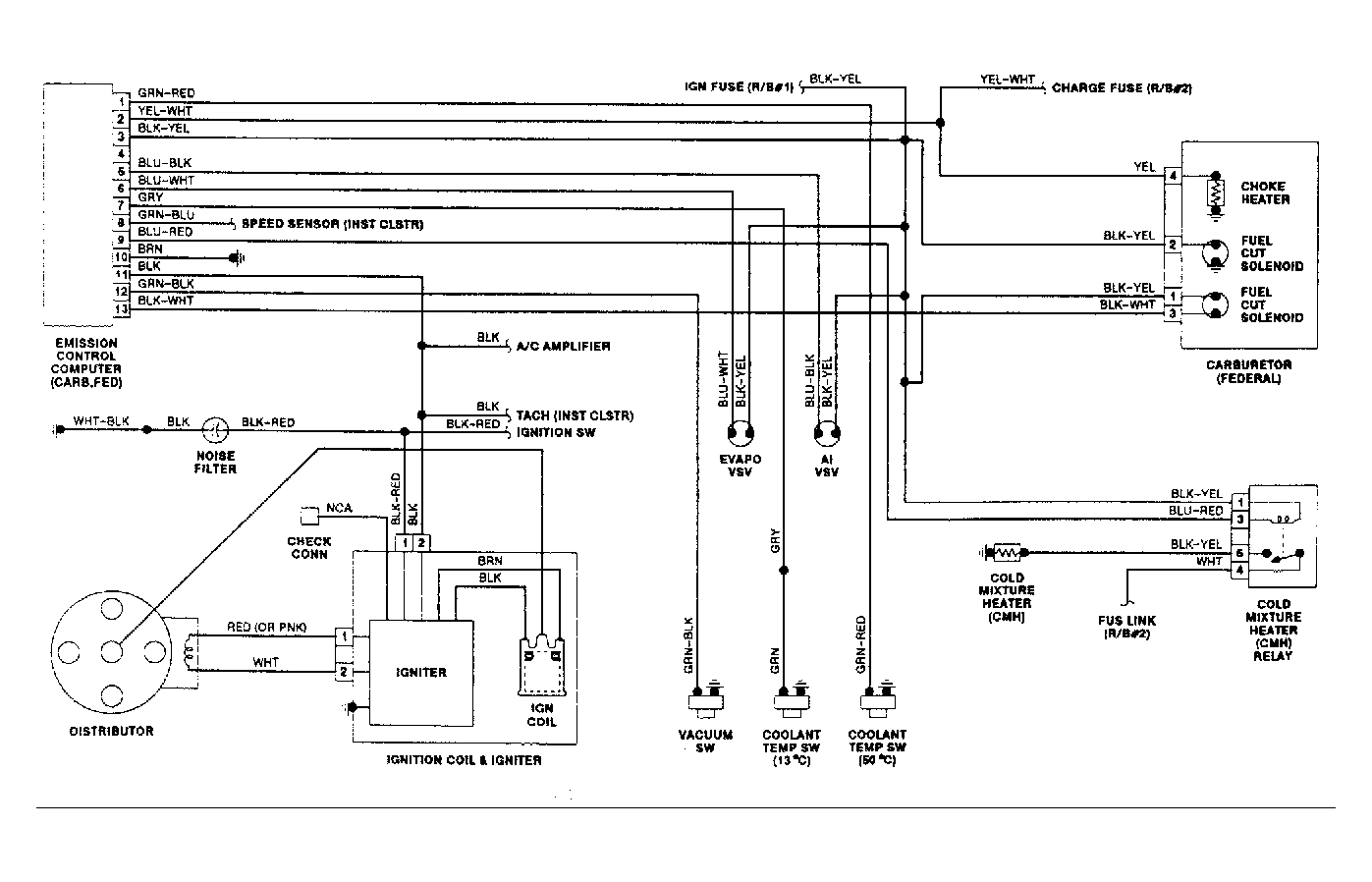

Fig 2: Wiring Diagram (Federal)
G95478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
