Neutral/Start Switch

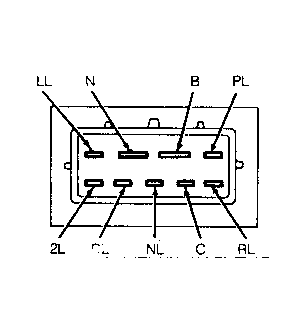

Disconnect switch connector. Note terminal identification. See Fig 1. Using ohmmeter, check for continuity at specified terminals with gearshift in proper range. See NEUTRAL/START SWITCH SPECIFICATIONS table.
NEUTRAL/START SWITCH SPECIFICATIONS
| Gearshift Position | Terminals | |
|---|---|---|
| 2VZ-FE | ||
| "R" | RL & C | |
| "N" | NL & C | |
| "2" | 2L & C | |
| "L" | LL & C | |
| 3S-FE | ||
| "N" | NL & C | |
| "2" | 2L & C | |
| "L" | LL & C | |
