Ecu Wiring Connector Resistances

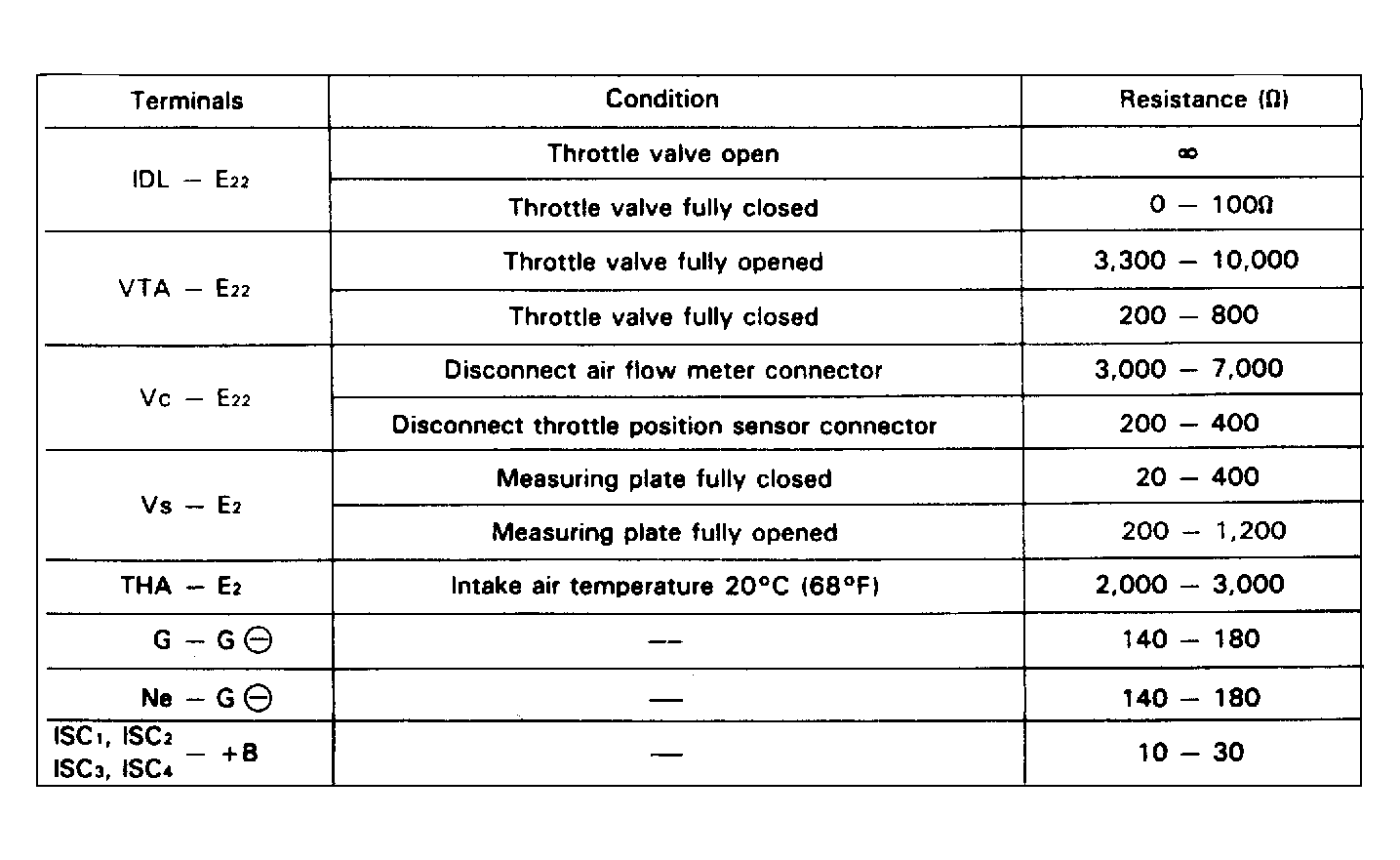

Fig 1: ECU Wiring Connector Resistances
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
