No. 1 Test, Code 11, Ecu (+B) Circuit

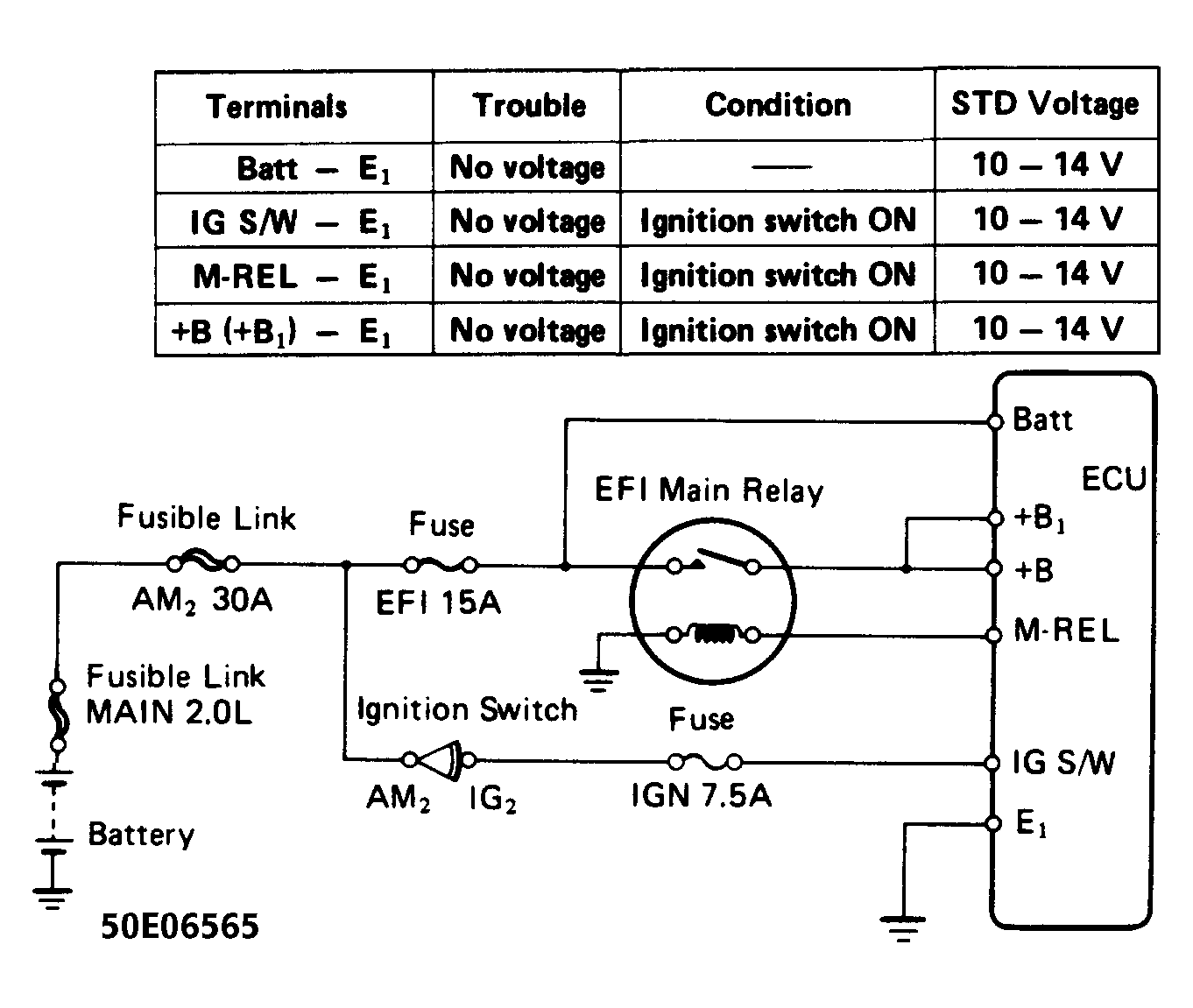

Fig 1: No. 1 Test, Code 11 Schematic, ECU (+B) Circuit
G50E06565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

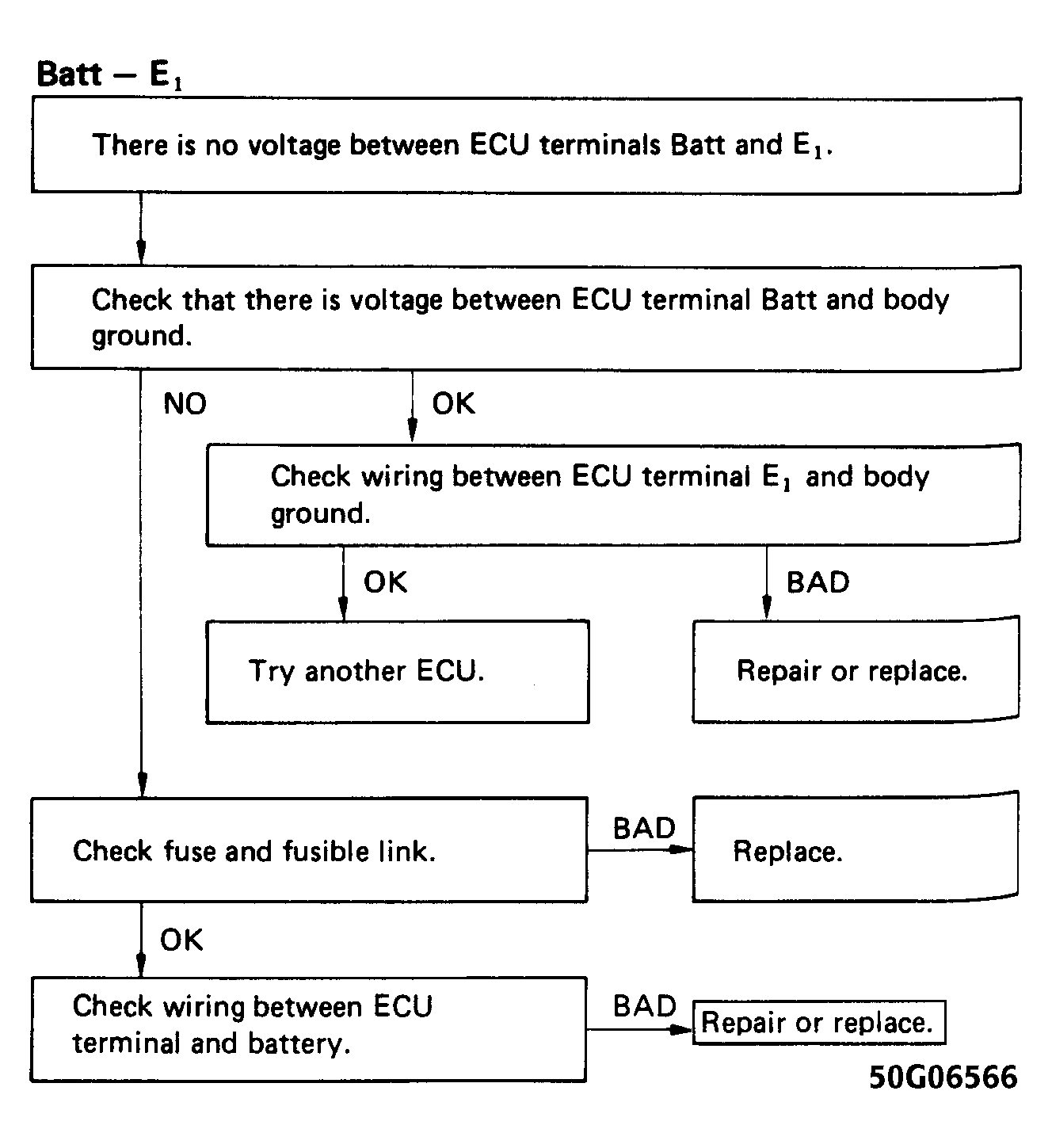

Fig 2: No. 1 Test, Code 11, ECU (+B) Circuit (1 Of 4)
G50G06566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

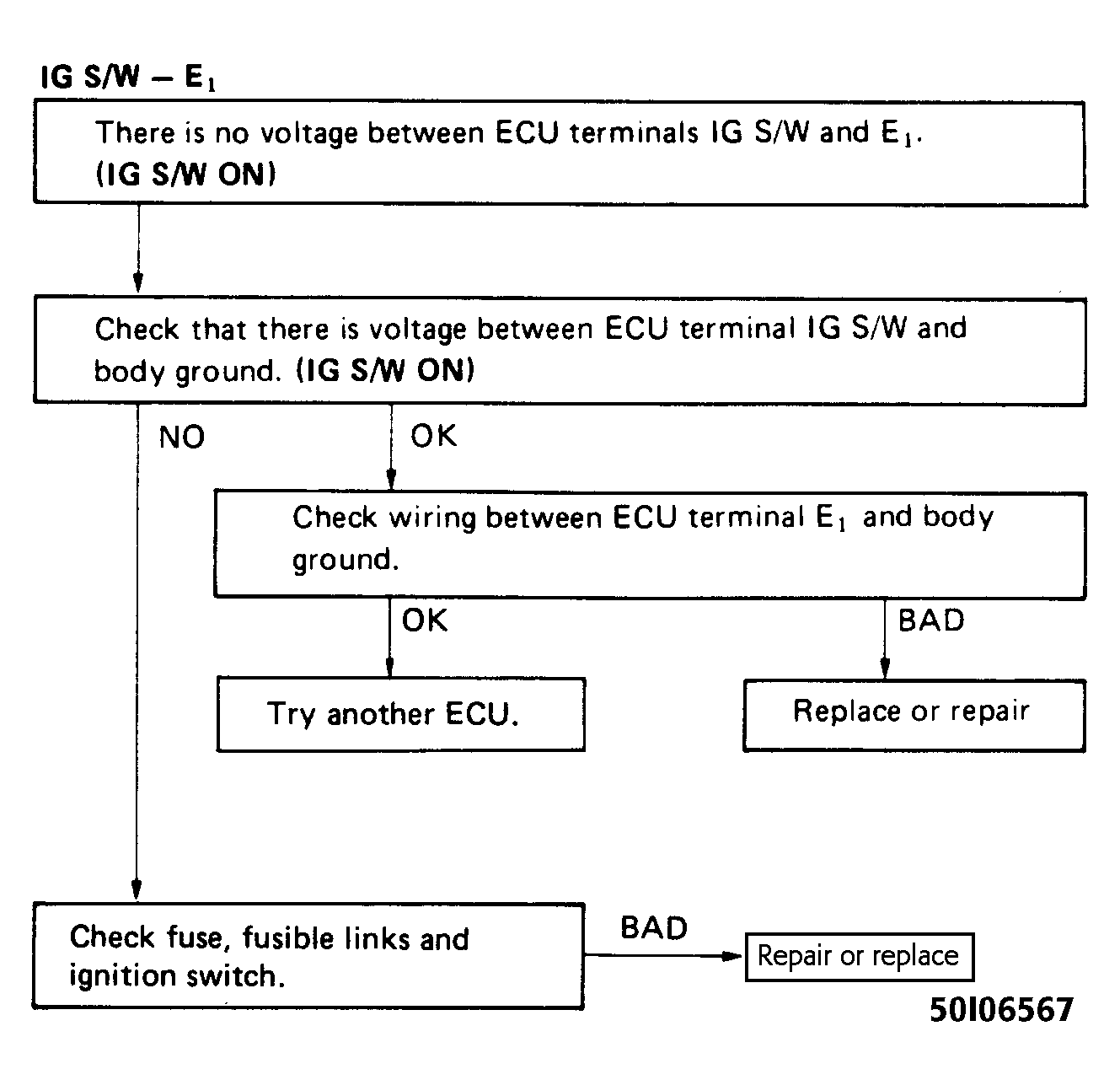

Fig 3: No. 1 Test, Code 11, ECU (+B) Circuit (2 Of 4)
G50I06567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

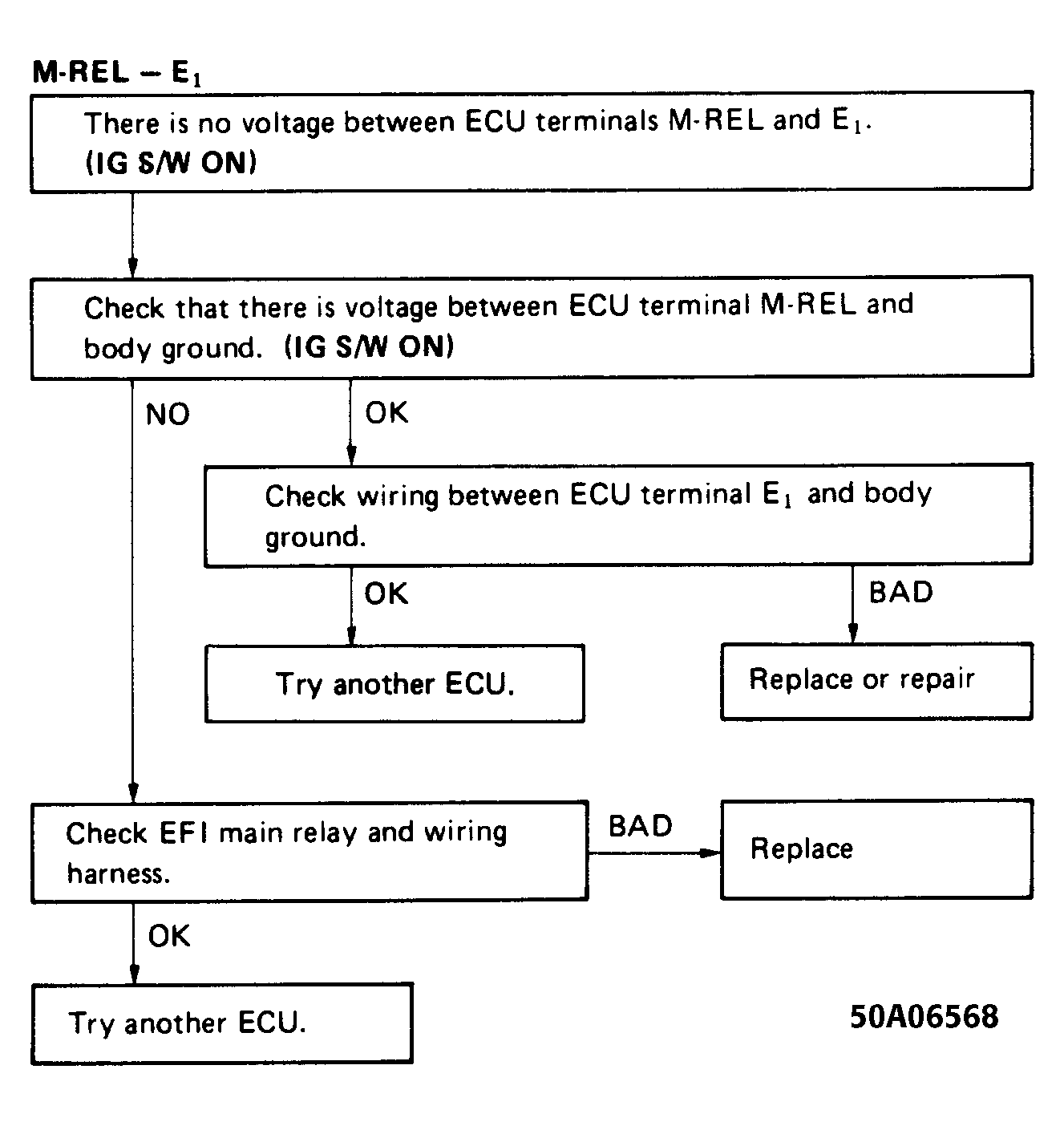

Fig 4: No. 1 Test, Code 11, ECU (+B) Circuit (3 Of 4)
G50A06568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

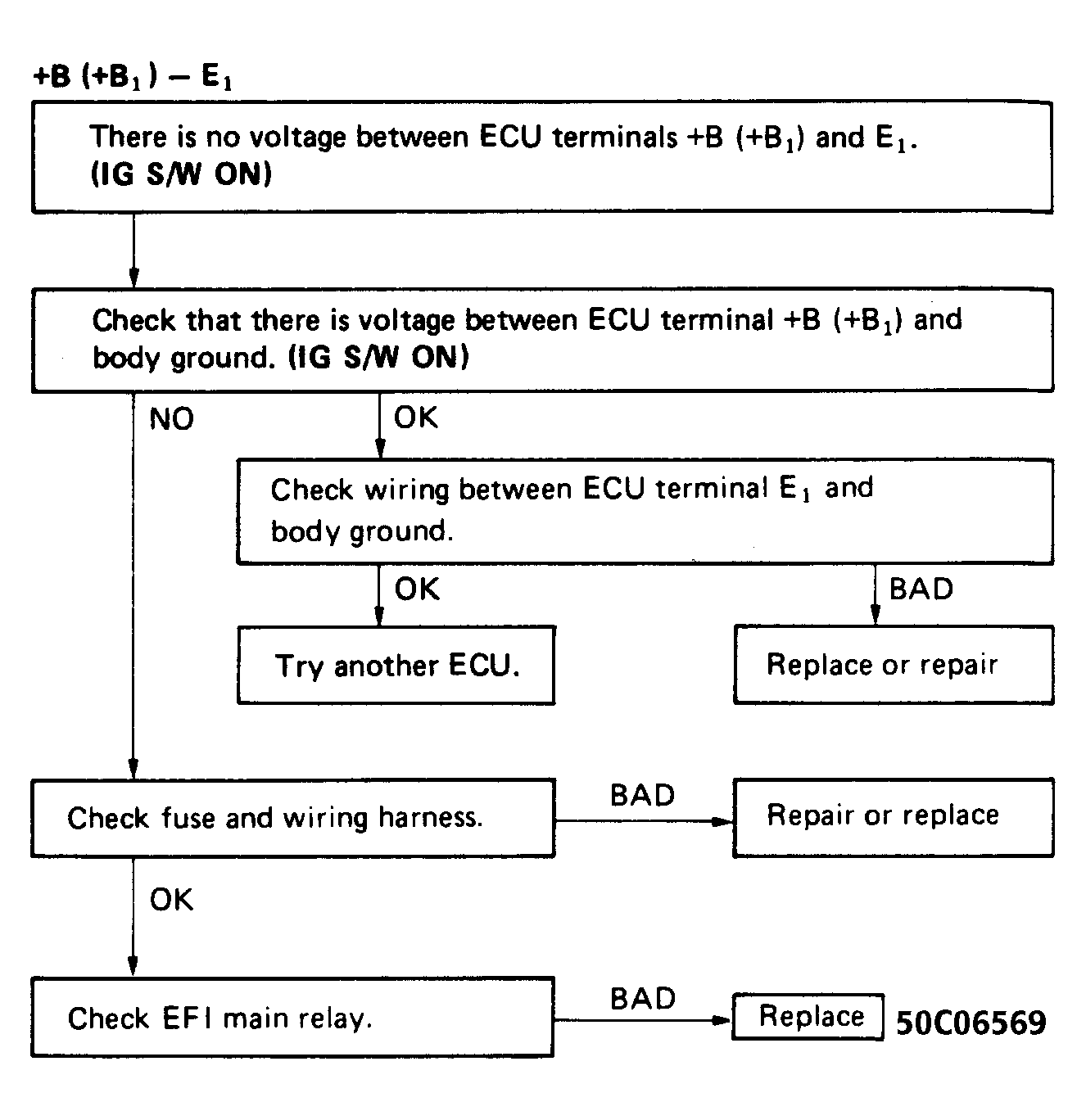

Fig 5: No. 1 Test, Code 11, ECU (+B) Circuit (4 Of 4)
G50C06569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
